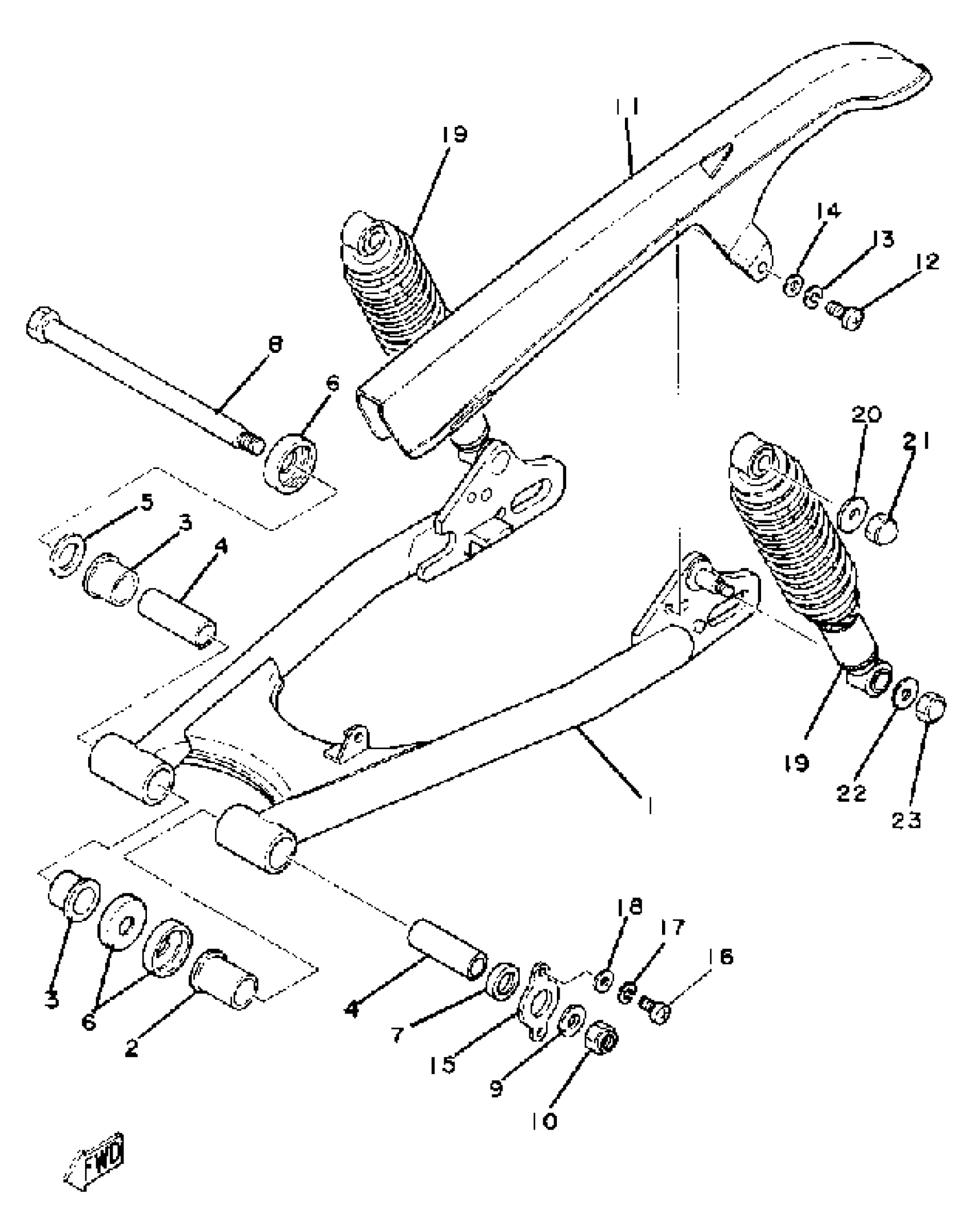

Yamaha SR250J (SR250J) 1982 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

3Y6-22110-01-33

Unavailable

2

BUSH

3Y1-22184-01-00

$31.85

3

BUSH 1

3Y1-22123-01-00

Unavailable

4

BUSH 2

3Y1-22124-01-00

Unavailable

5

SHIM,REAR ARM

240-22127-00-00

$5.36

6

COVER, THRUST

322-22128-01-00

$28.40

7

OIL SEAL (20.9X28X4-1W1)

93109-22019-00

$11.88

8

SHAFT, PIVOT

2N6-22141-00-00

Unavailable

9

WASHER, PLATE (3X3)

90201-15797-00

$5.86

10

NUT, SELF-LOCKING (1J7)

90185-14070-00

$9.76

11

CHAIN CASE ASSY

3Y6-22310-01-00

Unavailable

12

SCREW, PAN

98507-06014-00

$5.76

13

WASHER, SPRING

92995-06100-00

$2.95

14

WASHER, PLATE (4L0)

90201-062A8-00

$5.80

15

PLATE

3Y1-21329-00-00

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

17

WASHER, SPRING

92995-06100-00

$2.95

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

SHOCK ABSORBER ASSY, REAR

3Y6-22210-00-00

Unavailable

20

WASHER PLATE 341222430000

90201-10142-00

Unavailable

21

NUT, CAP (371)

90176-10009-00

Unavailable

22

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

23

NUT, CROWN(3BM)

90176-10073-00

Unavailable
