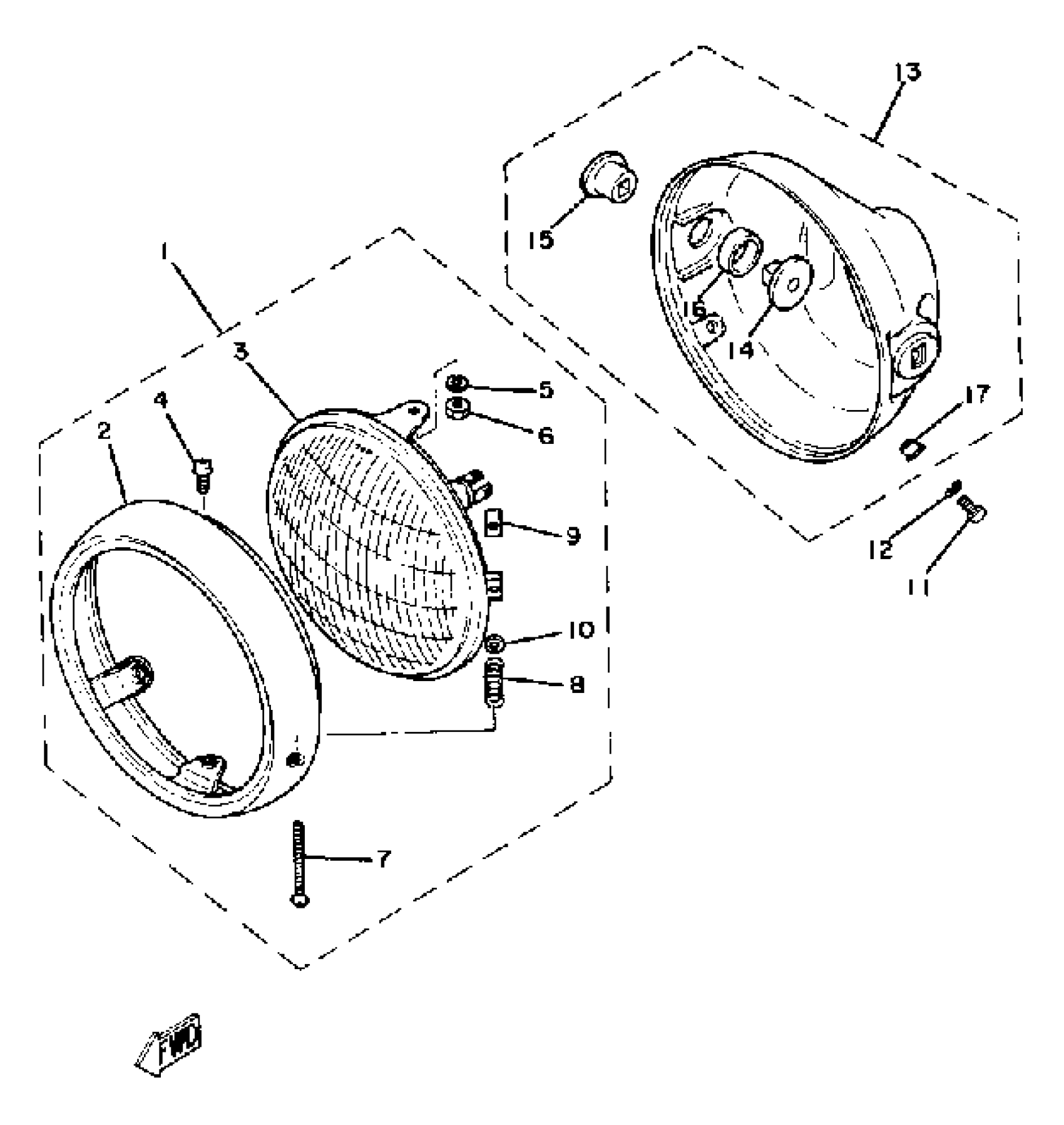

Yamaha SR250J (SR250J) 1982 HEADLIGHT Diagram

HEADLIGHT UNIT ASSEMBLY

3Y6-84310-60-00

Unavailable

RIM, HEAD LAMP

1L9-84315-60-00

Unavailable

. LENS ASSEMBLY

3Y6-84320-60-00

Unavailable

SCREW PAN HEAD

98580-06010-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

NUT, HEXAGON

95380-06600-00

Unavailable

SCREW, RIM ADJUSTING

4KG-84331-00-00

$7.99

SPRING,SCREW

3AA-84332-00-00

Unavailable

NUT, ADJUSTING

5PX-84334-00-00

$6.99

WASHER, PLAIN (646)

92990-04600-00

$5.99

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

BODY ASSY

3Y6-84330-00-00

Unavailable

. COLLAR, BODY FTNG

1L9-84338-60-00

Unavailable

. DAMPER, HEADLIGHT 1

1L9-84366-61-00

Unavailable

. DAMPER, HEADLIGHT 2

1L9-84367-61-00

Unavailable

. SPACER

1L9-84327-60-00

Unavailable
