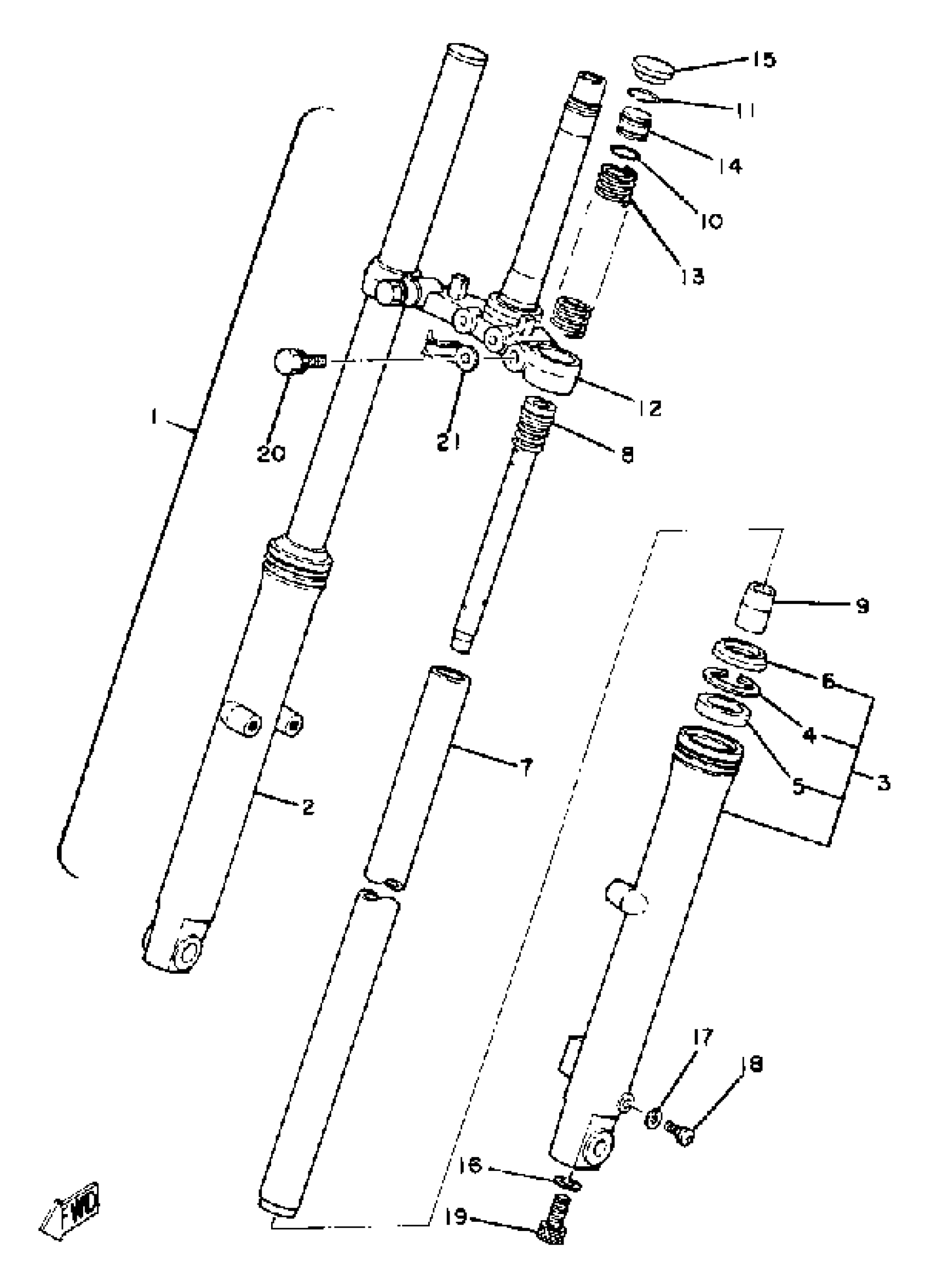

Yamaha SR250J (SR250J) 1982 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3Y6-23100-00-00)

Unavailable

2

OUTER TUBE COMP (R.H)

3Y6-23136-00-38

Unavailable

3

OUTER TUBE COMP (L.H)

3Y6-23126-00-38

Unavailable

4

RING, SNAP

15E-23153-00-00

Unavailable

5

OIL SEAL

2K5-23145-00-00

Unavailable

6

DUST SEAL

3Y6-23144-00-00

Unavailable

7

DUST SEAL

3Y6-23144-00-00

Unavailable

8

. CYLINDER, FRT FORK

55F-23170-00-00

Unavailable

9

SPINDLE

2K5-23173-00-00

$35.99

10

. GASKET

3Y6-23114-00-00

Unavailable

11

.. CIRCLIP

3Y6-23183-00-00

Unavailable

12

. UNDER BRACKET

3Y8-23340-G0-R4

Unavailable

13

SPRING, FRONT FORK

(3Y6-23141-00-00)

Unavailable

14

. BOLT, CAP

3Y6-23111-00-00

Unavailable

15

. CAP, FRONT FORK

3Y6-23168-00-00

Unavailable

16

GASKET

509-23158-L0-00

Unavailable

17

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

18

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

20

BOLT 1

(1M3-23346-00-00)

Unavailable

21

. HOLDER, CABLE 1

260-23318-40-00

Unavailable
