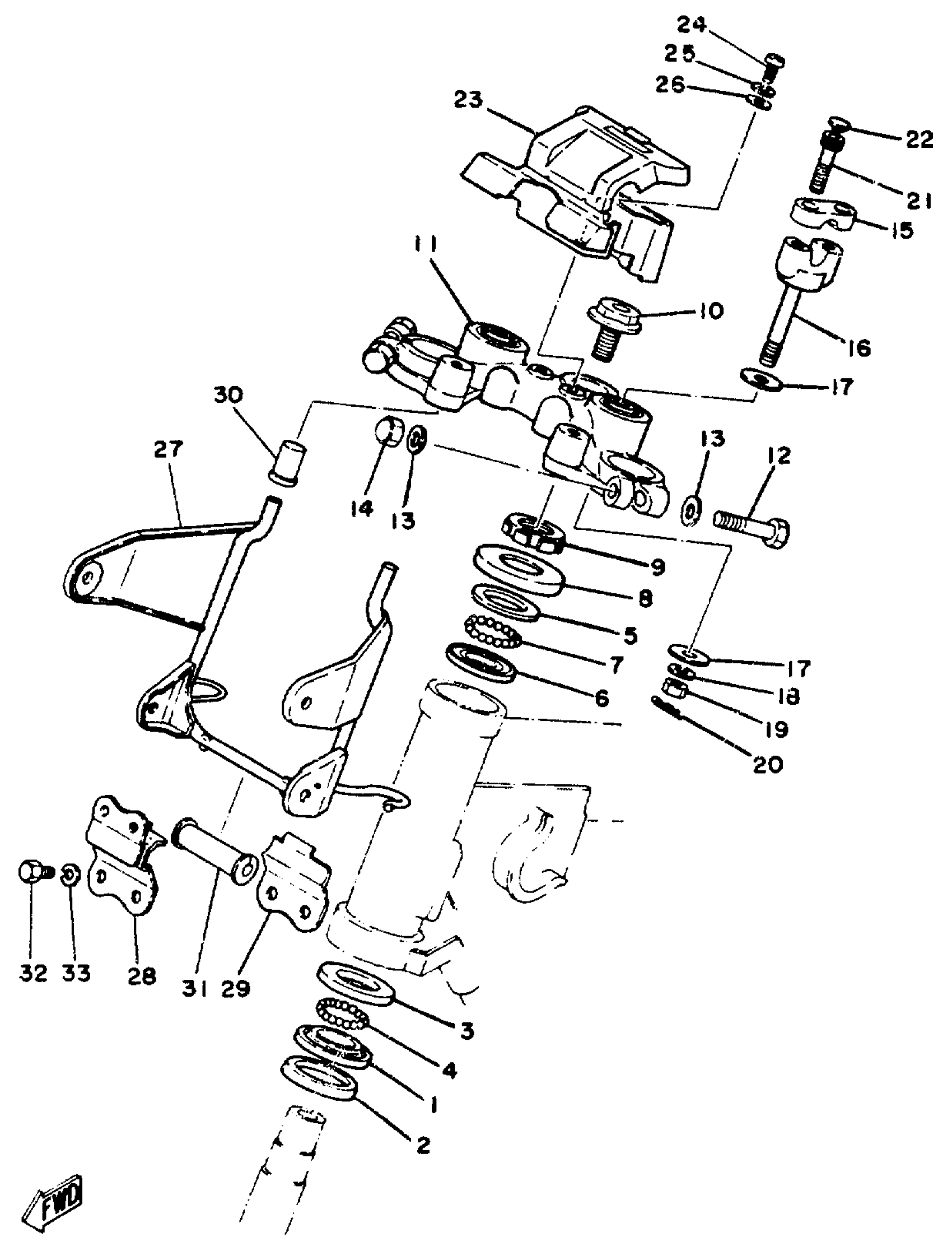

Yamaha SR250H (SR250H) 1981 STEERING Diagram
#
Description
Price
6
RACE,BALL 2
4FP-F3412-10-00
Unavailable
11
CROWN, HANDLE
3Y6-W2341-00-98
Unavailable
13
.. WASHER, PLATE
92990-08600-00
Unavailable
16
HOLDER, HANDLE LOWER
3Y6-23442-00-98
Unavailable
17
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
18
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
19
NUT (682)
95380-10700-00
Unavailable
20
CLIP 136253750000
90468-12006-00
Unavailable
21
BOLT, SOCKET
91317-08030-00
Unavailable
22
CAP, BOLT (371,447)
341-23469-00-00
Unavailable
23
COVER HANDLE ASSY
3Y6-26203-00-00
Unavailable
24
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
WASHER, PLAIN (646)
92990-05600-00
Unavailable
27
STAY, HEADLIGHT
3Y8-23174-00-00
Unavailable
28
BRKT, HDLT STAY 1
(3Y6-23175-00-00)
Unavailable
29
BRKT, HDLT STAY 2
(3Y6-23176-00-00)
Unavailable
30
DAMPER 1
3Y6-2317J-00-00
Unavailable
31
DAMPER 1
3Y6-2317K-00-00
Unavailable
32
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
