1981 Yamaha SR250H (SR250H) Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 1981 Yamaha SR250H (SR250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

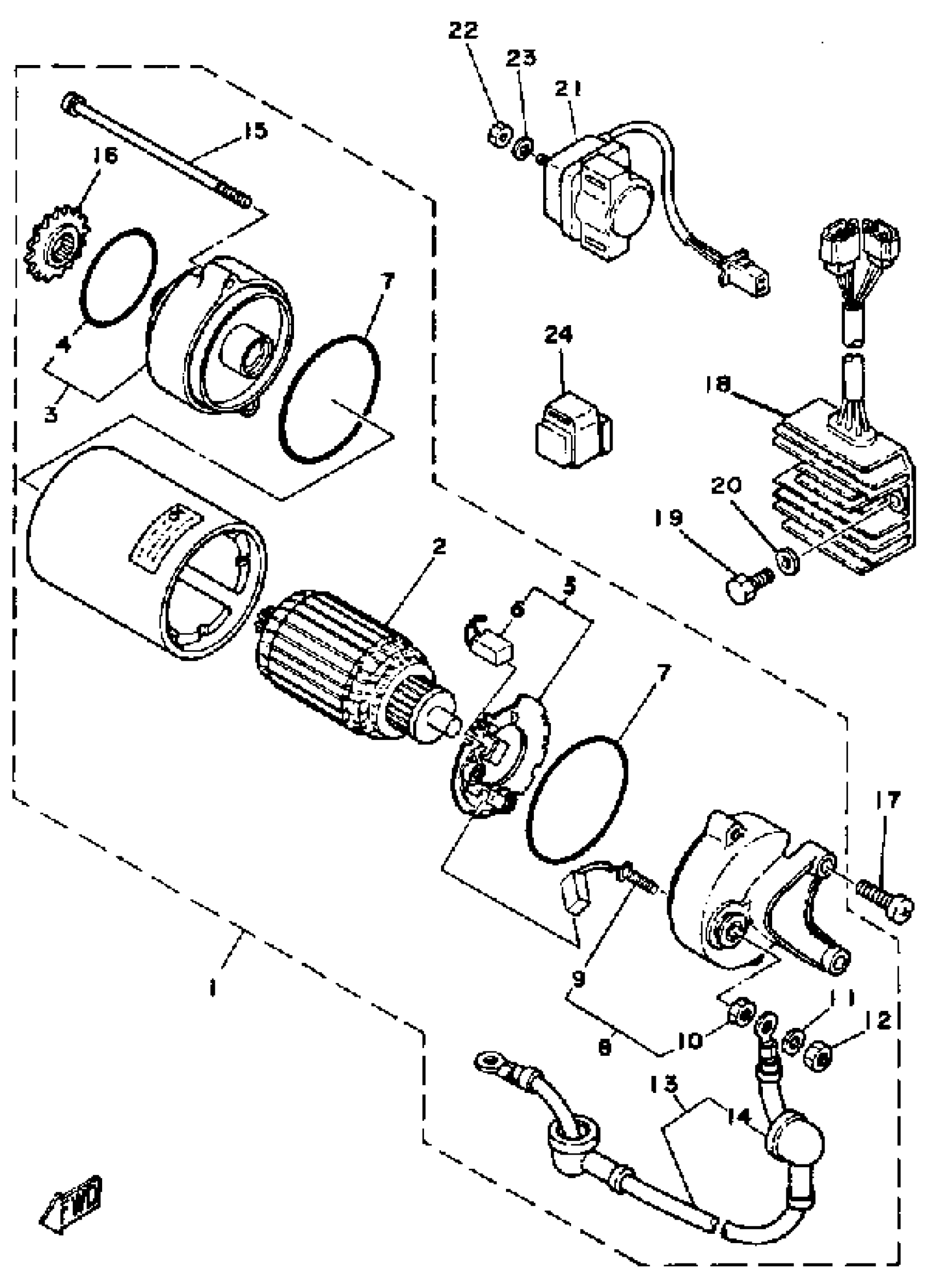

1981 Yamaha SR250H (SR250H) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR UNIT

3Y6-81890-00-00

—
Out of stock

2

ARMATURE ASSY

4H7-81850-00-00

1
Out of stock

3

FRONT BRACKET ASSEMBLY

(3Y6-81830-00-00)

1
Out of stock

4

O-RING

4H7-81847-01-00

—
Out of stock

5

BRUSH HOLDER ASSY

4H7-81840-01-00

1
Out of stock

6

BRUSH, STARTER

4H7-81811-00-00

1
Out of stock

7

O-RING

4H7-81844-00-00

—
Out of stock

8

REAR BRACKET ASSEMBLY

(3Y6-81820-00-00)

1
Out of stock

9

BRUSH SUB-ASSY, STARTOR

2JN-81818-50-00

1
Out of stock

10

NUT

4H7-81872-00-00

—
Out of stock

11

WASHER, SPRING

92995-06100-00

1
Out of stock

12

NUT, HEXAGON

95380-06600-00

1
Out of stock

13

WIRE, STARTER

(3Y6-81815-00-00)

1
Out of stock

14

CAP

(4H7-81871-00-00)

1
Out of stock

15

BOLT

4H7-81826-01-00

—
Out of stock

16

. GEAR, STARTING MTR

3Y6-15511-00-00

1
Out of stock

17

SCREW, PAN HEAD (76T)

98517-06025-00

—
Out of stock

18

RECTIFIER & REGULATOR ASSY

3Y6-81960-01-00

—
Out of stock

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

20

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

21

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

1
Out of stock

22

NUT(650)

95380-06700-00

—
Out of stock

23

WASHER, SPRING

92995-06100-00

1
Out of stock

24

RELAY ASSY

12R-81950-02-00

—
Out of stock
