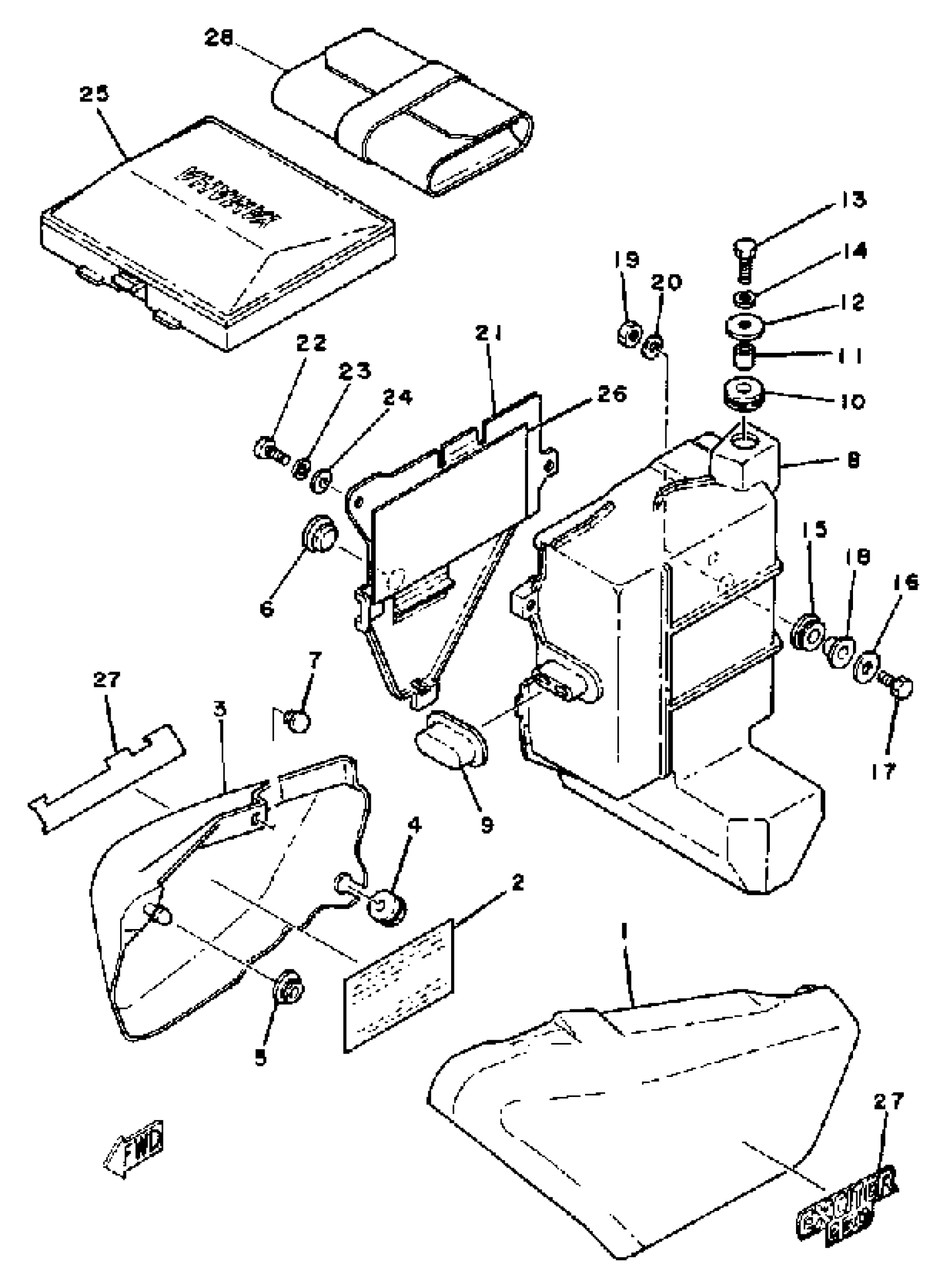

Yamaha SR250H (SR250H) 1981 SIDE COVER TOOL Diagram

#

Description
Price

1

COVER, SIDE 1

3Y6-21711-00-63

Unavailable

1

COVER, SIDE 1

3Y6-21711-00-H9

Unavailable

2

PLATE, SPEC

(3Y1-21683-10-00)

Unavailable

3

COVER SIDE 2

3Y6-21721-00-63

Unavailable

3

COVER, SIDE 2

3Y6-21721-00-H9

Unavailable

4

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

5

GROMMET(41Y)

90480-01401-00

$8.49

6

PAD, BATTERY

371-82121-00-00

$8.99

7

DAMPER, SIDE COVER

1J7-21717-00-00

$6.99

8

BOX

3Y6-21170-00-00

Unavailable

9

DAMPER

3Y6-21746-00-00

Unavailable

10

GROMMET (2N3)

90480-16233-00

$8.49

11

COLLAR (90387-066J9)

90387-064W1-00

Unavailable

12

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

13

BOLT(3DM)

97024-06020-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

GROMMET

90480-13014-00

Unavailable

16

WASHER, PLATE

90201-06380-00

Unavailable

17

BOLT(3DM)

97024-06020-00

$8.49

18

COLLAR (3L6)

90387-06737-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

21

LID

3Y6-28185-00-00

Unavailable

22

SCREW, PAN

98507-06014-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLATE

90201-06049-00

Unavailable

25

BOX

3Y6-2177A-00-00

Unavailable

26

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

27

EMBLEM 1

(3Y6-21781-00-00)

Unavailable

28

TOOL KIT

5A8-W2810-01-00

Unavailable
