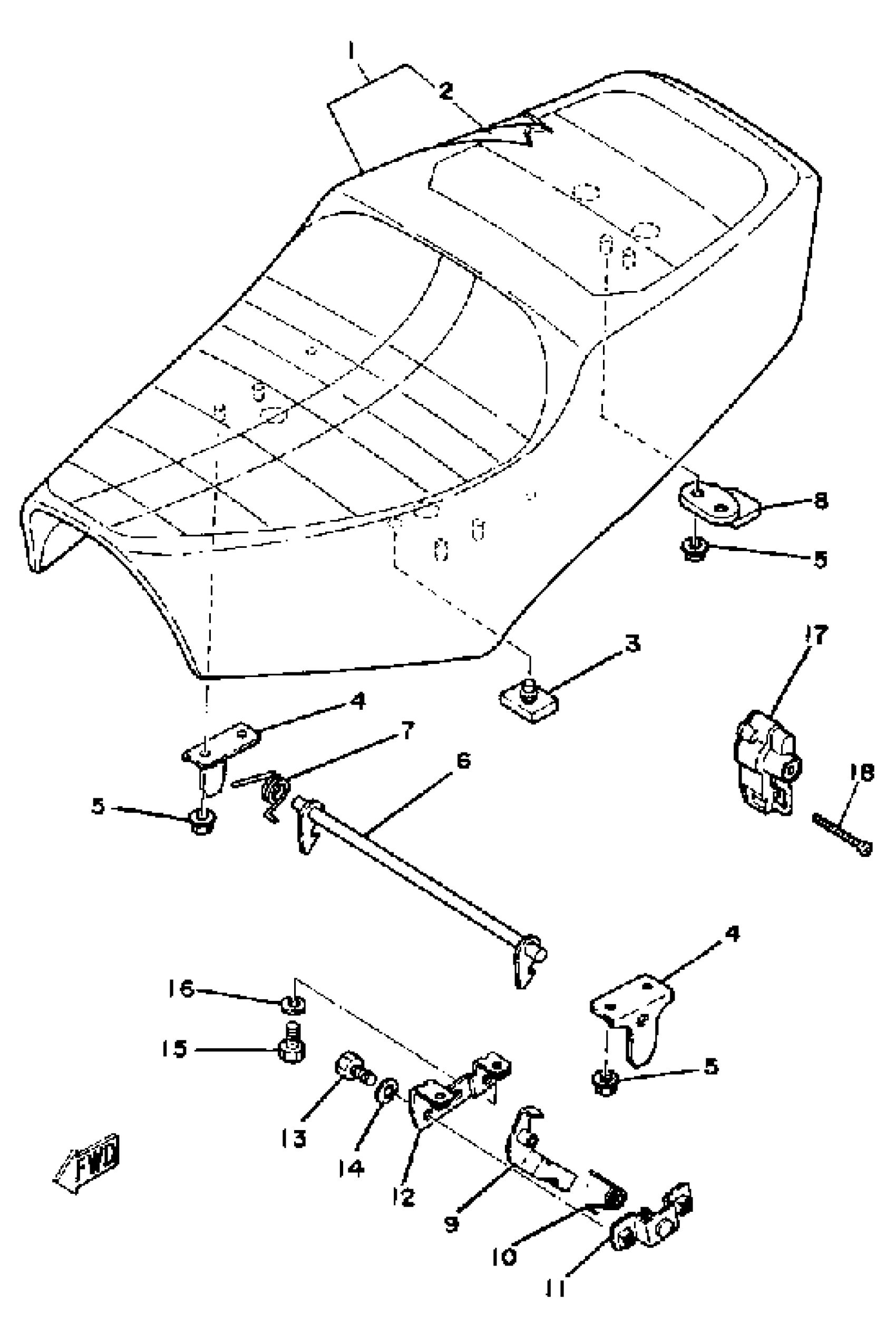

Yamaha SR250H (SR250H) 1981 SEAT Diagram
#
Description
Price
1
DOUBLE SEAT ASSY
3Y6-W2472-00-00
Unavailable
2
. COVER, DOUBLE SEAT
3Y6-24731-00-00
Unavailable
4
BRACKET, SEAT
3Y6-24738-00-00
Unavailable
6
HOOK, SEAT
3Y6-24754-00-00
Unavailable
8
BRACKET, SEAT
2Y0-24748-00-00
Unavailable
9
LEVER, SEAT
(3Y6-24776-00-00)
Unavailable
11
BRACKET, SEAT
(3Y6-24718-00-00)
Unavailable
12
BRACKET, SEAT LVR 1
(3Y6-2475H-00-00)
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
16
WASHER, SPRING
92995-06100-00
Unavailable
17
SEAT LOCK ASSY
3Y6-24705-00-00
Unavailable
18
SCREW, FLAT
98707-06030-00
Unavailable
