1981 Yamaha SR250H (SR250H) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1981 Yamaha SR250H (SR250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

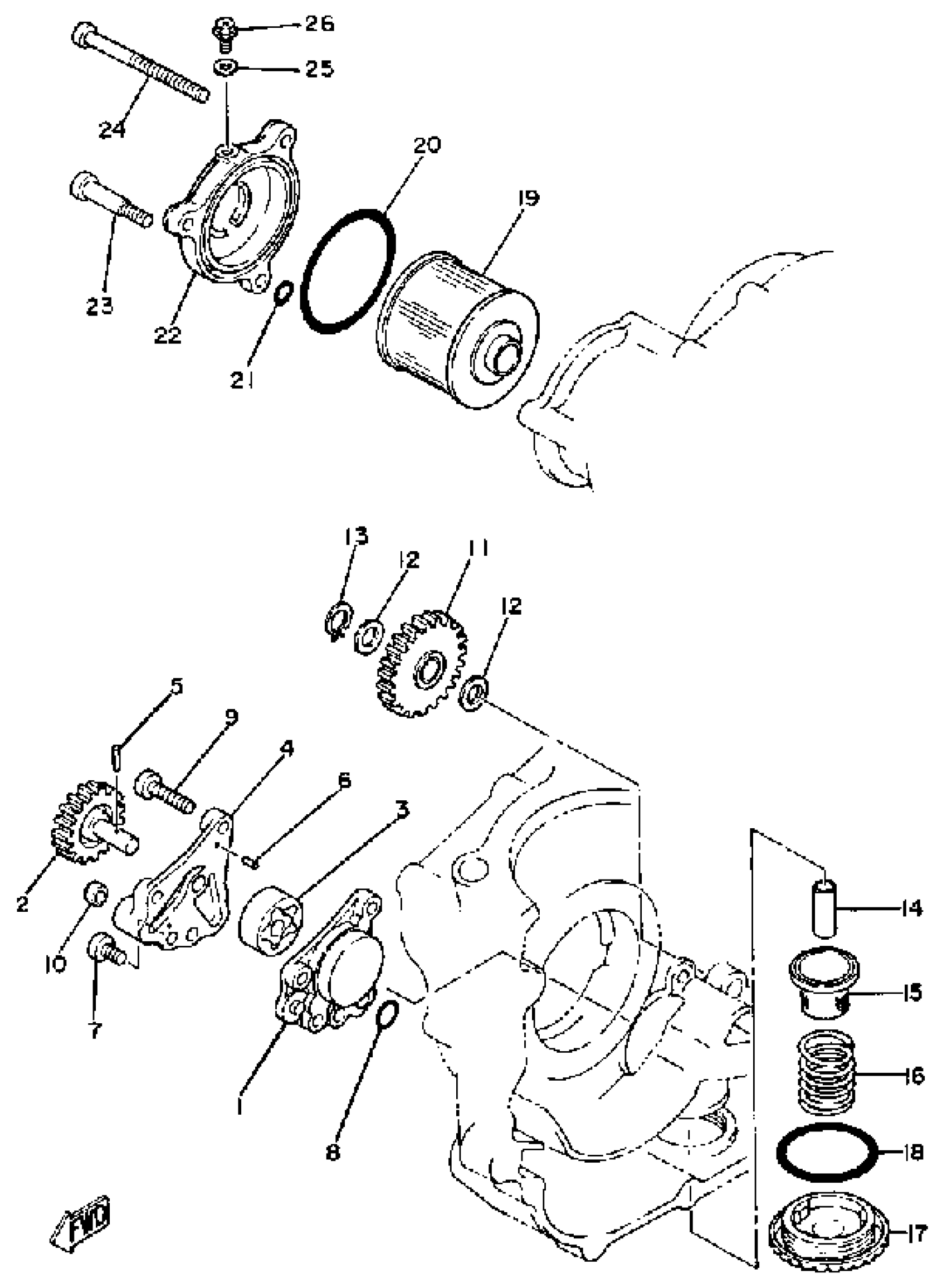

1981 Yamaha SR250H (SR250H) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, ROTOR 001

(3Y1-13336-00-00)

1
Out of stock

1

OIL PUMP ASY

3Y6-13300-01-00

1
Out of stock

2

GEAR, PUMP DRIVEN 2 001

(3Y6-13326-00-00)

1
Out of stock

2

GEAR, PUMP DRIVEN 2

3Y6-13326-10-00

1

$9.89

In stock

3

ROTOR ASSY 1

3Y1-13310-01-00

1

$61.42

In stock

3

OIL PUMP ASY

3Y6-13300-01-00

1
Out of stock

4

OIL PUMP ASY

3Y6-13300-01-00

1
Out of stock

5

PIN,DOWEL (137)

93603-12030-00

1

$1.88

In stock

6

PIN, DOWEL

93603-07073-00

1

$5.20

In stock

7

SCREW, PAN

98507-06014-00

1

$6.18

In stock

8

O-RING (611)

93210-10096-00

1

$3.11

In stock

9

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

10

GASKET (3Y1)

90430-06156-00

1

$3.38

In stock

11

GEAR, OIL PUMP IDLE

3Y1-13341-00-00

1

$28.86

In stock

12

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

13

CIRCLIP(10W)

99009-10400-00

—

$3.91

In stock

14

PIPE, OIL 1

2XK-13416-00-00

—

$6.62

In stock

15

STRAINER, OIL

51Y-13411-00-00

—

$31.03

In stock

16

SPRING, COMPRESSION (3Y1)

90501-18576-00

—

$6.17

In stock

17

PLUG, DRAIN

3Y1-15351-01-00

—
Out of stock

18

O-RING(2HF)

93210-40745-00

—

$11.49

In stock

19

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

—

$12.82

In stock

20

O-RING (583 OIL CLEANER)

93210-64297-00

—
Out of stock

21

O-RING

93210-07438-00

—

$6.17

In stock

22

COVER, ELEMENT

2J2-13447-00-00

—
Out of stock

23

BOLT (583 OIL DRAIN)

90109-06419-00

—

$6.17

In stock

24

SCREW, PAN

98504-06090-00

—

$2.72

In stock

25

GASKET

90430-05126-00

1
Out of stock

26

SCREW (583)

90149-05110-00

—

$6.88

In stock
