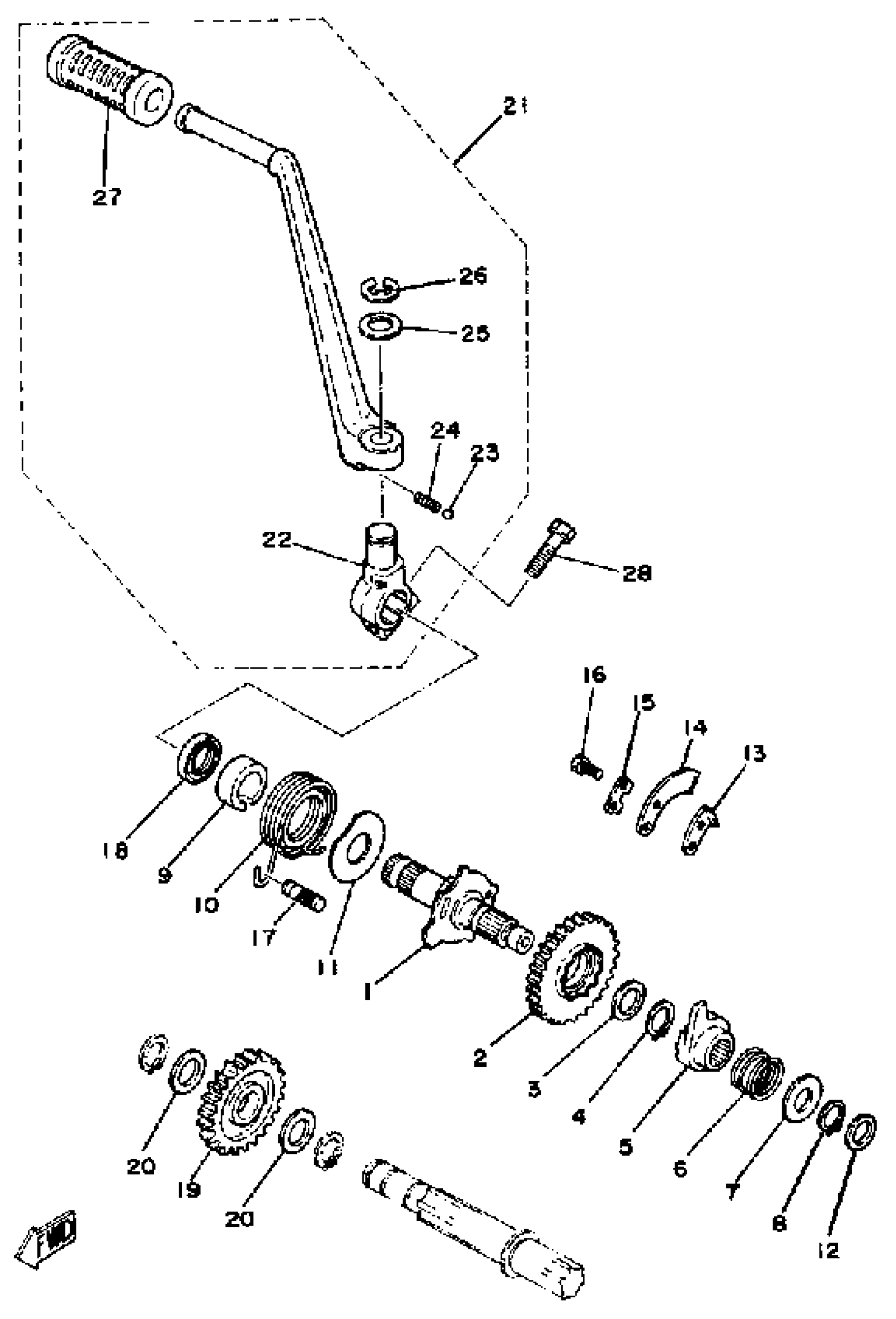

Yamaha SR250H (SR250H) 1981 KICK STARTER ALTERNATE PARTS Diagram

#

Description
Price

1

KICK AXLE ASSY

3Y1-15660-00-00

$74.99

2

GEAR, KICK

30X-15641-01-00

$82.99

3

WASHER, PLATE (2K7)

90201-20685-00

$7.49

4

CIRCLIP (525)

93410-20038-00

$3.76

5

WHEEL, RATCHET

3Y1-15671-00-00

Unavailable

6

SPRING COMPRESSION168156750000

90501-16107-00

Unavailable

7

WASHER, PLAIN (1JL)

90201-155K6-00

Unavailable

8

CIRCLIP(1AR)

99009-15400-00

$8.49

9

GUIDE, SPRING

3Y6-15664-00-00

Unavailable

10

SPRING, TORSION

90508-324B5-00

Unavailable

11

COVER,SPRING

278-15676-00-00

$5.49

12

WASHER (566)

90201-15701-00

$8.49

13

STOPPER

2NX-15668-00-00

$24.99

14

GUIDE, RATCHET WHL

(3Y6-15674-00-00)

Unavailable

15

WASHER, LOCK

214-15686-00-00

$7.99

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

STOPPER, KICK SPRING

248-15668-00-00

Unavailable

18

OIL SEAL (20X30X7-371)

93102-20108-00

Unavailable

19

GEAR, KICK IDLE

3Y1-15651-00-00

Unavailable

20

WASHER PLATE 328171160000

90201-20276-00

Unavailable

21

KICK CRANK ASY

1L9-15620-01-93

Unavailable

22

BOSS, KICK CRANK

583-15621-00-00

Unavailable

23

BALL (12R)

93507-32031-00

Unavailable

24

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

25

WASHER (3XVC)

90201-153A1-00

Unavailable

26

CIRCLIP

99006-10600-00

Unavailable

27

COVER, KICK LEVER

156-15618-01-00

Unavailable

28

BOLT, HEXAGON

97013-08030-00

Unavailable
