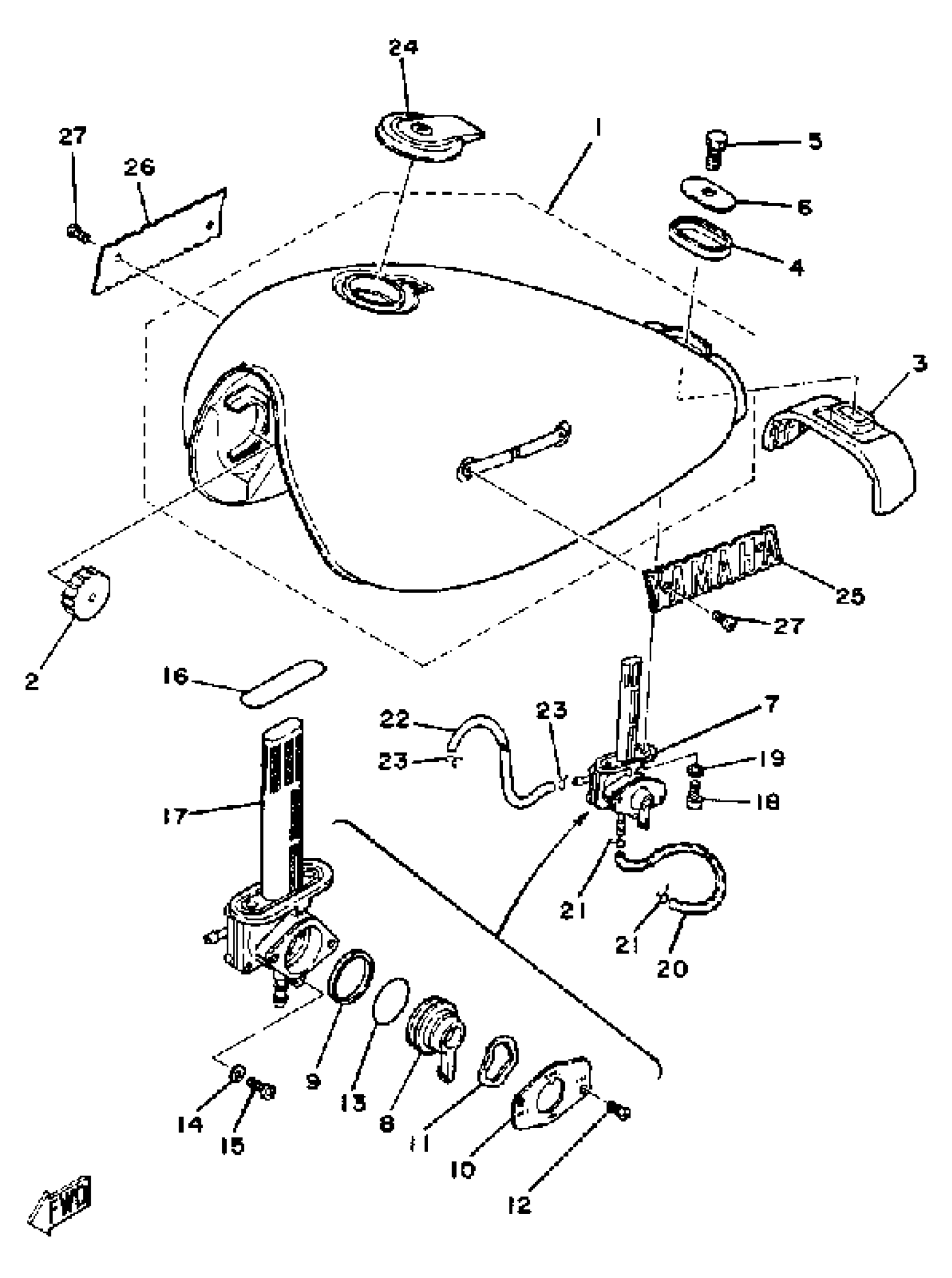

Yamaha SR250H (SR250H) 1981 FUEL TANK Diagram

FUEL TANK

3Y6-24110-10-02

Unavailable

FUEL TANK

3Y6-24110-00-H9

Unavailable

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

DAMPER, LOCATING 2

(3Y6-24182-01-00)

Unavailable

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

BOLT(62E)

97013-08012-00

Unavailable

WASHER, SPECIAL

3Y6-24186-00-00

$3.48

FUEL COCK ASSY 1

3Y6-24500-03-00

Unavailable

LEVER, COCK

(3Y6-24524-00-00)

Unavailable

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

PLATE, LVR FITTING

(3Y6-24525-00-00)

Unavailable

WASHER, WAVE

10L-24518-00-00

$6.99

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

O-RING, FUEL COCK

3H3-24534-00-00

$14.49

. GASKET

3H3-24522-00-00

Unavailable

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

O-RING

2W6-24512-00-00

Unavailable

NET, FILTER 1

3Y1-24514-00-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

PIPE, FUEL 1

3Y6-24311-00-00

Unavailable

CLIP

90467-100A1-00

Unavailable

HOSE

(90445-09499-00)

Unavailable

CLIP 101235600

90467-08003-00

Unavailable

CAP ASSY

4X7-24602-10-00

Unavailable

EMBLEM 1

3Y6-24161-00-00

Unavailable

EMBLEM 2

3Y6-24162-00-00

Unavailable

SCREW (2F0)

90152-04006-00

Unavailable
