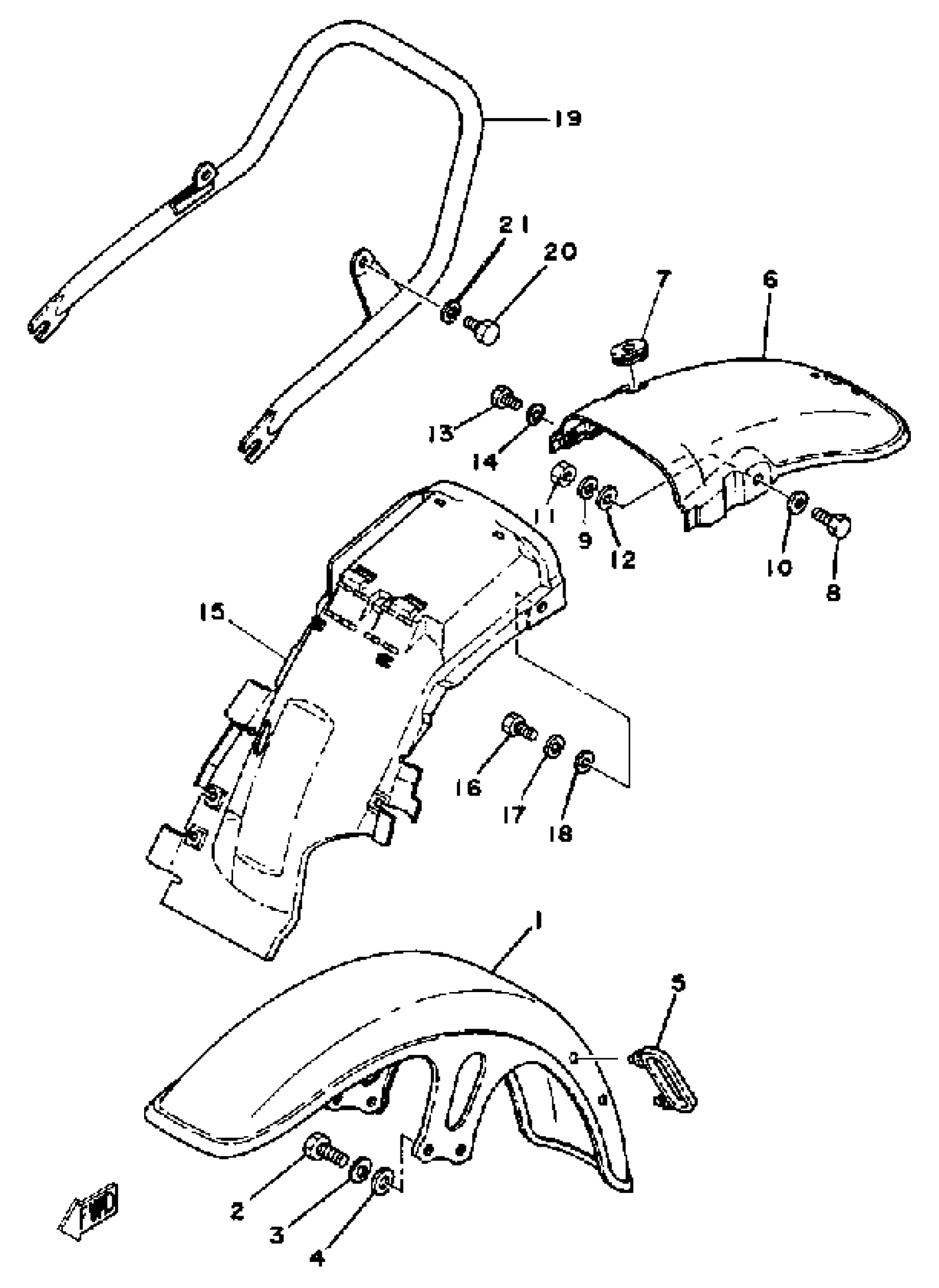

Yamaha SR250H (SR250H) 1981 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3Y6-21511-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

WASHER, PLAIN

92990-08200-00

Unavailable

5

HOLDER, CABLE

3Y6-21518-00-00

Unavailable

6

REAR FENDER COMP.

3Y6-21610-00-93

Unavailable

7

GROMMET (438)

90480-15061-00

$8.49

8

BOLT, HEXAGON

97017-08025-00

$10.49

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

.. WASHER, PLATE

92990-08600-00

Unavailable

11

NUT(6L2)

95333-08600-00

$2.49

12

WASHER, PLAIN

92990-08200-00

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

WASHER, SPRING

92995-06100-00

Unavailable

15

GUARD, MUD

3Y6-21629-00-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLATE

90201-06380-00

Unavailable

19

STAY, REAR

3Y6-21645-00-00

Unavailable

20

BOLT, HEXAGON

97017-08016-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60
