Description

Price

1

CRANKCASE ASSEMBLY

99999-01670-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

COLLAR

90387-17009-00

$15.99

4

COLLAR (3Y1)

90387-16782-00

$4.99

5

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

6

SCREW, BIND (JH1)

98580-06560-00

Unavailable

7

CLAMP

90465-08060-00

Unavailable

8

CLAMP(51Y)

90465-08277-00

Unavailable

9

HOLDER, CLUTCH CABLE (3Y1-15441-010

31G-15441-00-00

Unavailable

10

SCREW, PAN

98507-06014-00

$8.49

11

PLUG STRAIGTSCREW 367185880000

90340-10003-00

$8.49

12

WASHER, PLATE(481)

90201-10118-00

Unavailable

13

PIPE, BREATHER 1

3Y6-11166-00-00

$9.99

14

CLIP (371)

90467-14015-00

$8.49

15

PLATE, BRNG COVER

(3Y1-15383-00-00)

Unavailable

16

SCREW, FLAT

98707-06014-00

Unavailable

17

PLUG, BLIND

3Y6-15167-00-00

Unavailable

18

PLATE, LOCK

3Y6-15144-00-00

Unavailable

19

WASHER, LOCK

214-15686-00-00

Unavailable

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

21

PIPE, BREATHER 2

371-11167-01-00

Unavailable

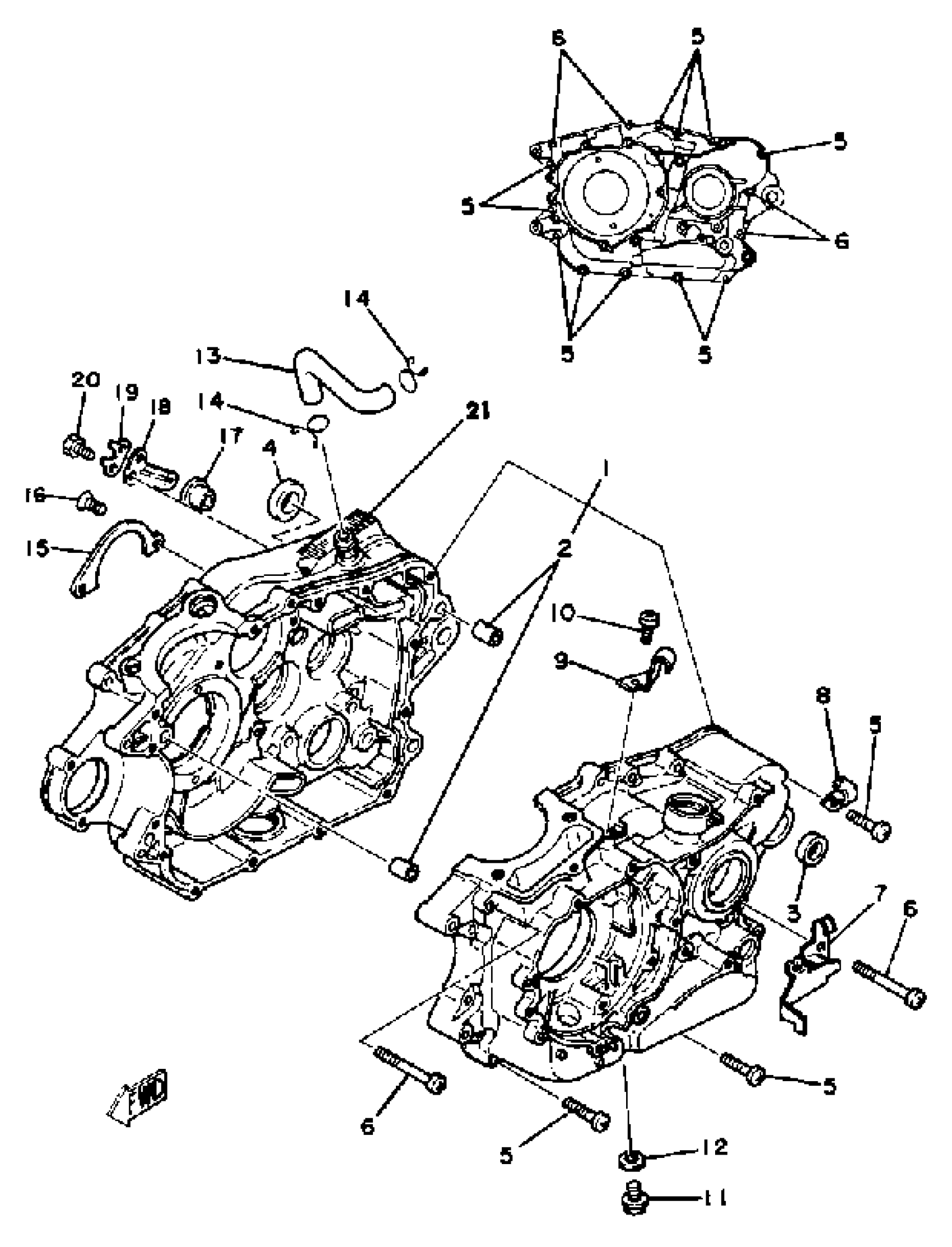

Yamaha SR250H (SR250H) 1981 CRANKCASE Diagram

CRANKCASE ASSEMBLY

PIN, DOWEL

COLLAR

COLLAR (3Y1)

SCREW, PAN HEAD(6E0)

SCREW, BIND (JH1)

CLAMP

CLAMP(51Y)

HOLDER, CLUTCH CABLE (3Y1-15441-010

SCREW, PAN

PLUG STRAIGTSCREW 367185880000

WASHER, PLATE(481)

PIPE, BREATHER 1

CLIP (371)

PLATE, BRNG COVER

SCREW, FLAT

PLUG, BLIND

PLATE, LOCK

WASHER, LOCK

BOLT, HEXAGON DEEP RECESS

PIPE, BREATHER 2
