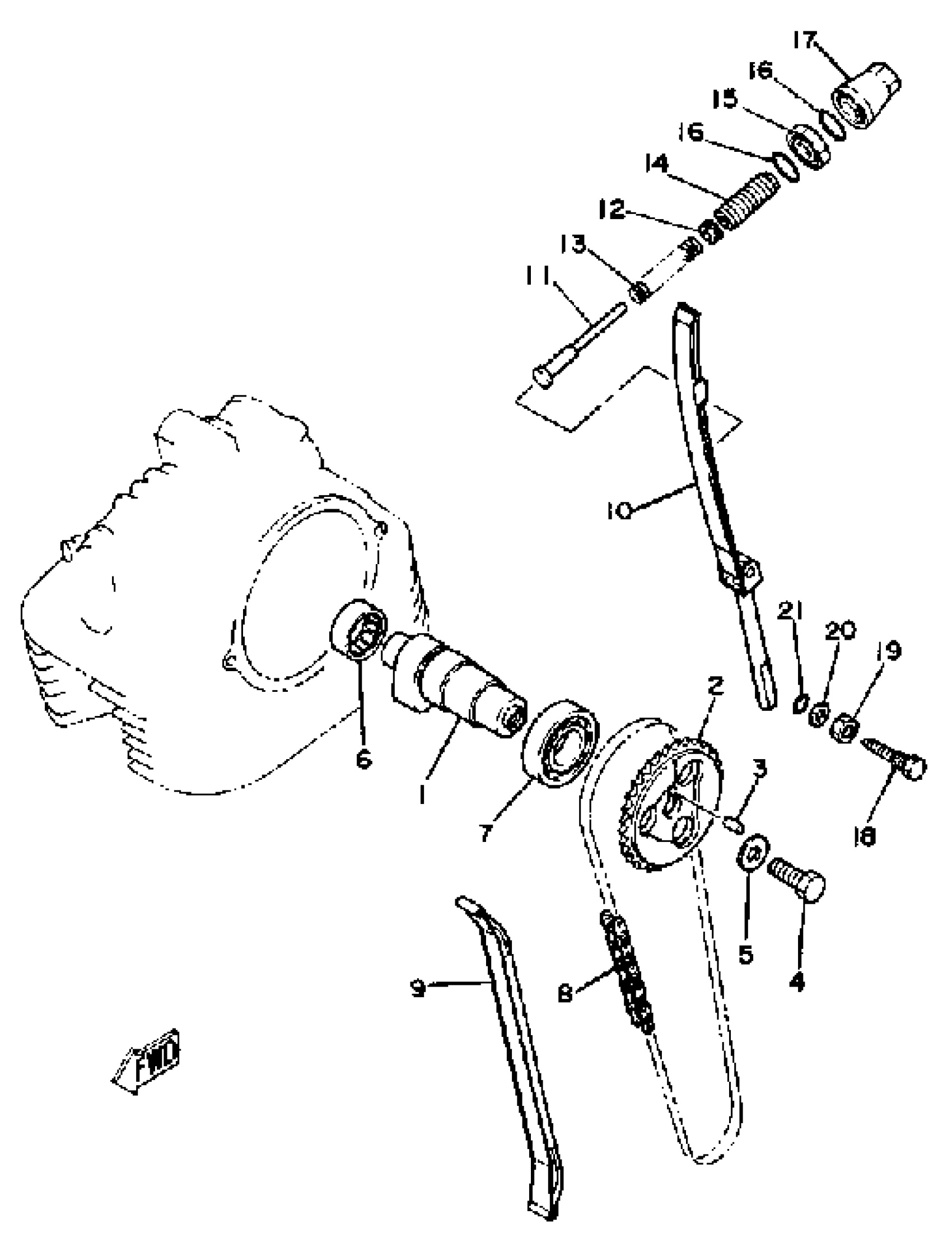

Yamaha SR250H (SR250H) 1981 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT (3Y1)

99999-01444-00

Unavailable

2

SPROCKET, CAM CHAIN

3Y1-12176-00-00

Unavailable

3

PIN,DOWEL (603)

93604-10011-00

$8.49

4

BOLT (583)

90101-10303-00

$9.49

5

WASHER, PLATE (3L6)

90201-10774-00

$9.49

6

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

$34.99

7

BEARING(1FF)

93306-00519-00

$36.99

8

CHAIN, CAM SHAFT (3Y1)

94500-02090-00

$68.99

9

GUIDE, STOPPER 1

3Y1-12231-01-00

$41.99

10

GUIDE, STOPPER 2

3Y1-12241-00-00

Unavailable

11

ROD, CHAIN TENSIONER

3Y1-12217-00-00

$5.49

12

DAMPER

3Y1-12232-00-00

Unavailable

13

SPRING, COMPRESSION (3Y1)

90501-10587-00

$7.49

14

SCREW

90149-14182-00

Unavailable

15

NUT (3Y1)

90179-14298-00

Unavailable

16

O-RING (26H)

93210-16629-00

Unavailable

17

CASE, CHAIN TENSIONER

3Y1-12212-00-00

Unavailable

18

BOLT

90109-08600-00

Unavailable

19

. NUT

95380-08700-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

O-RING (26H)

93210-06632-00

Unavailable
