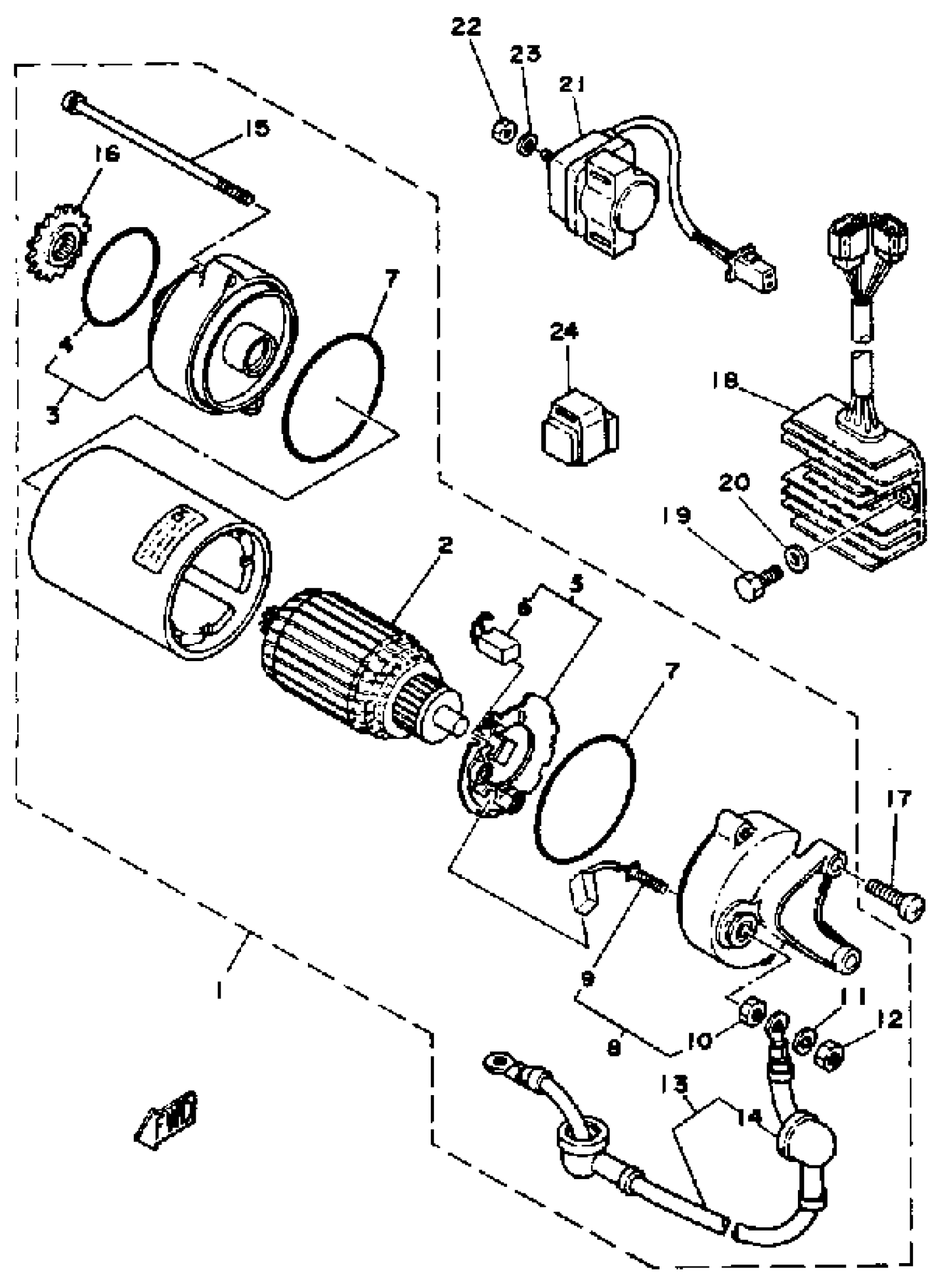

Yamaha SR250G (SR250G) 1980 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR UNIT

3Y6-81890-00-00

Unavailable

2

ARMATURE ASSY

4H7-81850-00-00

$296.99

3

FRONT BRACKET ASSEMBLY

(3Y6-81830-00-00)

Unavailable

4

O-RING

4H7-81847-01-00

Unavailable

5

BRUSH HOLDER ASSY

4H7-81840-01-00

$82.99

6

BRUSH, STARTER

4H7-81811-00-00

$13.49

7

O-RING

4H7-81844-00-00

Unavailable

8

REAR BRACKET ASSEMBLY

(3Y6-81820-00-00)

Unavailable

9

BRUSH SUB-ASSY, STARTOR

2JN-81818-50-00

$29.99

10

NUT

4H7-81872-00-00

Unavailable

11

WASHER, SPRING

92995-06100-00

Unavailable

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

WIRE, STARTER

(3Y6-81815-00-00)

Unavailable

14

CAP

(4H7-81871-00-00)

Unavailable

15

BOLT

4H7-81826-01-00

Unavailable

16

. GEAR, STARTING MTR

3Y6-15511-00-00

Unavailable

17

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

3Y6-81960-01-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

Unavailable

22

NUT(650)

95380-06700-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

RELAY ASSY

12R-81950-02-00

Unavailable
