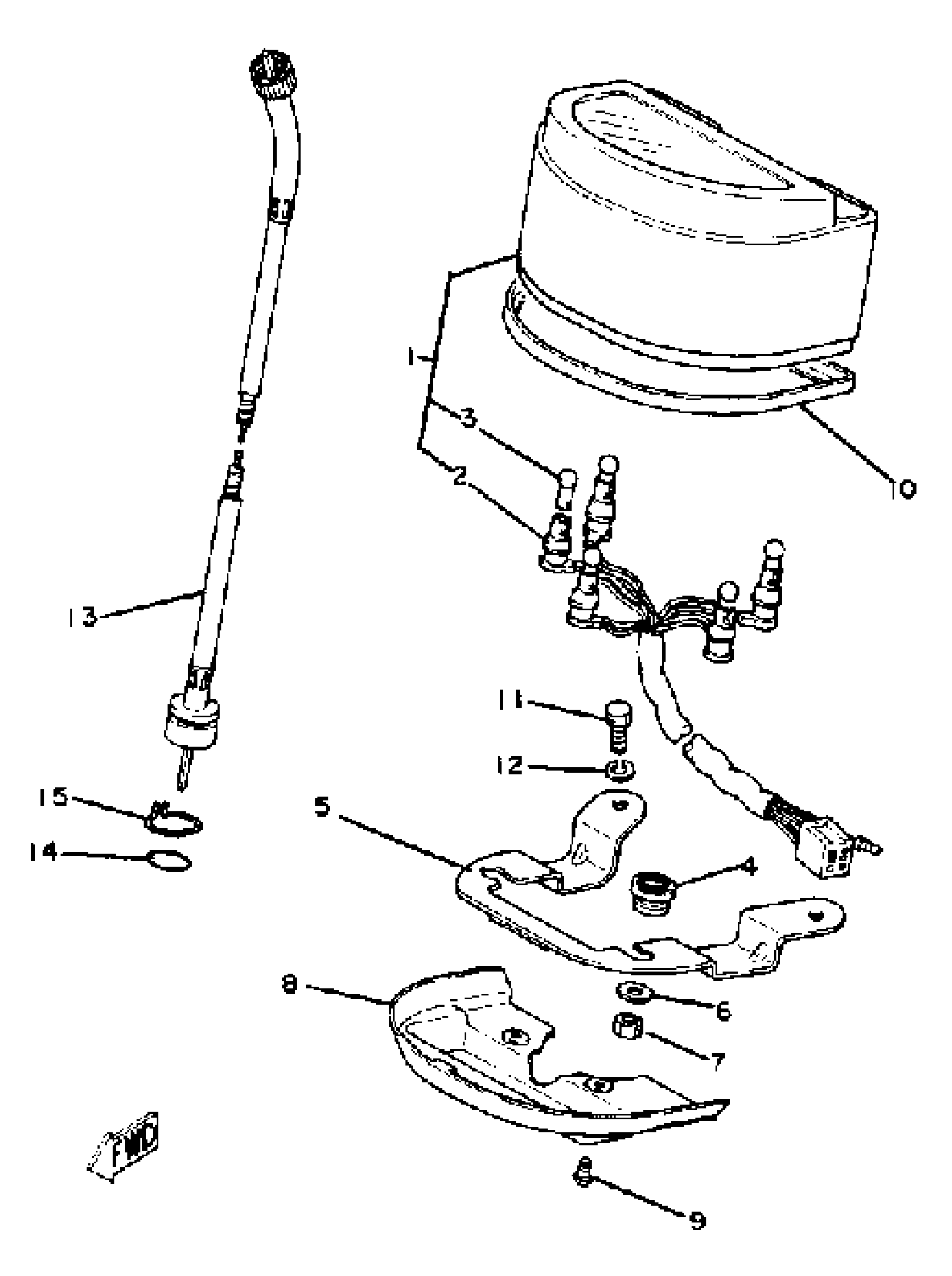

Yamaha SR250G (SR250G) 1980 SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

(3Y6-83510-A0-00)

Unavailable

2

SOCKET CORD ASSEMBLY

(3Y6-83509-00-00)

Unavailable

3

BULB (12V-3.4W)

123-83516-21-00

$4.26

4

DAMPER

(3Y6-83513-00-00)

Unavailable

5

BRACKET, METER

(3Y6-83519-00-00)

Unavailable

6

WASHER PLATE 803835240000

90201-05032-00

Unavailable

7

NUT, HEXAGON (663)

95380-05600-00

$8.49

8

CASE, SPDMTR LOWER

(3Y6-83572-00-00)

Unavailable

9

SCREW, TAPPING

(3Y6-83549-00-00)

Unavailable

10

RING, SPEED METER

(3Y6-83512-00-00)

Unavailable

11

BOLT (661)

97013-06012-00

$5.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

SPEEDOMETER CABLE ASSY

3Y6-83550-01-00

Unavailable

14

O-RING (26H)

93210-14579-00

$7.49

15

RING, STOP

102-25137-00-00

$7.99
