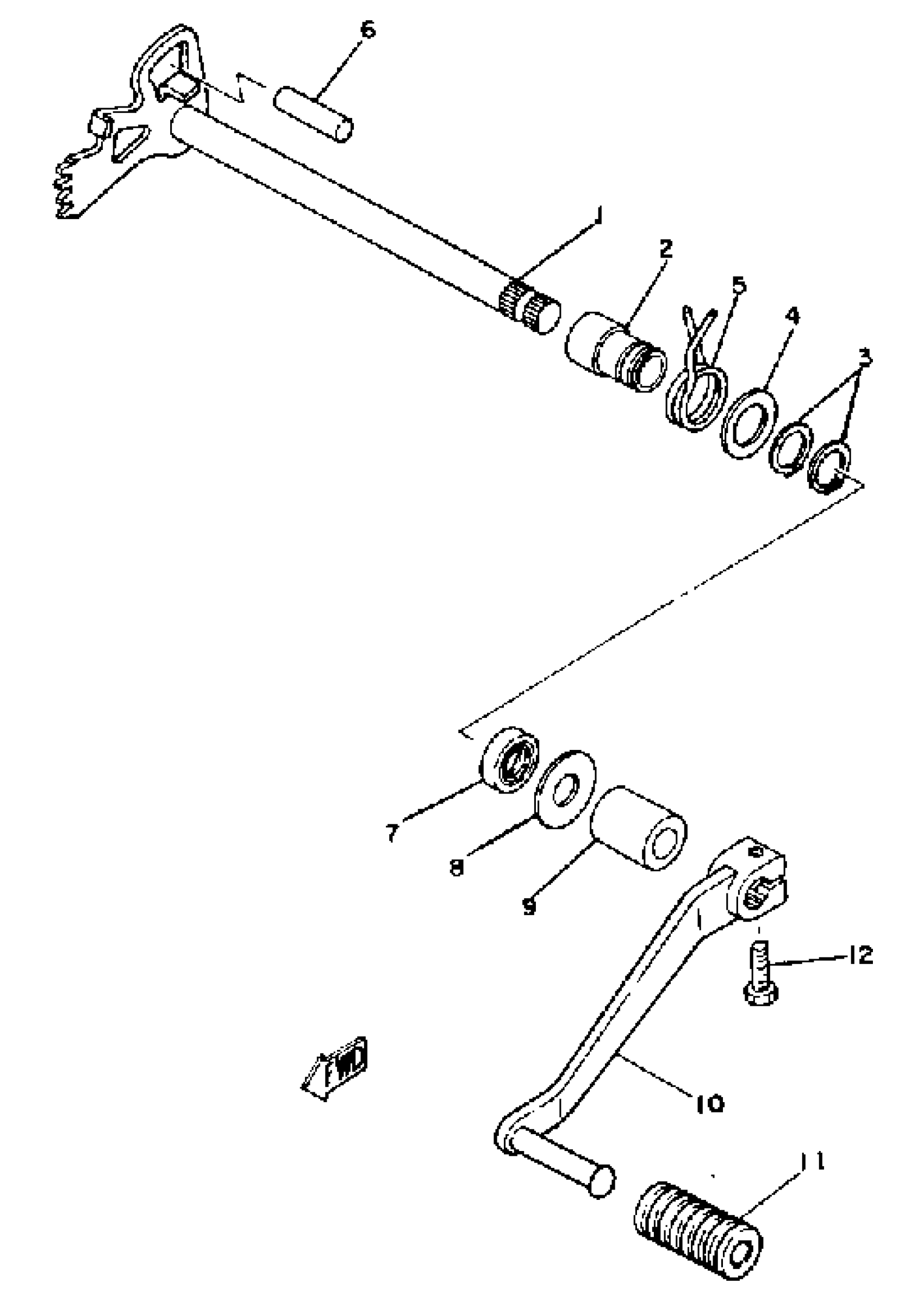

Yamaha SR250G (SR250G) 1980 SHIFT SHAFT PEDAL Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

3Y1-18101-01-00

Unavailable

2

COLLAR (3Y1)

90387-12787-00

$11.49

3

CIRCLIP(1EY)

99009-17400-00

$4.73

4

WASHER, PLATE (30X)

90201-177G4-00

$9.49

5

SPRING, TORSION (2K7)

90508-32374-00

$7.49

6

PIN, DOWEL

93608-30152-00

Unavailable

7

SEAL, OIL (30X)

93102-12321-00

$12.49

8

WASHER

90201-12588-00

$7.49

9

SPACER (3Y1)

90560-12191-00

$7.49

10

PEDAL, SHIFT

3Y6-18111-00-00

Unavailable

11

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

12

BOLT, HEXAGON

97017-06020-00

$4.06
