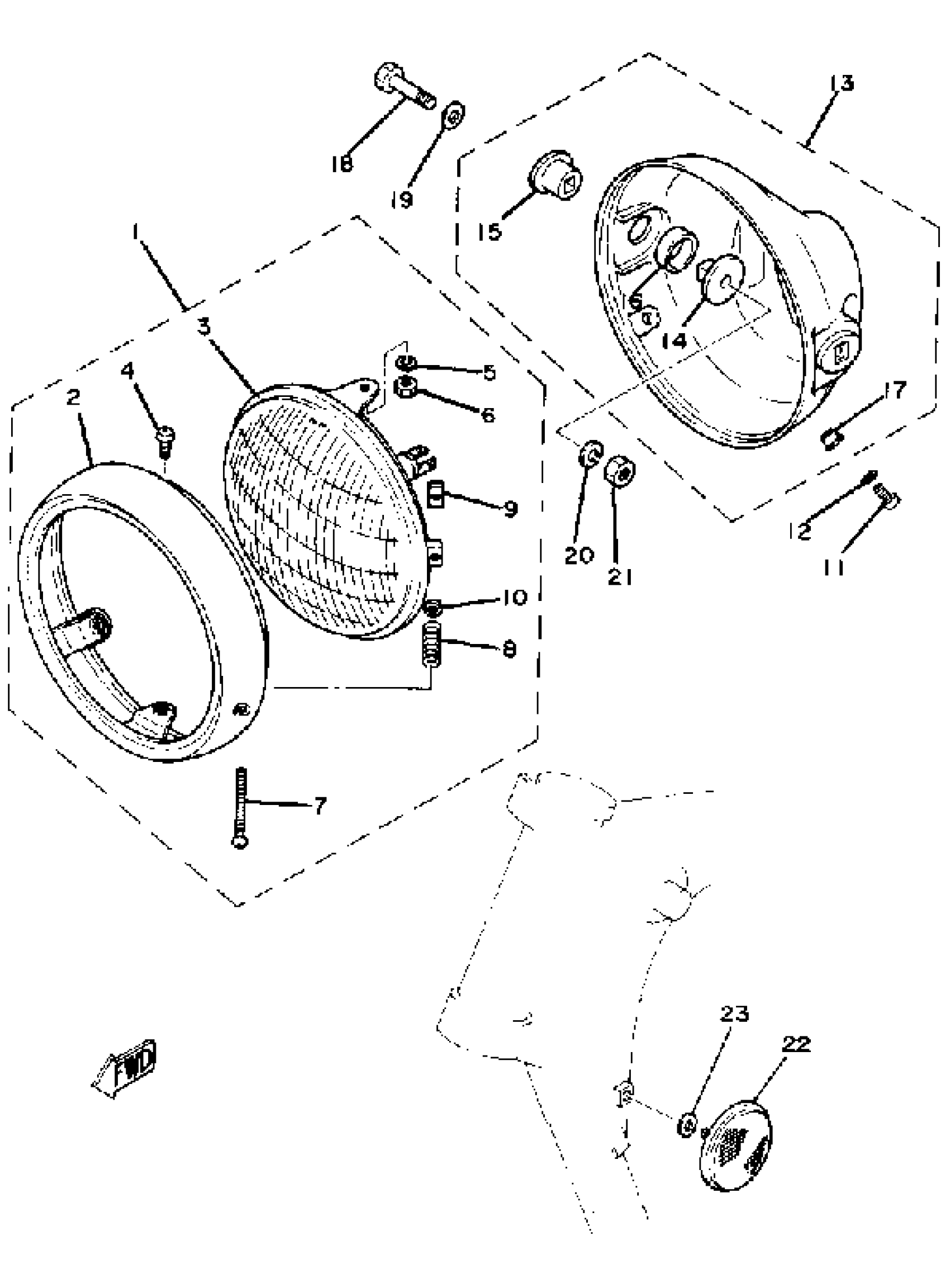

Yamaha SR250G (SR250G) 1980 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

3Y6-84310-60-00

Unavailable

2

RIM, HEAD LAMP

1L9-84315-60-00

Unavailable

3

. LENS ASSEMBLY

3Y6-84320-60-00

Unavailable

4

SCREW PAN HEAD

98580-06010-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

SCREW, RIM ADJUSTING

4KG-84331-00-00

$7.99

8

SPRING,SCREW

3AA-84332-00-00

Unavailable

9

NUT, ADJUSTING

5PX-84334-00-00

$6.99

10

WASHER, PLAIN (646)

92990-04600-00

$5.99

11

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

12

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

13

BODY ASSY

3Y6-84330-00-00

Unavailable

14

. COLLAR, BODY FTNG

1L9-84338-60-00

Unavailable

15

. DAMPER, HEADLIGHT 1

1L9-84366-61-00

Unavailable

16

. DAMPER, HEADLIGHT 2

1L9-84367-61-00

Unavailable

17

. SPACER

1L9-84327-60-00

Unavailable

18

BOLT

97013-08035-00

Unavailable

19

WASHER, PLAIN

92990-08200-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable

22

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

23

WASHER, PLATE(3AJ)

90202-05191-00

Unavailable
