Description

Price

1

FRAME

(3Y6-21110-00-33)

Unavailable

2

STAY, ENGINE 3

(3Y6-21316-00-00)

Unavailable

3

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

4

WASHER, PLATE (33N)

90201-094G1-00

$9.49

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

6

STAY, ENGINE 2

(3Y6-21315-01-00)

Unavailable

7

BOLT, FLANGE

95817-08055-00

$4.21

8

WASHER, PLATE (33N)

90201-094G1-00

$9.49

9

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

10

PLATE, ENGINE ADJUSTING

3Y1-21475-00-00

Unavailable

11

BOLT, WASHER BASED (3Y2)

90105-08162-00

$5.60

12

WASHER, PLATE (33N)

90201-094G1-00

$9.49

13

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

14

BOLT, HEXAGON

97013-08016-00

$1.01

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

.. WASHER, PLATE

92990-08600-00

Unavailable

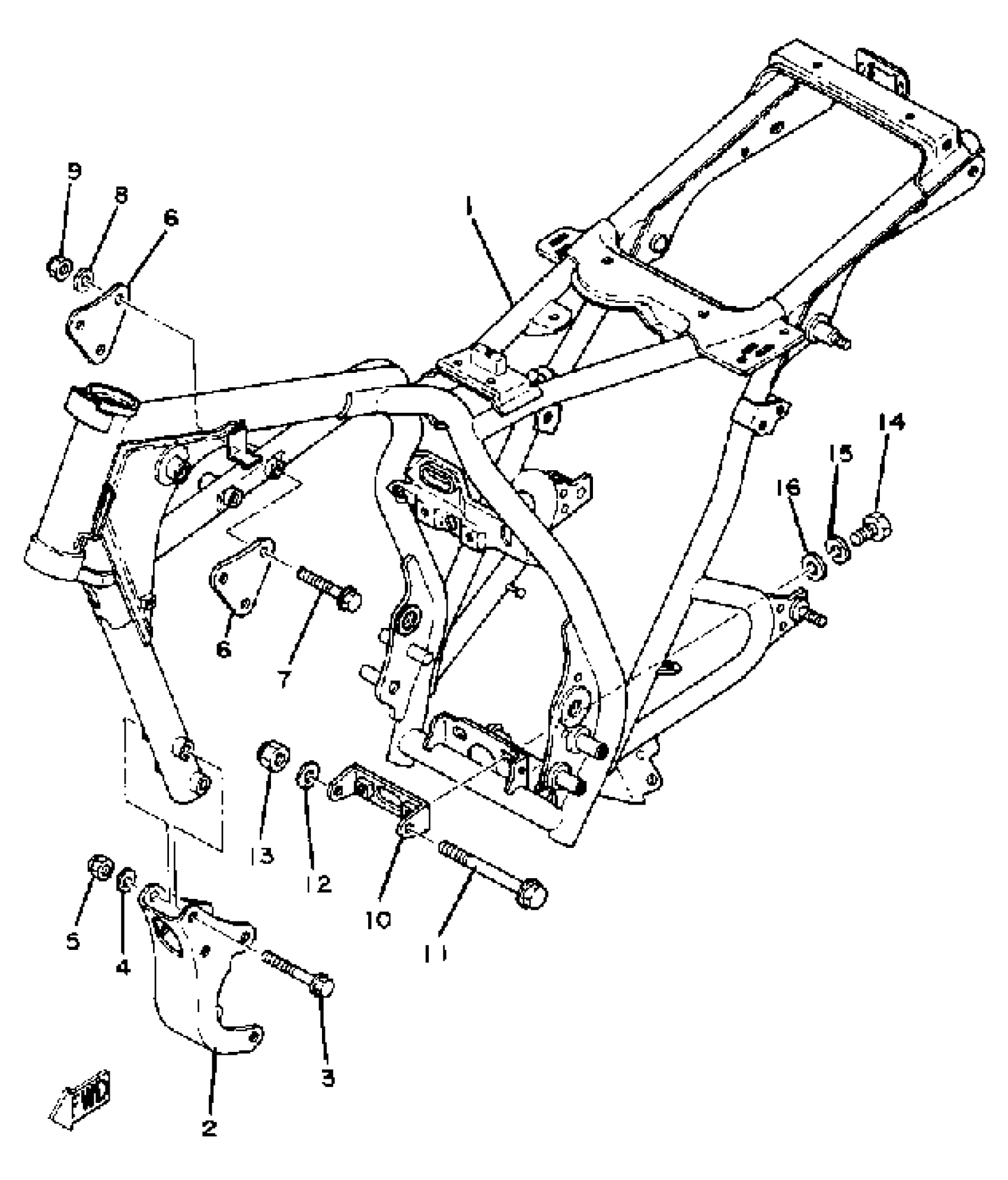

Yamaha SR250G (SR250G) 1980 FRAME Diagram

FRAME

STAY, ENGINE 3

BOLT, FLANGE(JN5)

WASHER, PLATE (33N)

NUT, SELF-LOCKING (3Y2)

STAY, ENGINE 2

BOLT, FLANGE

WASHER, PLATE (33N)

NUT, SELF-LOCKING (3Y2)

PLATE, ENGINE ADJUSTING

BOLT, WASHER BASED (3Y2)

WASHER, PLATE (33N)

NUT, SELF-LOCKING (3Y2)

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

.. WASHER, PLATE
