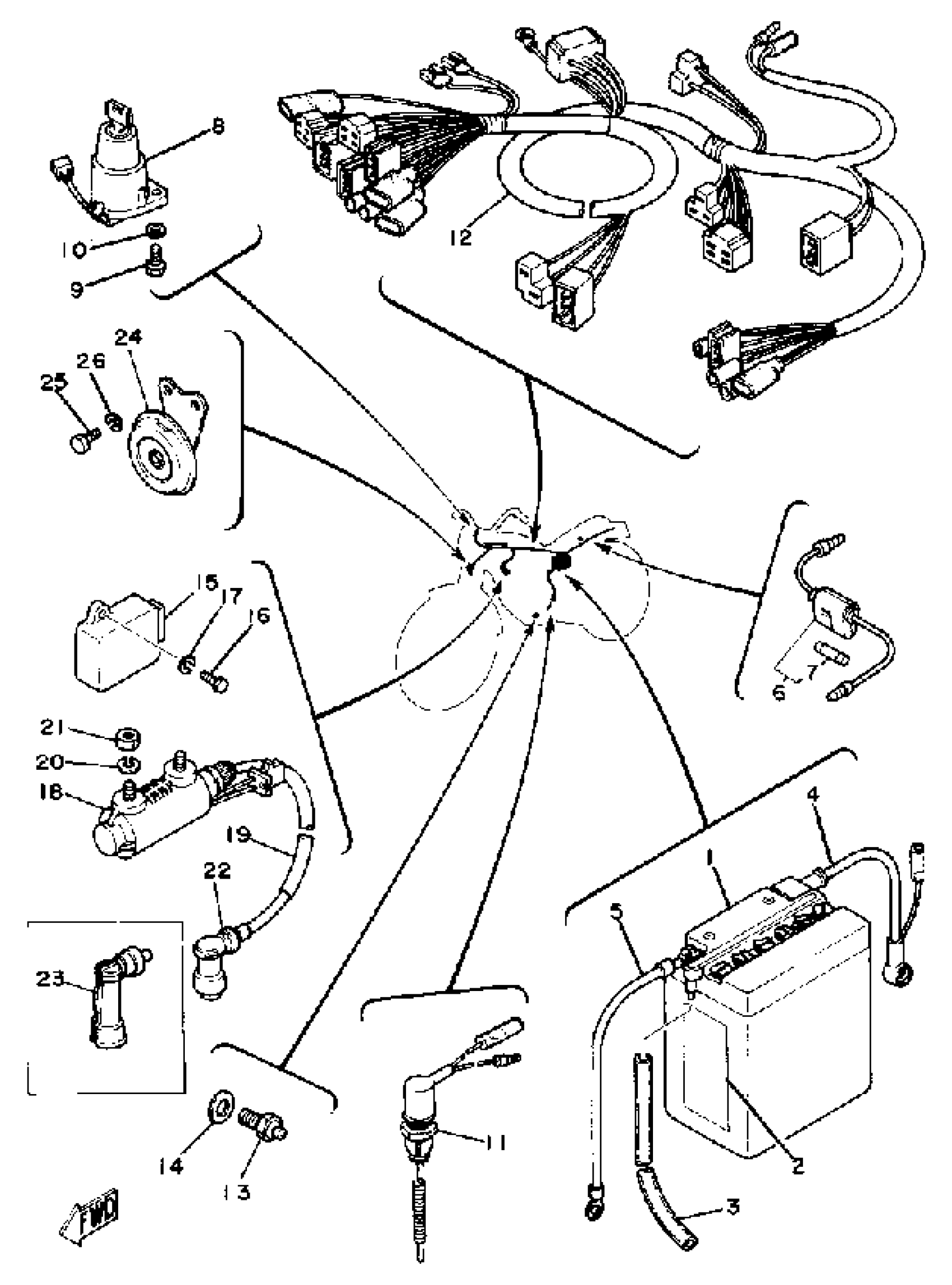

Yamaha SR250G (SR250G) 1980 ELECTRICAL 1 Diagram

#

Description
Price

1

12N12A-4A-1 YUASA BATTERY

12N-12A4A-1Y-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

HOSE (L1500)

90445-084J0-00

$18.99

4

WIRE, PLUS LEAD

3Y6-82115-00-00

Unavailable

5

WIRE, MINUS LEAD

5H0-82116-00-00

Unavailable

6

FUSE HOLDER ASSY

2UJ-82150-02-00

Unavailable

7

FUSE

1A0-82161-00-00

$7.99

8

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

STOP SWITCH ASSY

2F1-82530-03-00

$44.99

12

WIRE HARNESS ASSEMBLY

(3Y6-82590-01-00)

Unavailable

13

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

14

GASKET (5R6)

90430-10171-00

$3.18

15

IGNITOR UNIT ASSEMBLY 1

5V0-82305-10-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

17

WASHER, SPRING

92995-06100-00

Unavailable

18

IGNITION COIL ASS''Y

3Y6-82310-60-00

Unavailable

19

CORD, HIGH TENSION 1

4X7-82341-00-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

NUT, HEXAGON

95380-06600-00

Unavailable

22

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

23

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

24

HORN

3Y6-83371-00-00

Unavailable

25

BOLT(3JP)

97017-06010-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable
