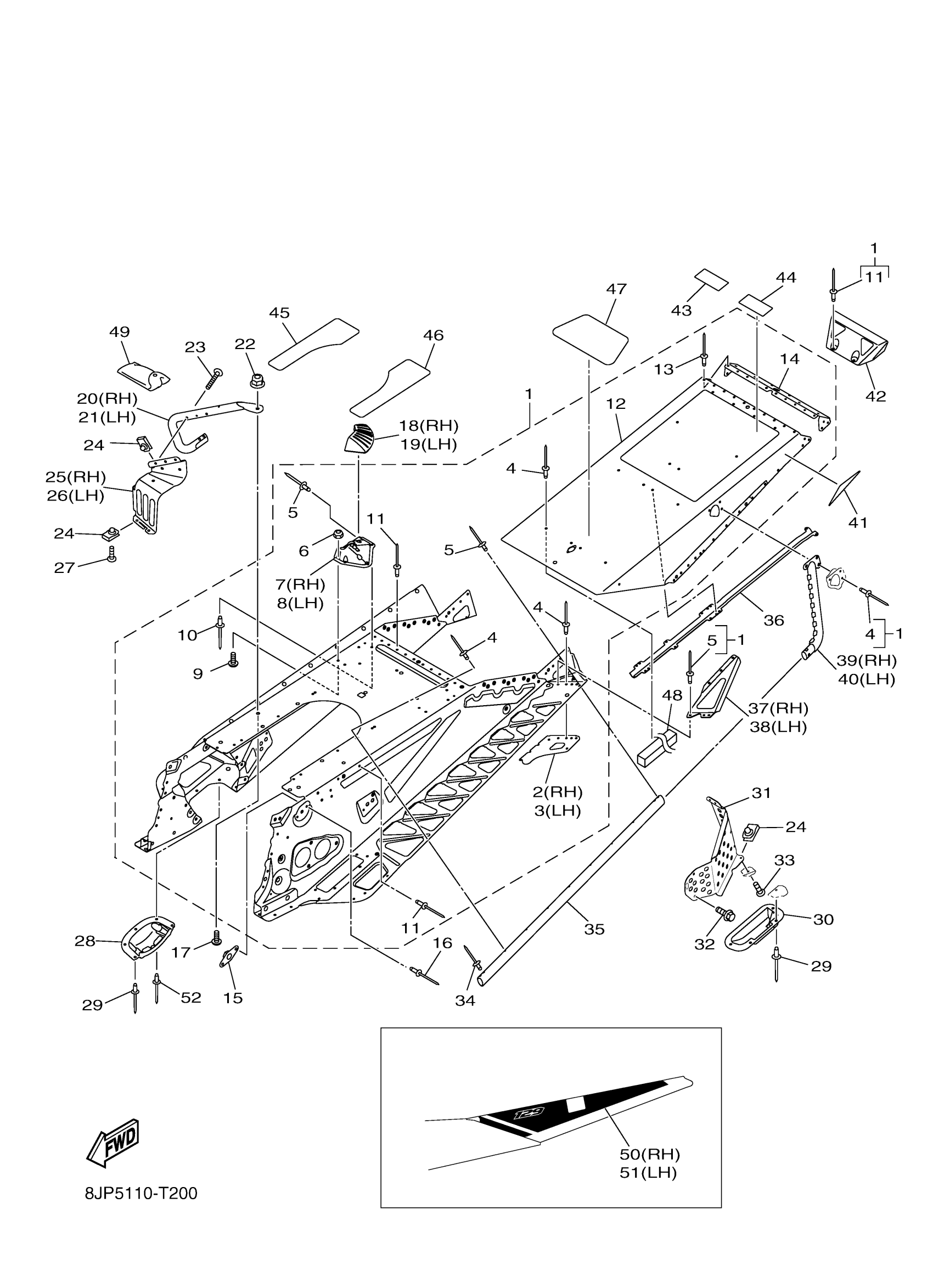

Yamaha SR1NRJB (SRVIPER R TX) 8JP5 2018 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8JW-F1950-00-00
Unavailable
2
BRACKET,RR.TRACK S
8JW-F1954-00-00
$17.99
3
BRACKET,RR.TRACK S
8JW-F1944-00-00
Unavailable
4
RIVET, 11
8JP-RA520-00-00
$0.70
5
RIVET, 3/16
8JP-RA527-00-00
$2.22
6
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
7
BRKT., MEMBER 2
8JW-F115M-00-00
Unavailable
8
. BRACKET, MEMBER 1
8JW-F115L-00-00
Unavailable
9
. SCREW, 5
8JP-RA239-00-00
Unavailable
10
RIVET, 3/16
8JP-RA528-00-00
$2.82
11
RIVET, 17
8JP-RA529-00-00
$0.54
12
. PANEL, SUB FRAME 1
8JW-F1912-00-00
Unavailable
13
RIVET, 18
8JP-RA530-00-00
$0.43
14
REINEFORCEMENT, FR
8JW-F1923-00-00
Unavailable
15
BRACKET
8JP-F1919-00-00
$32.99
16
RIVET, 12
8JP-RA521-00-00
Unavailable
17
SCREW, M8X1.25X20
8JP-RA272-00-00
Unavailable
18
SUPT., FUEL TANK 2
8JP-F2556-00-00
Unavailable
19
SUPT., FUEL TANK 1
8JP-F2555-00-00
Unavailable
20
REINFORCEMENT, FRA
8JP-F192E-00-00
Unavailable
21
REINFORCEMENT, FRA
8JP-F1929-00-00
Unavailable
22
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
23
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
24
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
25
REINFORCEMENT SUB
8JW-F1996-00-00
Unavailable
26
REINFORCEMENT SUB
8JW-F1995-00-00
Unavailable
27
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
28
PROTECTOR, CHAIN
8JP-F2147-00-00
Unavailable
29
RIVET, 14
8JP-RA523-00-00
Unavailable
30
PROTECTOR, DISK BR
8JP-F5717-00-00
Unavailable
31
PROTECTOR, DISK BR
8JW-F5718-60-00
Unavailable
32
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
33
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
34
RIVET, 3/16
8JP-RA526-00-00
Unavailable
35
REINFORCEMENT, FOO
8JW-F1926-00-00
Unavailable
36
PROTECTER, WIRE HA
8JP-H2589-00-00
Unavailable
37
GUSSET
8JW-F1135-00-00
Unavailable
38
GUSSET
8JW-F1134-00-00
Unavailable
39
GUSSET
8JW-F1137-00-00
Unavailable
40
GUSSET
8JW-F1136-00-00
Unavailable
41
LABEL 1
8JP-F151A-10-00
Unavailable
42
BRACKET, TAILLIGHT
8JW-F117E-10-00
Unavailable
43
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
44
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
45
PROTECTOR, FRAME 3
8JP-F197C-00-00
Unavailable
46
PROTECTOR, FRAME
8JP-F197B-00-00
Unavailable
47
PROTECTOR, FUEL TA
8JP-F4141-00-00
Unavailable
48
PROTECTOR, FRAME
8JP-F1978-10-00
Unavailable
49
TOOL KIT
8JP-F8100-00-00
Unavailable
50
GRAPHIC 2
8JP-F199B-90-00
Unavailable
51
GRAPHIC 1
8JP-F199A-90-00
Unavailable
52
RIVET, 15
8JP-RA524-00-00
Unavailable
