Description

Price

1

HOOD 2

8KC-K7122-00-00

$198.99

2

HOOD 1

8KC-K7121-00-00

$198.99

3

PANEL, CONSOLE 1

8NF-F837L-00-00

$55.99

4

INTAKE, UPPER

8NF-K715C-00-00

Unavailable

5

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

6

CAP, PLUG

8JP-H2371-00-00

$8.49

7

SCREW, TAPPING 1/4

8JP-RA202-00-00

$1.86

8

NUT, CLIP 10

8JP-RA352-00-00

$1.64

9

DUCT, INTAKE

8NF-R1311-00-00

$93.99

10

TAPE, REFLECTOR

8JP-H5133-00-00

$15.99

11

PIN, 2

8JP-RAK02-00-00

$26.99

12

NUT, 1

8JP-RA345-00-00

Unavailable

13

SCREW, 13

8JP-RA2A2-00-00

$0.43

14

SCREW, 4

8KC-RA238-00-00

Unavailable

15

VENT, FRONT 2

8ND-K715J-00-00

$31.99

16

VENT, FRONT 1

8ND-K715H-00-00

Unavailable

17

BEZEL, VENT 2

8KC-K715M-00-00

Unavailable

18

BEZEL, VENT 1

8KC-K715L-00-00

Unavailable

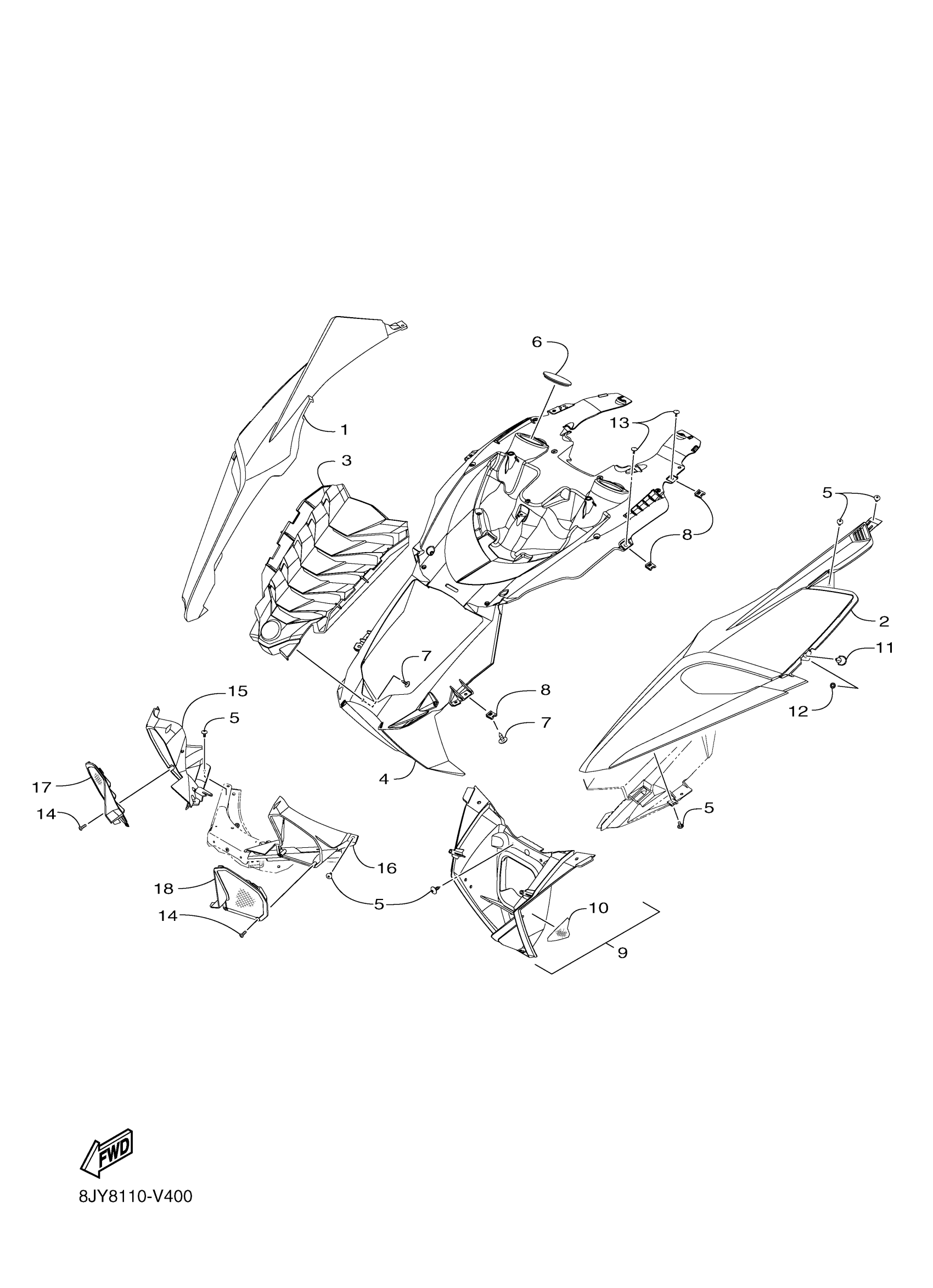

Yamaha SR1NLSLO (SRVIPER L TX SE) 8JY8 2020 SHROUD Diagram

HOOD 2

HOOD 1

PANEL, CONSOLE 1

INTAKE, UPPER

SCREW, 10-12X3/4

CAP, PLUG

SCREW, TAPPING 1/4

NUT, CLIP 10

DUCT, INTAKE

TAPE, REFLECTOR

PIN, 2

NUT, 1

SCREW, 13

SCREW, 4

VENT, FRONT 2

VENT, FRONT 1

BEZEL, VENT 2

BEZEL, VENT 1
