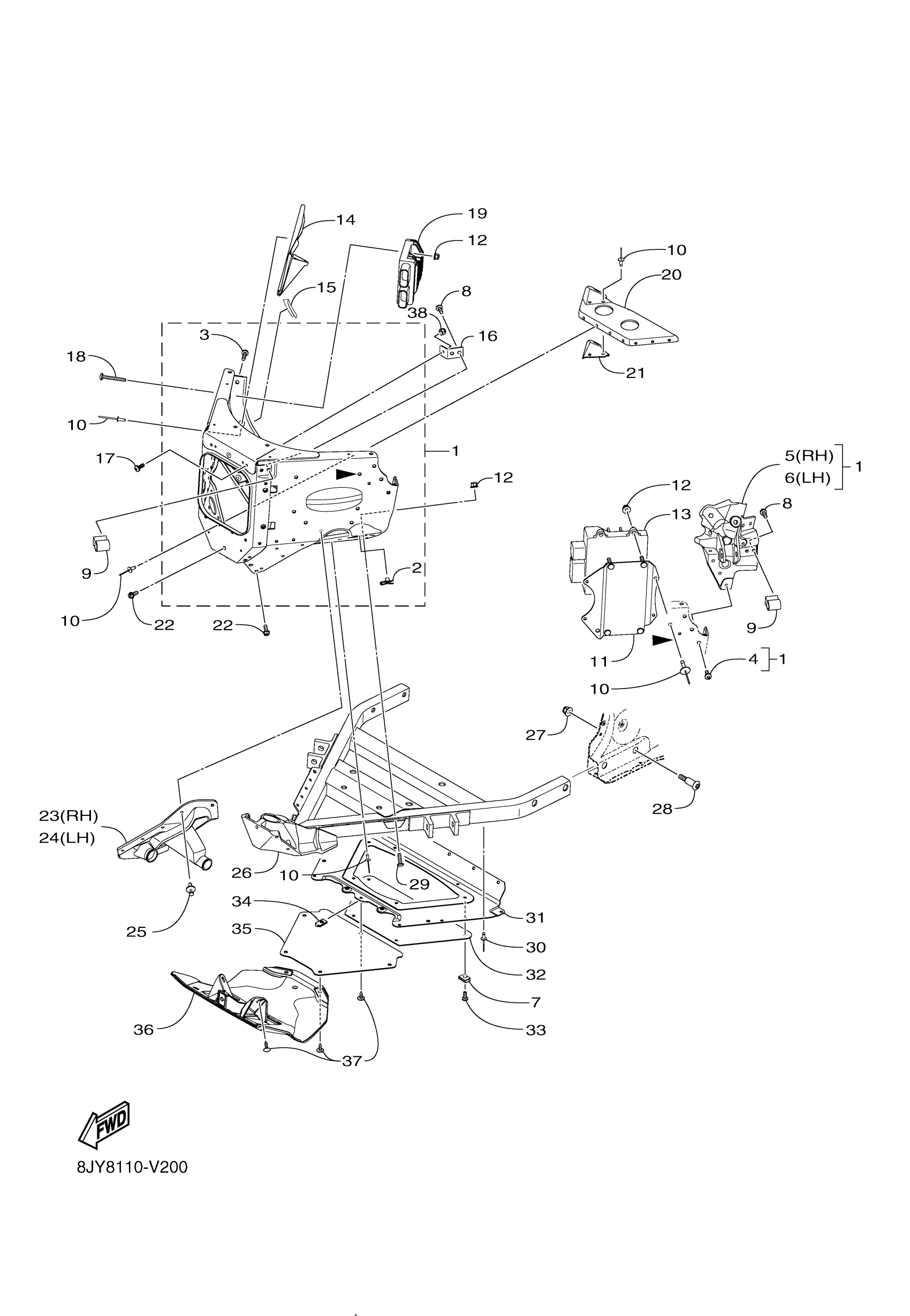

Yamaha SR1NLSLO (SRVIPER L TX SE) 8JY8 2020 FRAME 1 Diagram
#
1
BULKHEAD
8JP-F191A-20-00
Unavailable
2
NUT, CLIP M6
8JP-RA354-00-00
$0.96
3
. SCREW, TAPPING
8JP-RA281-00-00
Unavailable
4
SCREW, M6X1X16
8JP-RA271-00-00
$0.96
5
HOLDER, ABSORBER 2
8JP-F377J-10-00
Unavailable
6
HOLDER, ABSORBER
8JP-F376J-10-00
$136.99
7
NUT, CLIP M6
8JP-RA354-00-00
$0.96
8
BOLT, FLG. M6X1.0X
8JP-RA180-00-00
Unavailable
9
BRACKET, UPPER
8JP-F2219-00-00
Unavailable
10
RIVET, 11
8JP-RA520-00-00
$0.70
11
BRACKET, UNIT
8JP-H5991-00-00
Unavailable
12
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
13
ENGINE CONTROL UNI
8NF-H591A-00-00
Unavailable
14
BRACKET, STOPPER S
8JP-F131G-00-00
$33.99
15
TRIM (3 FEET)
8JP-F15B3-00-00
Unavailable
16
GUSSET
8NN-F1138-00-00
Unavailable
17
SCREW
8KC-RA229-00-00
Unavailable
18
SCREW, M6X1.0X25
8JP-RA264-00-00
Unavailable
19
RECTIFIER & REGULA
8JP-H1960-00-00
Unavailable
20
REINF.,FRAME FR. 3
8JP-F1922-00-00
Unavailable
21
BRACKET, STEERING
8JP-F1947-00-00
Unavailable
22
SCREW, TAPPING
8JP-RA201-00-00
Unavailable
23
COVER 3
8JP-F198J-00-00
Unavailable
24
COVER 1
8JP-F198F-00-00
Unavailable
25
RIVET, 2
8JP-RA511-00-00
Unavailable
26
FRAME UNDER 1
8KC-F196A-10-00
Unavailable
27
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
28
SCREW, M8X1.25X44.
8JP-RA275-00-00
Unavailable
29
SCREW, M6X1.0X20
8JP-RA258-00-00
Unavailable
30
RIVET, 9
8JP-RA518-00-00
Unavailable
31
FRAME, UNDER 2
8JP-F196E-00-00
Unavailable
32
COVER, UNDER
8JP-F2863-00-00
Unavailable
33
SCREW, M6X1.0X16
8JP-RA255-00-00
Unavailable
34
NUT, CLIP
8JP-RA349-00-00
Unavailable
35
PANEL, UNDER
8JP-F114G-00-00
Unavailable
36
COVER, FRONT
8ND-F2865-00-00
Unavailable
37
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
38
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
