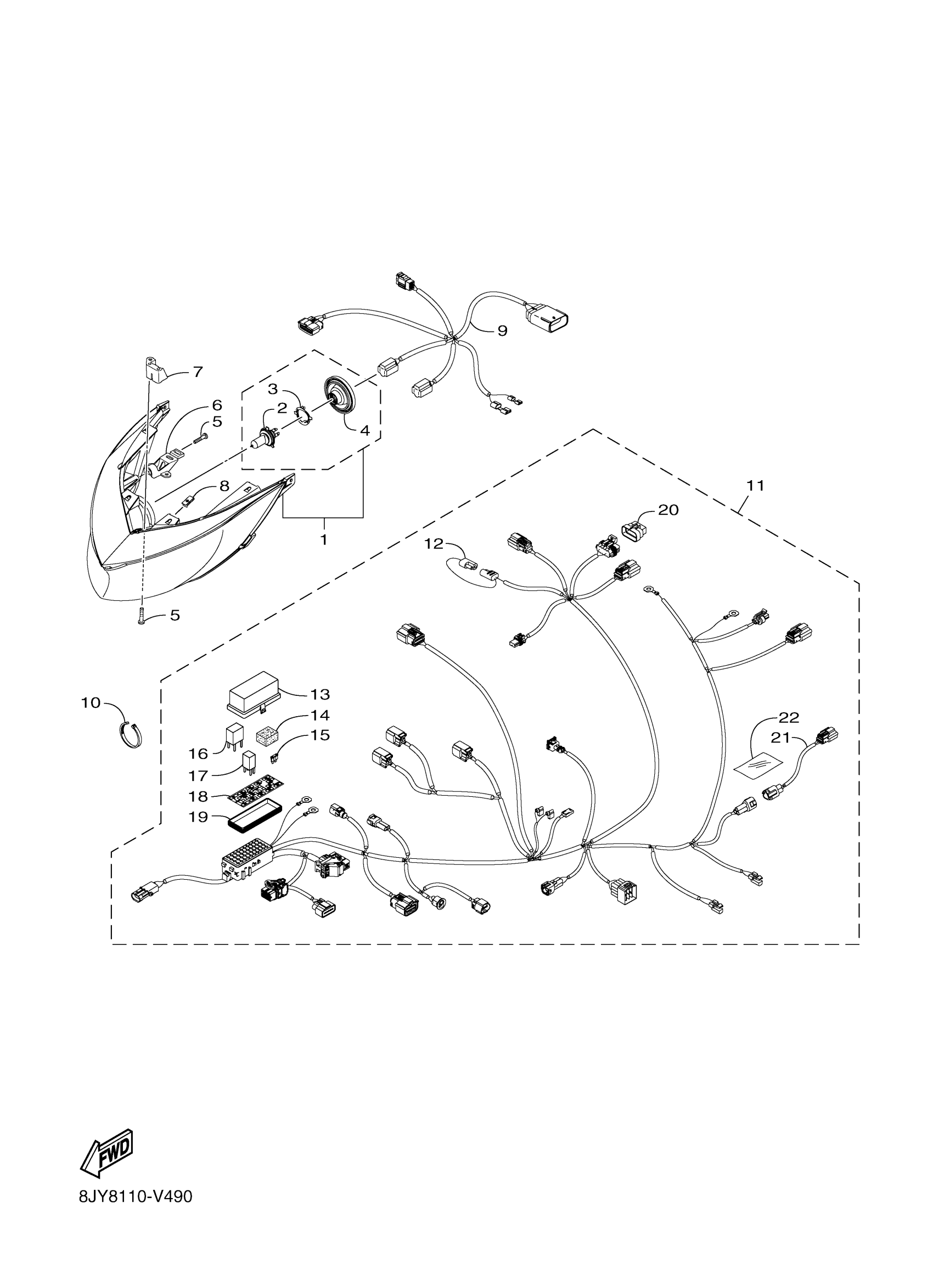

Yamaha SR1NLSLO (SRVIPER L TX SE) 8JY8 2020 ELECTRICAL 1 Diagram
#
Description
Price
1
HEADLIGHT UNIT ASS
8JP-H4310-10-00
Unavailable
2
BULB, HEADLIGHT
8JR-H4314-00-00
$17.99
3
HOLDER BULB
8JP-H4393-00-00
$26.99
4
COVER, SOCKET
8JP-H4397-00-00
Unavailable
5
SCREW, TAPPING 1/4
8JP-RA284-00-00
Unavailable
6
BRACKET 1
8ND-H4781-00-00
Unavailable
7
BRACKET 2
8ND-H4782-00-00
Unavailable
8
NUT, CLIP M6X1.0
8JP-RA355-00-00
$1.16
9
WIRE HARNESS
8JY-H2105-00-00
Unavailable
10
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
10
CLAMP, 1 (4-INCH)
8JP-RAB03-00-00
Unavailable
10
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
11
WIRE HARNESS ASSY
8JY-H2590-00-00
$530.99
12
. ANCHOR, CABLE 1
8JP-G8352-00-00
Unavailable
13
COVER, FUSE BOX
8JP-H2172-00-00
$8.49
14
. HOLDER, FUSE
8JP-H2152-00-00
Unavailable
15
FUSE (15A)
8JP-H2151-00-00
Unavailable
15
FUSE (20A)
8JP-H2151-10-00
Unavailable
15
FUSE (25A)
8JP-H2151-20-00
Unavailable
15
FUSE (30A)
8JP-H2151-30-00
Unavailable
16
RELAY 1
8MS-H2185-00-00
Unavailable
17
RELAY 2
8MS-H2189-00-00
Unavailable
18
. DECAL 1
8JP-R2391-00-00
Unavailable
19
GASKET, HOLE COVER
8JP-H1365-00-00
Unavailable
20
COVER, CONNECTER
8JP-H1662-10-00
Unavailable
21
EXT,WIRE HARNESS
8JR-H2586-00-00
Unavailable
22
TAPE,ALUM FOIL - 6" X 30 FT
8JM-F199H-00-00
Unavailable
