Description

Price

1

HEADLIGHT UNIT ASS

8JP-H4310-10-00

Unavailable

2

BULB, HEADLIGHT

8JR-H4314-00-00

$17.99

3

HOLDER BULB

8JP-H4393-00-00

$26.99

4

COVER, SOCKET

8JP-H4397-00-00

Unavailable

5

SCREW, TAPPING 1/4

8JP-RA284-00-00

Unavailable

6

CLAMP, 17

8JP-RAB19-00-00

Unavailable

7

NUT, CLIP M6X1.0

8JP-RA355-00-00

$1.16

8

WIRE HARNESS

8JP-H2105-00-00

$171.99

9

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

9

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

Unavailable

9

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable

10

WIRE HARNESS ASSY

8JR-H2590-00-00

$659.99

11

. ANCHOR, CABLE 1

8JP-G8352-00-00

Unavailable

12

COVER, FUSE BOX

8JP-H2172-00-00

$8.49

13

. HOLDER, FUSE

8JP-H2152-00-00

Unavailable

14

FUSE (15A)

8JP-H2151-00-00

Unavailable

14

FUSE (20A)

8JP-H2151-10-00

Unavailable

14

FUSE (25A)

8JP-H2151-20-00

Unavailable

14

FUSE (30A)

8JP-H2151-30-00

Unavailable

15

RELAY 1

8MS-H2185-00-00

Unavailable

16

RELAY 2

8MS-H2189-00-00

Unavailable

17

. DECAL 1

8JP-R2391-00-00

Unavailable

18

GASKET, HOLE COVER

8JP-H1365-00-00

Unavailable

19

COVER, CONNECTER

8JP-H1662-10-00

Unavailable

20

EXT,WIRE HARNESS

8JR-H2586-00-00

Unavailable

21

TAPE,ALUM FOIL - 6" X 30 FT

8JM-F199H-00-00

Unavailable

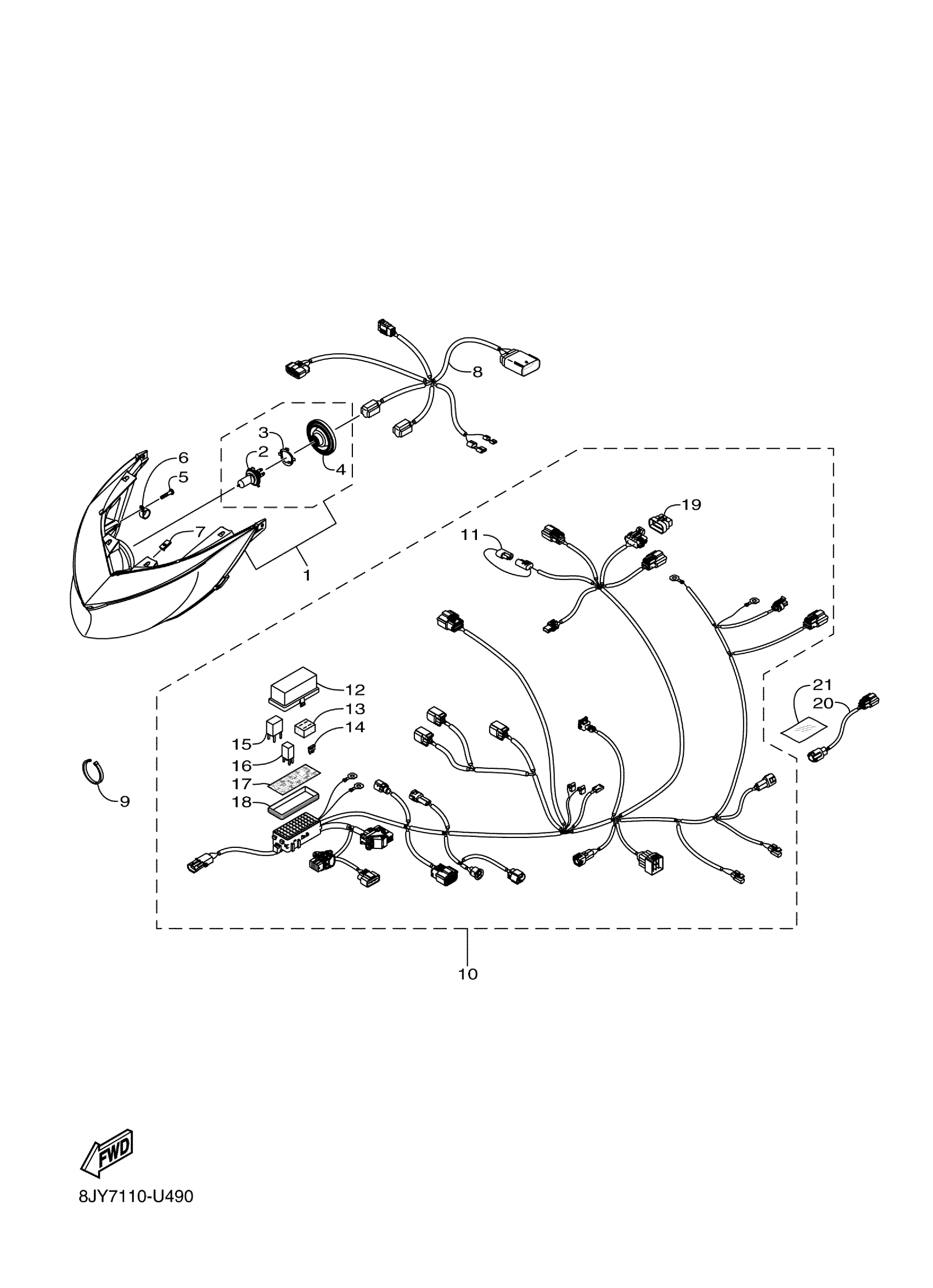

Yamaha SR1NLKS (SRVIPER L TX) 8JY7 2019 ELECTRICAL 1 Diagram

HEADLIGHT UNIT ASS

BULB, HEADLIGHT

HOLDER BULB

COVER, SOCKET

SCREW, TAPPING 1/4

CLAMP, 17

NUT, CLIP M6X1.0

WIRE HARNESS

TIE, CABLE-8.5/7.5/7.4

CLAMP, 1 (4-INCH)

CLAMP, 2 (11.5 INCH)

WIRE HARNESS ASSY

. ANCHOR, CABLE 1

COVER, FUSE BOX

. HOLDER, FUSE

FUSE (15A)

FUSE (20A)

FUSE (25A)

FUSE (30A)

RELAY 1

RELAY 2

. DECAL 1

GASKET, HOLE COVER

COVER, CONNECTER

EXT,WIRE HARNESS

TAPE,ALUM FOIL - 6" X 30 FT
