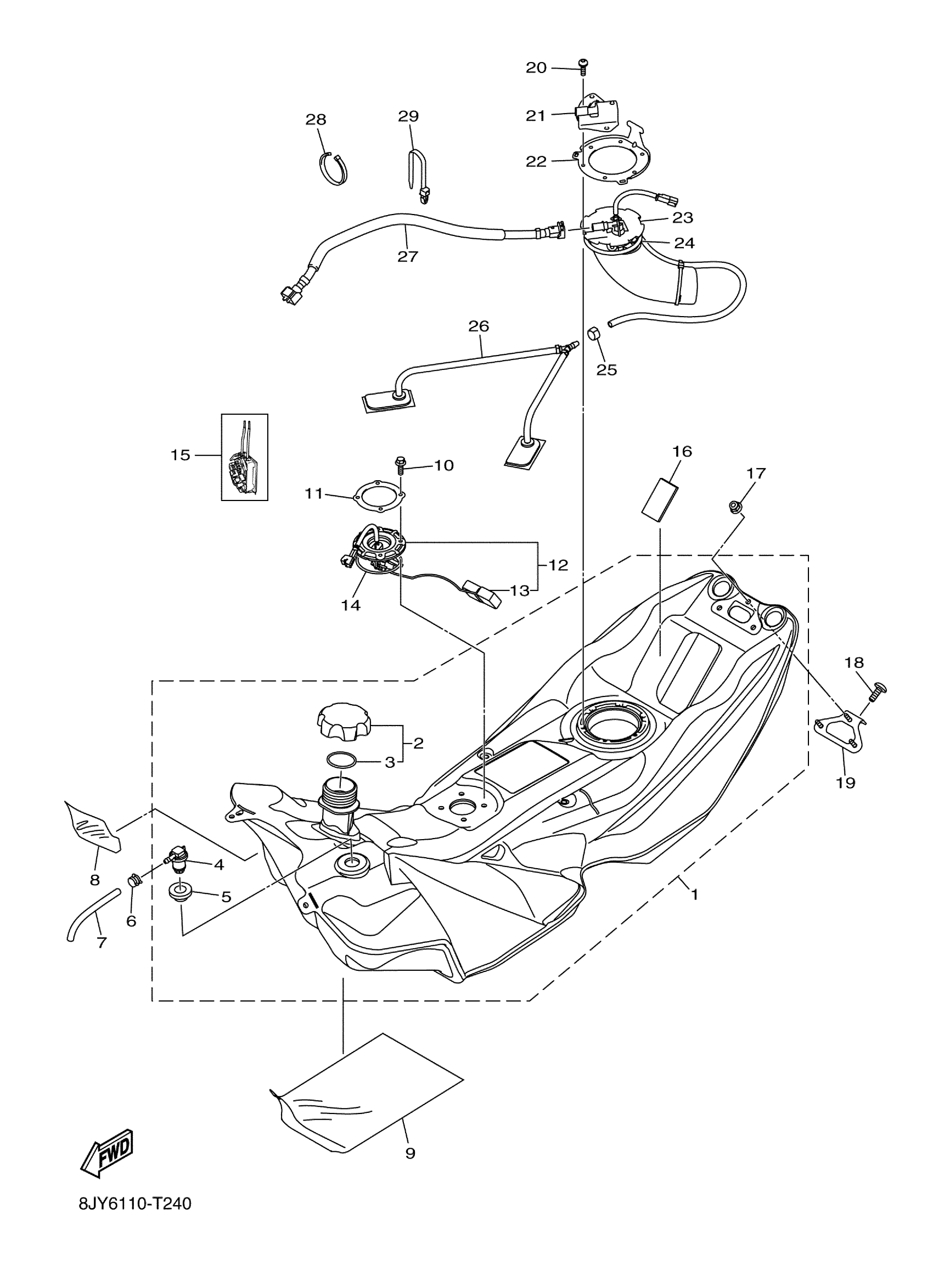

Yamaha SR1NLJB (SRVIPER L TX) 8JY6 2018 FUEL TANK Diagram

FUEL TANK ASSY

8JP-F4100-00-00

Unavailable

CAP ASSY

8JP-F4610-00-00

$15.99

SEAL, GAS CAP

8JM-F4641-00-00

Unavailable

VALVE, CHECK 1

8JP-F4362-00-00

$44.99

GROMMET

8JP-E5366-00-00

$2.97

CLAMP, 10

8JP-RAB12-00-00

$0.54

HOSE, 3 (50 FEET)

8JP-RA907-00-00

$295.99

INSULATOR,FUEL TAN

8JP-F416F-01-00

$18.99

PROTECTOR,1

8JP-F476U-01-00

Unavailable

BOLT, FLANGE M5X0.8X16

8JP-RA178-00-00

Unavailable

PLATE, RETAINER

8JP-K8166-00-00

Unavailable

SENDER UNIT ASSY,

8JP-H5752-00-00

$209.99

FLOAT

8JP-H369N-00-00

Unavailable

O-RING, 46.9

8JP-RAF10-00-00

$11.49

SENDER ASSY

8LN-H5701-00-00

$106.99

PAD, BATTERY

8JP-H2121-00-00

Unavailable

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

SCREW, M6X1.0X16

8JP-RA257-00-00

Unavailable

BRACKT, TANK FITTI

8JP-F134U-00-00

Unavailable

SCREW, M5X0.8X20

8JP-RA242-00-00

Unavailable

GUIDE, NOZZLE

8JP-F413K-00-00

Unavailable

BRACKET, FUEL PUMP

8JP-F4491-00-00

Unavailable

FUEL PUMP COMP.

8JP-E3907-00-00

Unavailable

O-RING

8JP-F4486-00-00

Unavailable

CLAMP, 25

8JP-RAB27-00-00

Unavailable

FILTER, FUEL

8JP-F4502-00-00

Unavailable

FUEL PIPE ASSY

8NF-F4310-00-00

Unavailable

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

CLAMP, 8 (11.75 INCH)

8JP-RAB10-00-00

Unavailable

CABLE TIE,PUSH MOUNT-XMAS CLIP

8JM-RAB02-00-00

Unavailable
