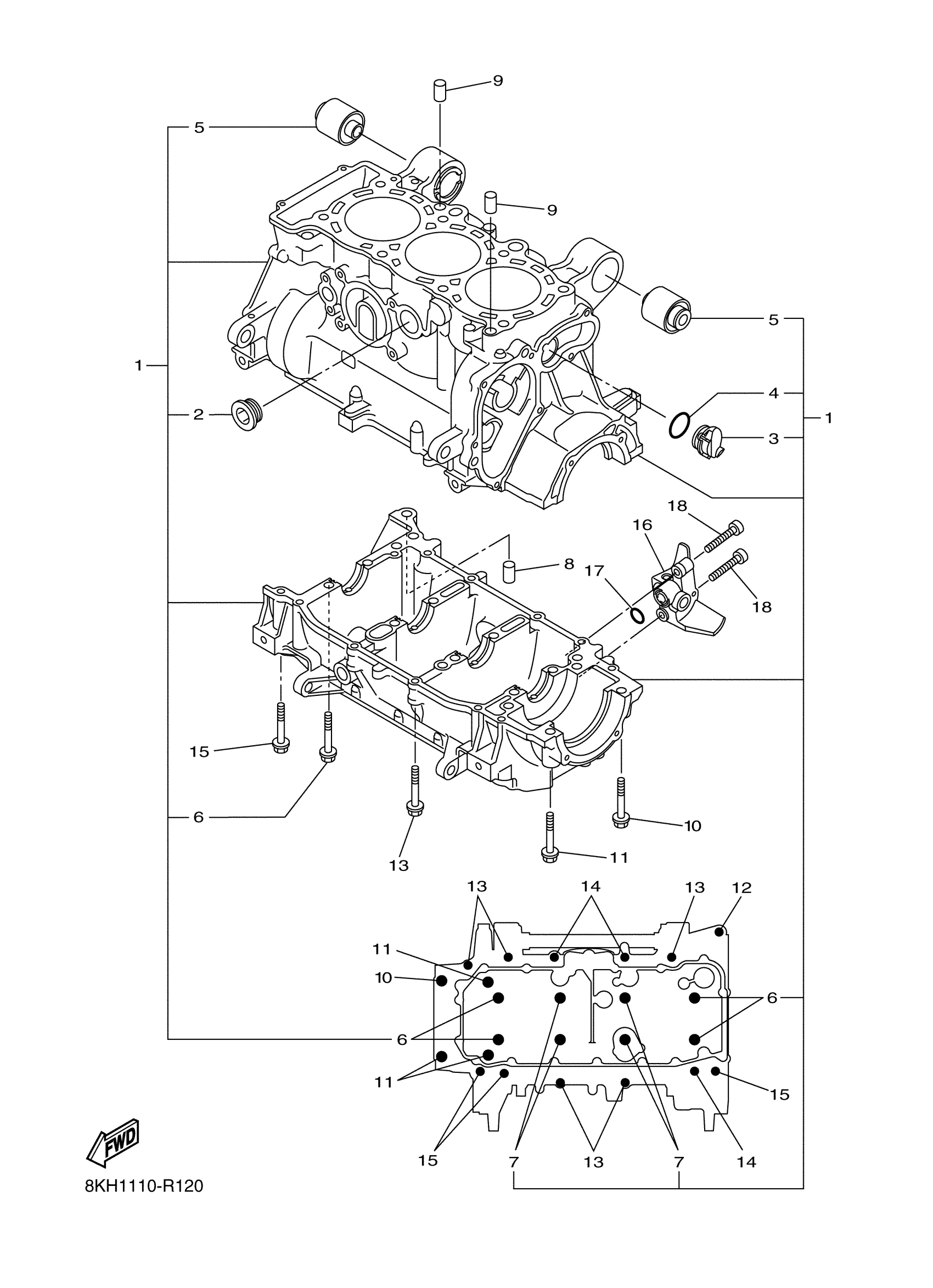

Yamaha SR1NLJB (SRVIPER L TX) 8JY6 2018 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8KH-15109-09-00

Unavailable

2

PLUG, STRAIGHT SCREW

90340-27129-00

$4.79

3

PLUG, BLIND 1

8ES-15167-00-00

$8.56

4

O-RING(1HX)

93210-24709-00

$7.55

5

DAMPER

8FA-2139X-00-00

Unavailable

6

BOLT, WITH WASHER

90119-09004-00

$8.56

7

BOLT, WITH WASHER

90119-09011-00

$33.30

8

PIN, DOWEL(3VD)

99530-10114-00

$2.13

9

PIN, DOWEL(3VD)

99530-10114-00

$2.13

10

BOLT, FLANGE

95817-08055-00

$2.63

11

BOLT, FLANGE(JN5)

95817-08070-00

$3.15

12

BOLT

90109-06185-00

$6.61

13

BOLT, FLANGE

95812-06055-00

$1.37

14

BOLT, FLANGE

95812-06080-00

$6.23

15

BOLT, FLANGE

95817-06080-00

$2.57

16

JOINT

8JH-15319-00-00

Unavailable

17

O-RING(36Y)

93210-13657-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable
