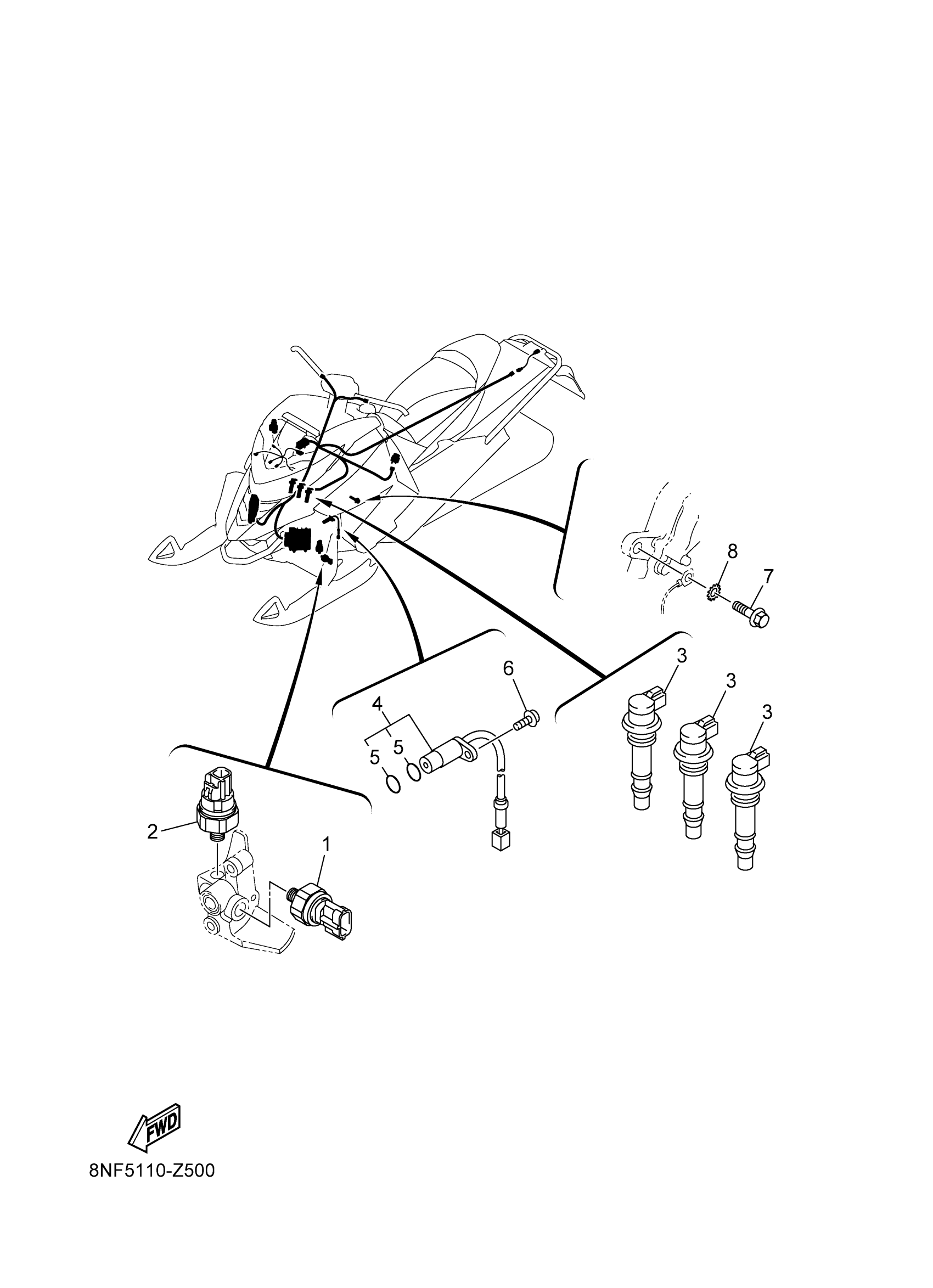

Yamaha SR1NLGSR (SRVIPER LTX GT) 8NF6 2025 ELECTRICAL 2 Diagram

#

Description

Price

1

SENDER, OIL PRESSU

8GN-83651-01-00

$310.32

2

OIL PRESSURE SWITCH

8FP-82504-01-00

$53.34

3

IGNITION COIL ASSY

8ES-82310-00-00

$128.18

4

PICK-UP ASSY

8GL-81670-01-00

Unavailable

5

O-RING 1

5VY-8A8E1-00-00

$5.55

6

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

$5.18

7

BOLT, FLG. M10X1.2

8JP-RA197-00-00

$1.62

8

WASHER, TOOTHED LOCK

8JP-RA456-00-00

Unavailable
