SECONDARY SHEAVE

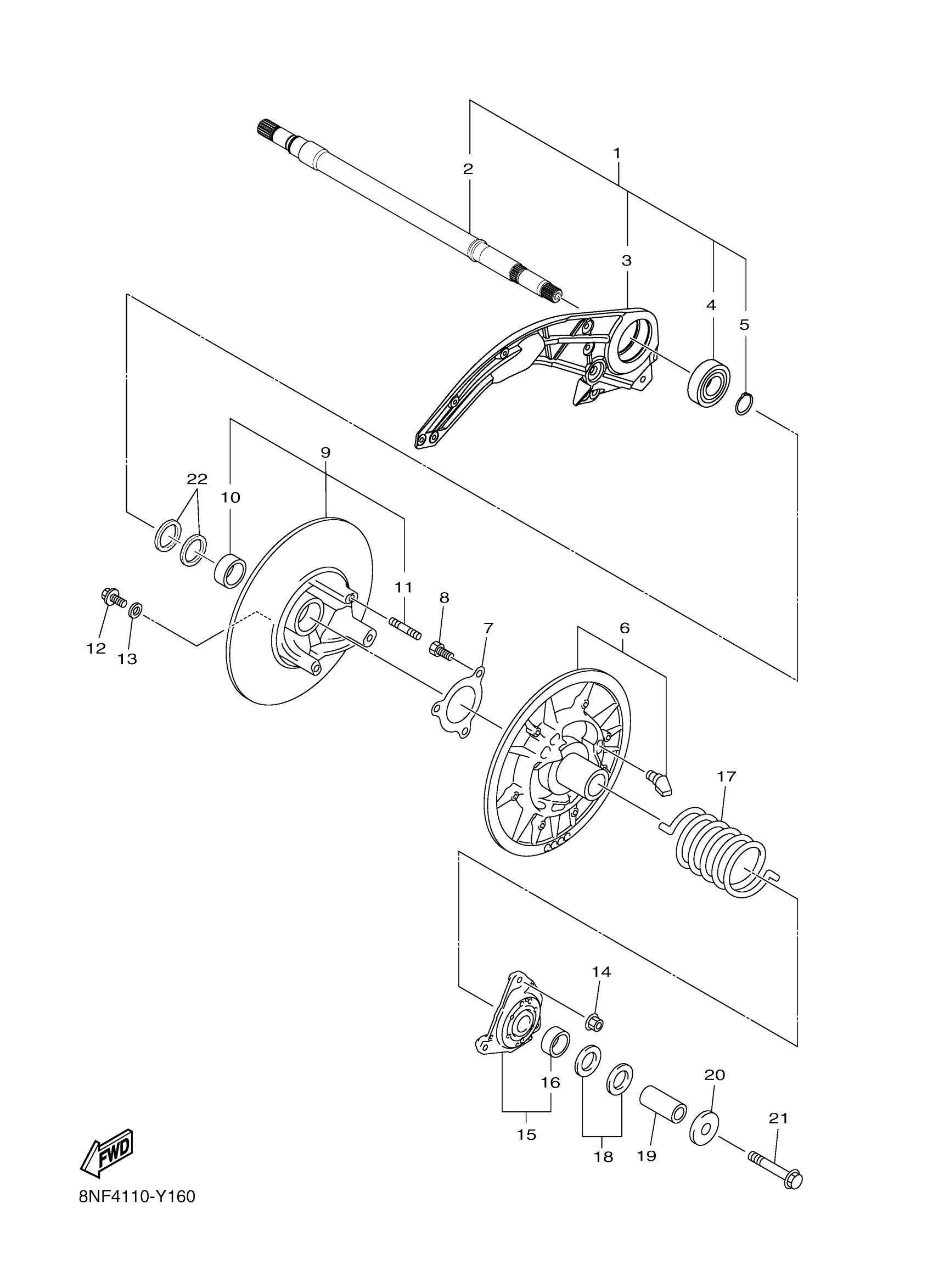

Yamaha SR1NLGRL (SRVIPER LTX GT) 8NF5 2024 SECONDARY SHEAVE Diagram
#
Description
Price
1
SECONDARY SHAFT CO
8JP-E7680-20-00
Unavailable
2
SHAFT, SECONDARY
8JP-E7681-30-00
$165.99
3
HOUSING, BEARING
8JP-G7631-10-00
$279.99
4
BEARING, 6206
8JP-RAG07-00-00
$42.99
5
CIRCLIP, 1
8JP-RAH03-00-00
$0.96
6
SECONDARY FIXED SHEAVE COMP.
8GL-17660-30-00
Unavailable
7
STOPPER, HOLDER
8BV-17656-00-00
$22.99
8
SCREW, BINDING
98907-06016-00
$9.49
9
SECONDARY SLIDING SHEAVE
8BU-17670-30-00
$239.99
10
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
11
BOLT, STUD 3
95617-08630-00
$4.99
12
BOLT, WASHER BASED(8BN)
90105-06734-00
$3.50
13
WASHER, PLATE (371)
90201-06431-00
$5.60
13
WASHER, PLATE (22K)
90201-061H1-00
$4.72
14
NUT(8BN)
90179-08655-00
$10.49
15
SEAT SPRING SET
8BV-17604-31-00
Unavailable
16
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
17
SPRING, TORSION
90508-60012-00
Unavailable
18
WASHER, 2
8JP-RA433-00-00
Unavailable
18
WASHER, 25X36X1
8JP-RA446-00-00
Unavailable
18
WASHER, 25X36X2
8JP-RA447-00-00
Unavailable
19
COLLAR, 2
8JP-RA714-00-00
Unavailable
20
WASHER, 10.5X33X4
8JP-RA442-00-00
Unavailable
21
BOLT, FLG. M10X1.2
8JP-RA1A6-00-00
Unavailable
22
WASHER, 28X40X1
8JP-RA448-00-00
Unavailable
22
WASHER, 28X40X2
8JP-RA449-00-00
Unavailable
