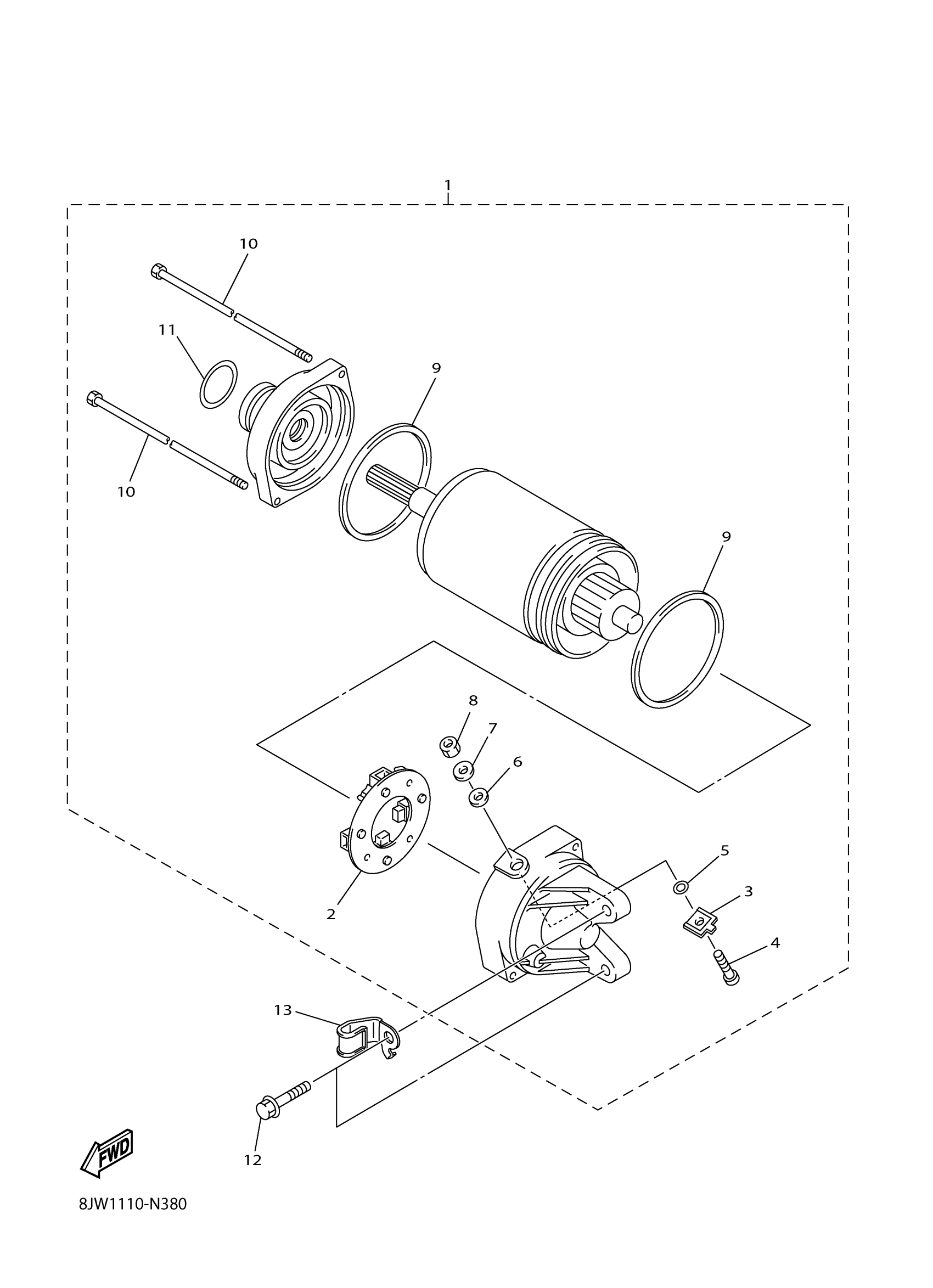

Yamaha SR1NLGPT (SRVIPER LTX GT) 8NF4 2023 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

8GL-81890-01-00

$251.19

2

BRUSH SET

2S3-81801-00-00

$66.68

3

BUSH, TERMINAL

2S3-8182G-00-00

Unavailable

4

BOLT 2

2S3-81828-00-00

Unavailable

5

O-RING (26H)

93210-06632-00

$6.22

6

WASHER, PLAIN

8FA-8181L-00-00

Unavailable

7

WASHER

1D7-81835-00-00

$1.47

8

NUT(650)

95380-06700-00

$5.75

9

GASKET

5PX-81861-00-00

Unavailable

10

SCREW

8ES-81846-01-00

$5.03

11

O-RING (437)

93210-24235-00

$5.34

12

BOLT, FLANGE

95812-08030-00

$3.01

13

CLAMP

90465-08030-00

Unavailable
