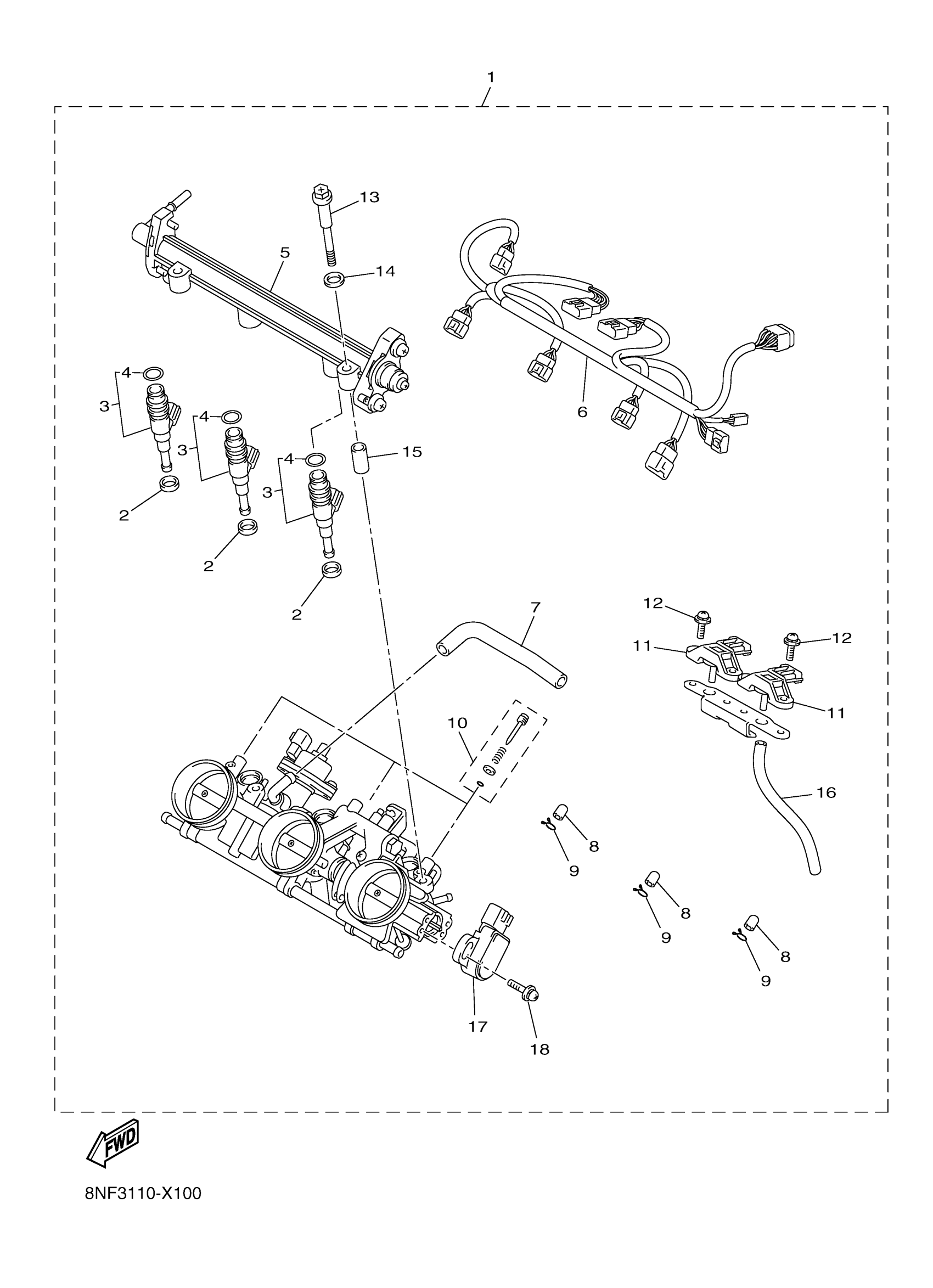

Yamaha SR1NLGNL (SRVIPER L TX GT) 8NF3 2022 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

8JK-13750-01-00

Unavailable

2

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

3

INJECTOR ASSY

8GC-13761-00-00

$257.99

4

O-RING

8GC-13769-00-00

$16.99

5

PIPE INLET ASSEMBLY

8GL-13930-00-00

Unavailable

6

EXTENSION, WIRE HARNESS

8GL-82386-01-00

$214.99

7

HOSE, AIR

8GL-13895-00-00

Unavailable

8

CAP

895-14169-00-00

$5.49

9

CLIP, PIPE

8A7-14139-00-00

$8.99

10

ADJUST SCREW SET

8GL-14503-00-00

Unavailable

11

SENSOR, PRESSURE

2C0-82380-10-00

$168.99

12

SCREW

8GL-14592-00-00

$4.72

13

BOLT 1

8GL-13573-00-00

$14.99

14

WASHER

8GL-13571-00-00

$3.50

15

COLLAR

8GL-14534-00-00

$9.49

16

PIPE

5PW-14349-00-00

Unavailable

17

THROTTLE SENSOR AS

8GL-85885-01-00

Unavailable

18

SCREW

8CC-14216-10-00

Unavailable
