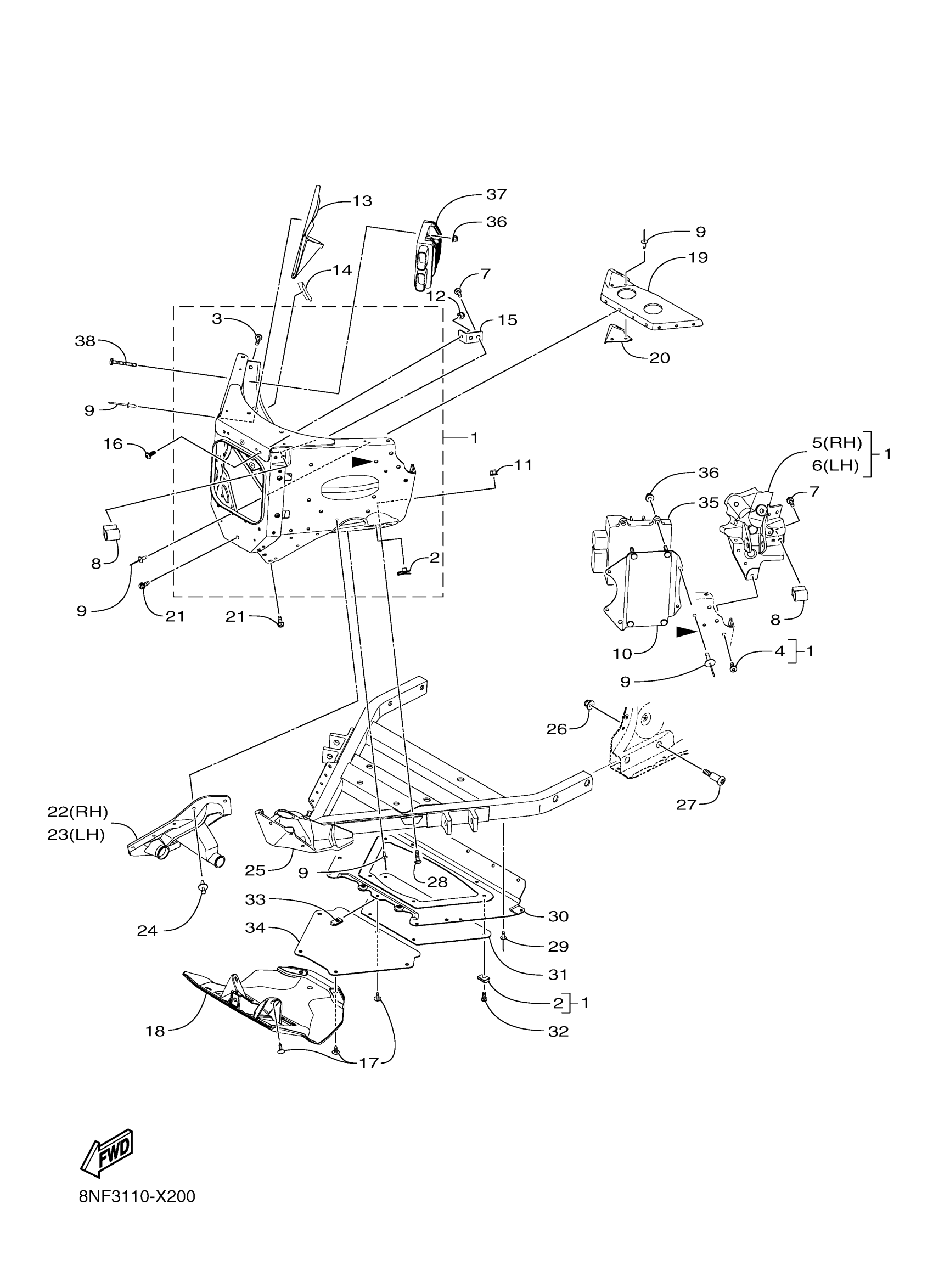

Yamaha SR1NLGNL (SRVIPER L TX GT) 8NF3 2022 FRAME 1 Diagram
#
1
BULKHEAD
8JP-F191A-20-00
Unavailable
2
NUT, CLIP M6
8JP-RA354-00-00
$0.96
3
. SCREW, TAPPING
8JP-RA281-00-00
Unavailable
4
SCREW, M6X1X16
8JP-RA271-00-00
$0.96
5
HOLDER, ABSORBER 2
8JP-F377J-10-00
Unavailable
6
HOLDER, ABSORBER
8JP-F376J-10-00
$136.99
7
BOLT, FLG. M6X1.0X
8JP-RA180-00-00
Unavailable
8
BRACKET, UPPER
8JP-F2219-00-00
Unavailable
9
RIVET, 11
8JP-RA520-00-00
$0.70
10
BRACKET, UNIT
8JP-H5991-00-00
Unavailable
11
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
12
NUT, LOCK 1
8JP-RA379-00-00
$0.54
13
BRACKET, STOPPER S
8JP-F131G-00-00
$33.99
14
TRIM (3 FEET)
8JP-F15B3-00-00
Unavailable
15
GUSSET
8NN-F1138-00-00
Unavailable
16
SCREW
8KC-RA229-00-00
Unavailable
17
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
18
COVER, FRONT
8ND-F2865-00-00
Unavailable
19
REINF.,FRAME FR. 3
8JP-F1922-00-00
Unavailable
20
BRACKET, STEERING
8JP-F1947-00-00
Unavailable
21
SCREW, TAPPING
8JP-RA201-00-00
Unavailable
22
COVER 3
8JP-F198J-00-00
Unavailable
23
COVER 1
8JP-F198F-00-00
Unavailable
24
RIVET, 2
8JP-RA511-00-00
Unavailable
25
FRAME UNDER 1
8KC-F196A-10-00
Unavailable
26
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
27
SCREW, M8X1.25X44.
8JP-RA275-00-00
Unavailable
28
SCREW, M6X1.0X20
8JP-RA258-00-00
Unavailable
29
RIVET, 9
8JP-RA518-00-00
Unavailable
30
FRAME, UNDER 2
8JP-F196E-00-00
Unavailable
31
COVER, UNDER
8JP-F2863-00-00
Unavailable
32
SCREW, M6X1.0X16
8JP-RA255-00-00
Unavailable
33
NUT, CLIP
8JP-RA349-00-00
Unavailable
34
PANEL, UNDER
8JP-F114G-00-00
Unavailable
35
ENGINE CONTROL UNI
8NF-H591A-00-00
Unavailable
36
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
37
RECTIFIER & REGULA
8JP-H1960-00-00
Unavailable
38
SCREW, M6X1.0X25
8JP-RA264-00-00
Unavailable
