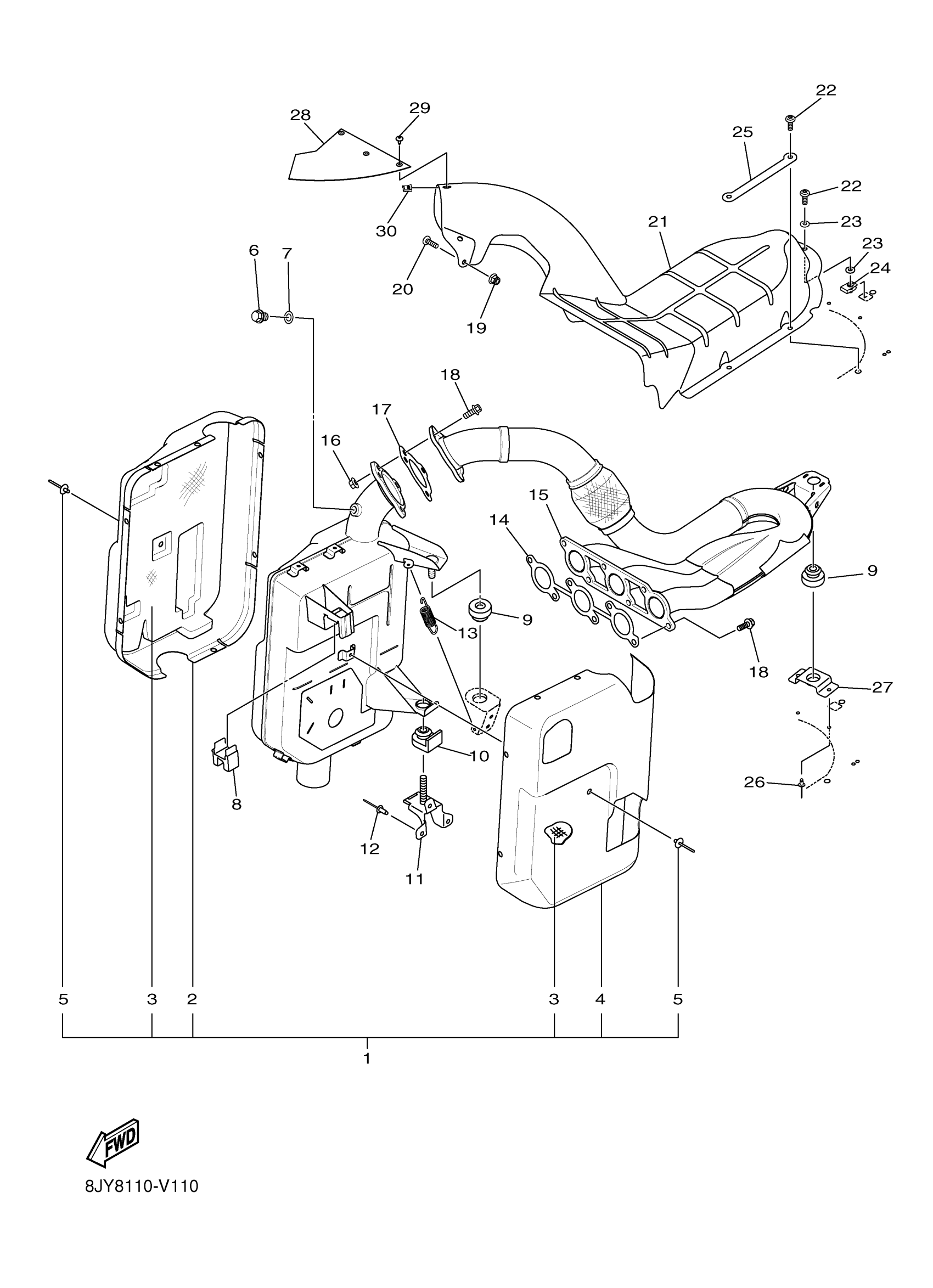

Yamaha SR1NLGNL (SRVIPER L TX GT) 8NF3 2022 EXHAUST Diagram
#
1
SILENCER ASY
8JP-E4750-01-00
$684.99
2
PROTECTOR, MUFFLER
8JP-E4728-00-00
Unavailable
3
MAT 1
8JP-E4733-00-00
$25.99
4
. PROTECTOR, MUFFLER 1
8JP-E4718-00-00
Unavailable
5
RIVET, 3
8JP-RA512-00-00
$1.16
6
PLUG, DRAIN
8JP-F15A1-00-00
$16.99
7
GASKET
8JP-E4536-01-00
$8.49
8
GROMMET, WATER SHU
8JP-E4664-00-00
Unavailable
9
GROMMET
8JP-E5357-00-00
$15.99
10
GROMMET
8JP-E5375-00-00
$9.49
11
BRACKET
8JP-E4744-00-00
Unavailable
12
RIVET, 11
8JP-RA520-10-00
$0.43
13
SPRING, 3
8JP-RAD14-00-00
$5.60
14
GASKET, EXHAUST PIPE
8GL-14613-00-00
$23.99
15
EXHAUST PIPE ASSY
8JP-E4610-10-00
Unavailable
16
NUT, FLG. LOCKING
8JP-RA365-10-00
Unavailable
17
GASKET, EXHAUST PI
8JP-E4623-00-00
Unavailable
18
BOLT, FLG. M8X1.25
8JP-RA184-00-00
Unavailable
19
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
20
SCREW, M6X1.0X25
8JP-RA263-00-00
Unavailable
21
COVER, EXHAUST ASS
8NF-E4627-00-00
Unavailable
22
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
23
WASHER, 1/4X0.625X
8JP-RA441-00-00
Unavailable
24
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
25
PLATE, PROTECTOR 1
8JP-E465R-00-00
Unavailable
26
RIVET, 8
8JP-RA517-00-00
Unavailable
27
BRACKET, 1-1
8JP-E461L-00-00
Unavailable
28
SHIELD, HEAT
8NF-F199H-00-00
Unavailable
29
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
30
NUT, CLIP
8JP-RA349-00-00
Unavailable
