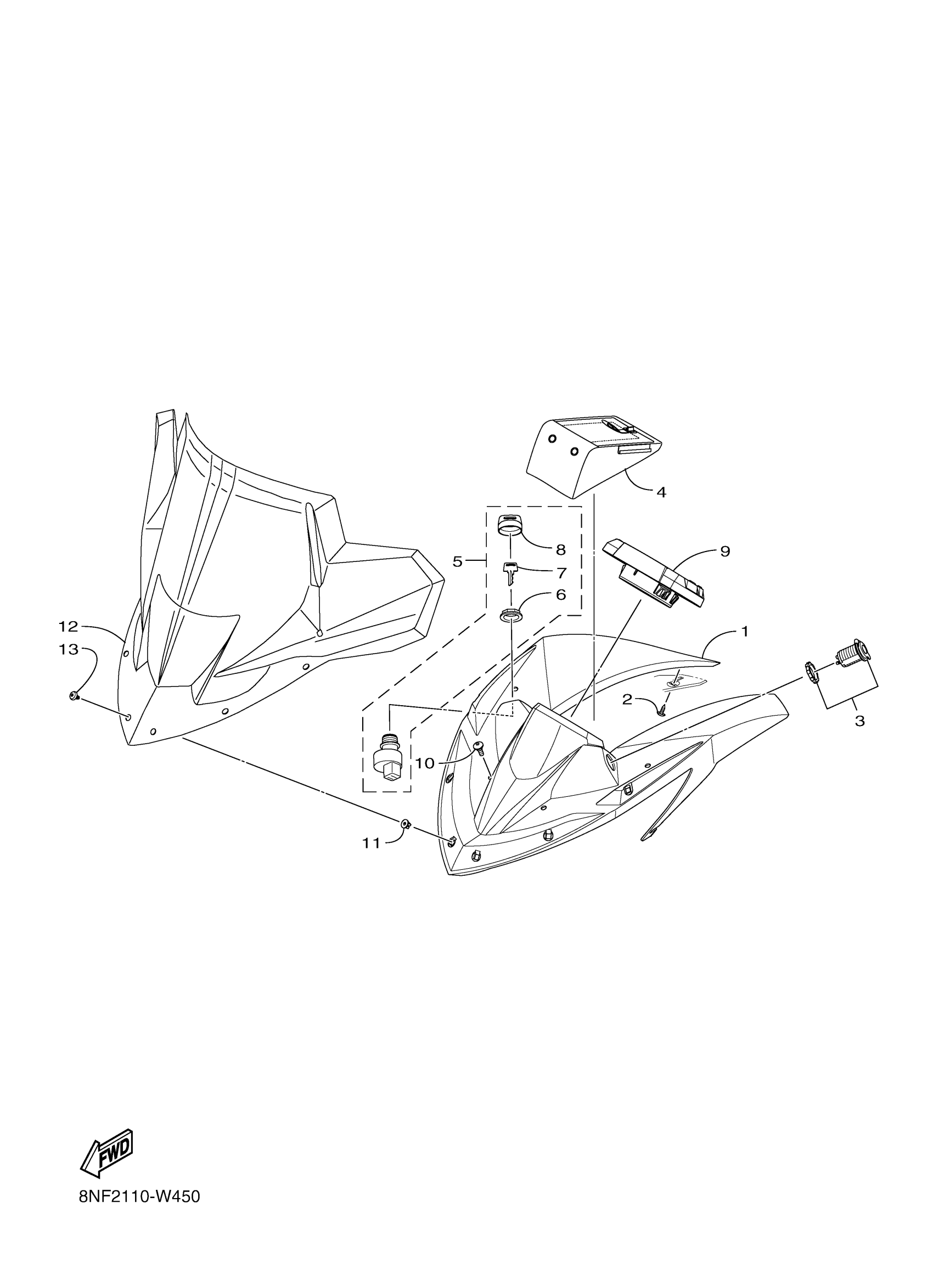

Yamaha SR1NLGMB (SRVIPER L-TX GT) 8NF2 2021 INSTRUMENT PANEL Diagram

PANEL, INSTRUMENT

8JP-K7712-00-00

Unavailable

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

TERMINAL COMP.

8JP-H254B-10-00

$44.99

SRVIPER GOGGLE HOLDER BAG

SMA-8JP53-00-00

Unavailable

MAIN SWITCH ASSY

8JP-H2510-00-00

$53.99

. NUT, MAIN SWITCH

8JP-H2569-00-00

Unavailable

KEY (Y SERIESE, LE

8JP-H2511-00-00

$8.49

KEY (Z SERIES, RIG

8JP-H2511-10-00

$7.49

CAP, KEY

8JP-H2577-01-00

$18.99

SPEEDOMETER ASSY

8JR-H3501-20-00

$578.99

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.86

NUT, INSERT

8JP-RA373-00-00

$1.43

MED SW WINDSHIELD SMK 12"

SMA-8LR96-30-SM

Unavailable

SCREW, TAPPING M6X

8JP-RA280-10-00

$1.86
