Description

Price

1

YTX20HBS YUASA BATTERY - SA

YTX-20HBS-00-00

Unavailable

2

. LABEL, BATTERY

8JP-H2141-00-00

Unavailable

3

. REPAIR PARTS KIT

8JP-F819G-00-00

Unavailable

4

BRACKET, BATTERY 2

8JP-H2158-00-00

$15.99

5

SCREW

8KC-RA229-00-00

$0.54

6

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

7

STARTER RELAY ASSY

8MT-H1940-00-00

$37.99

8

CABLE 1

8JP-H8146-00-00

Unavailable

9

COVER

8JP-H1942-10-00

$5.60

10

. COVER, TERMINAL

8JP-H1916-00-00

Unavailable

11

NUT, WITH WASHER M

8JP-RA375-00-00

$0.48

12

CABLE 2

8JP-H8147-00-00

Unavailable

13

. COVER, TERMINAL

8JP-H1916-00-00

Unavailable

14

COVER

8JP-H1942-10-00

$5.60

15

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

$0.27

16

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

17

WIRE, EARTH LEAD

8JP-H131Y-00-00

Unavailable

18

NUT(650)

95380-06700-00

Unavailable

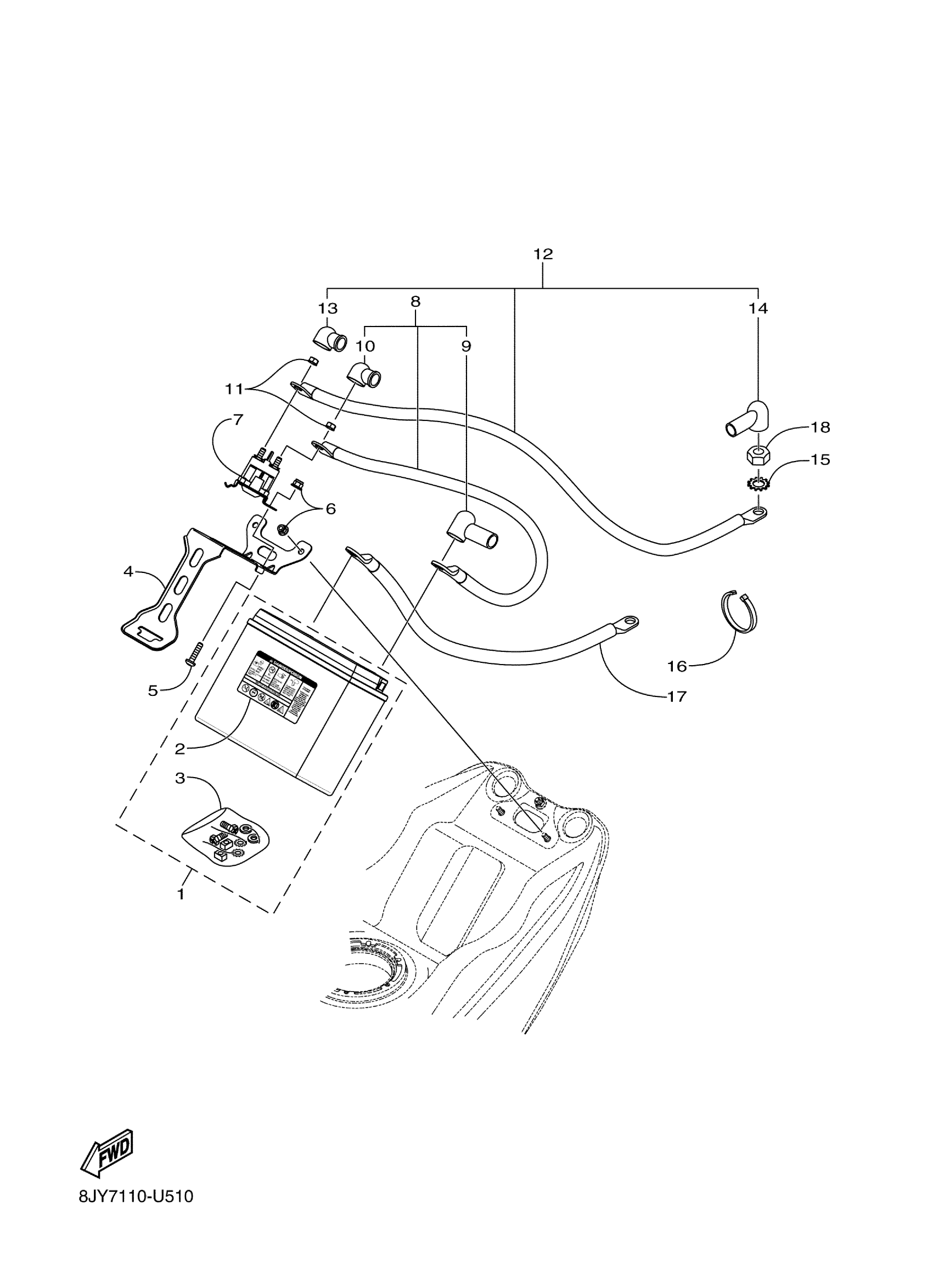

Yamaha SR1NLGMB (SRVIPER L-TX GT) 8NF2 2021 ELECTRICAL 3 Diagram

YTX20HBS YUASA BATTERY - SA

. LABEL, BATTERY

. REPAIR PARTS KIT

BRACKET, BATTERY 2

SCREW

NUT,FLG. M6-1.0

STARTER RELAY ASSY

CABLE 1

COVER

. COVER, TERMINAL

NUT, WITH WASHER M

CABLE 2

. COVER, TERMINAL

COVER

WASHER,LOCK-1/4 EXT TOOTH TYP

TIE, CABLE-8.5/7.5/7.4

WIRE, EARTH LEAD

NUT(650)
