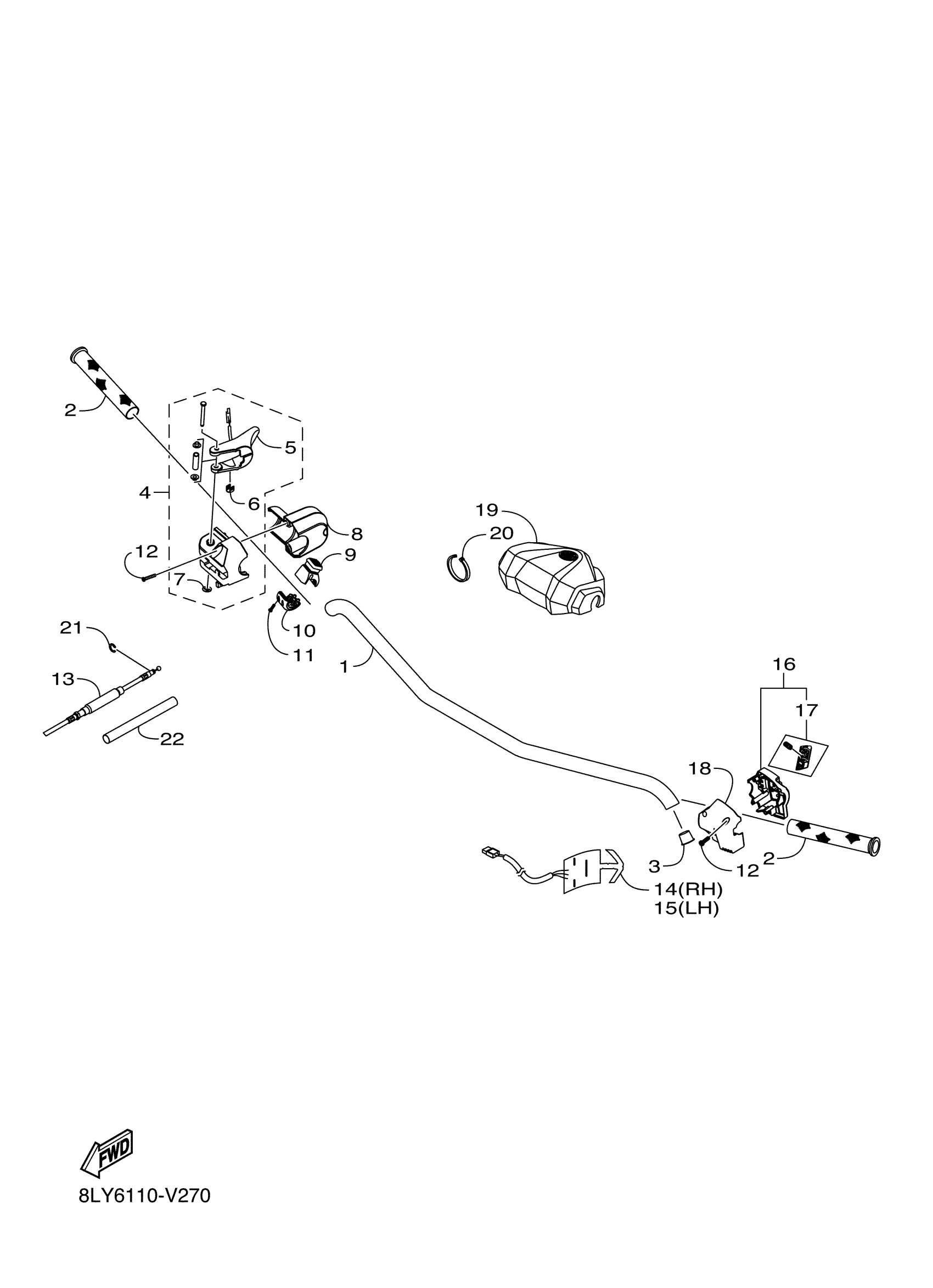

Yamaha SR1NLGLR (SRVIPER L-TX GT) 8NF1 2020 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8LJ-F6111-00-00

$86.99

2

GRIP

8JR-F6241-00-00

$18.99

3

NUT

8JR-F3856-10-00

Unavailable

4

LEVER HOLDER ASSY

8MY-H2720-10-00

$258.99

5

LEVER HOLDER ASSY

8MY-H2720-10-00

$258.99

6

CLIP, 1

8JP-RAC10-10-00

Unavailable

7

NUT, 0.125

8JP-RA346-00-00

$1.64

8

LEVER HOLDER ASSY

8MY-H2710-00-00

$9.49

9

STOP SWITCH ASSY

8MY-H2530-00-00

Unavailable

10

CLAMP

8MY-H2544-00-00

$5.60

11

SCREW

8MY-RA200-00-00

$0.64

12

SCREW, 8-18X0.875

8ML-RA286-00-00

$3.88

13

CABLE, THROTTLE 1

8MY-F6311-00-00

Unavailable

14

GRIP,WARMER

8MY-F626A-00-00

$32.99

15

GRIP,WARMER

8MY-F626A-10-00

$25.99

16

SWITCH, HANDLE 4

8MY-H3972-10-00

Unavailable

17

BUTTON

8MY-H296K-00-00

Unavailable

18

SWITCH, HANDLE 3

8MY-H3973-00-00

Unavailable

19

PROTECTOR, HANDLEB

8JP-F6124-00-00

Unavailable

20

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

20

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

Unavailable

20

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable

21

RING RETAINING

8JM-RAH02-00-00

Unavailable

22

PROTECTOR

8MY-HA7A0-00-00

Unavailable

22

PROTECTOR 1

8MY-HA7A1-00-00

Unavailable
