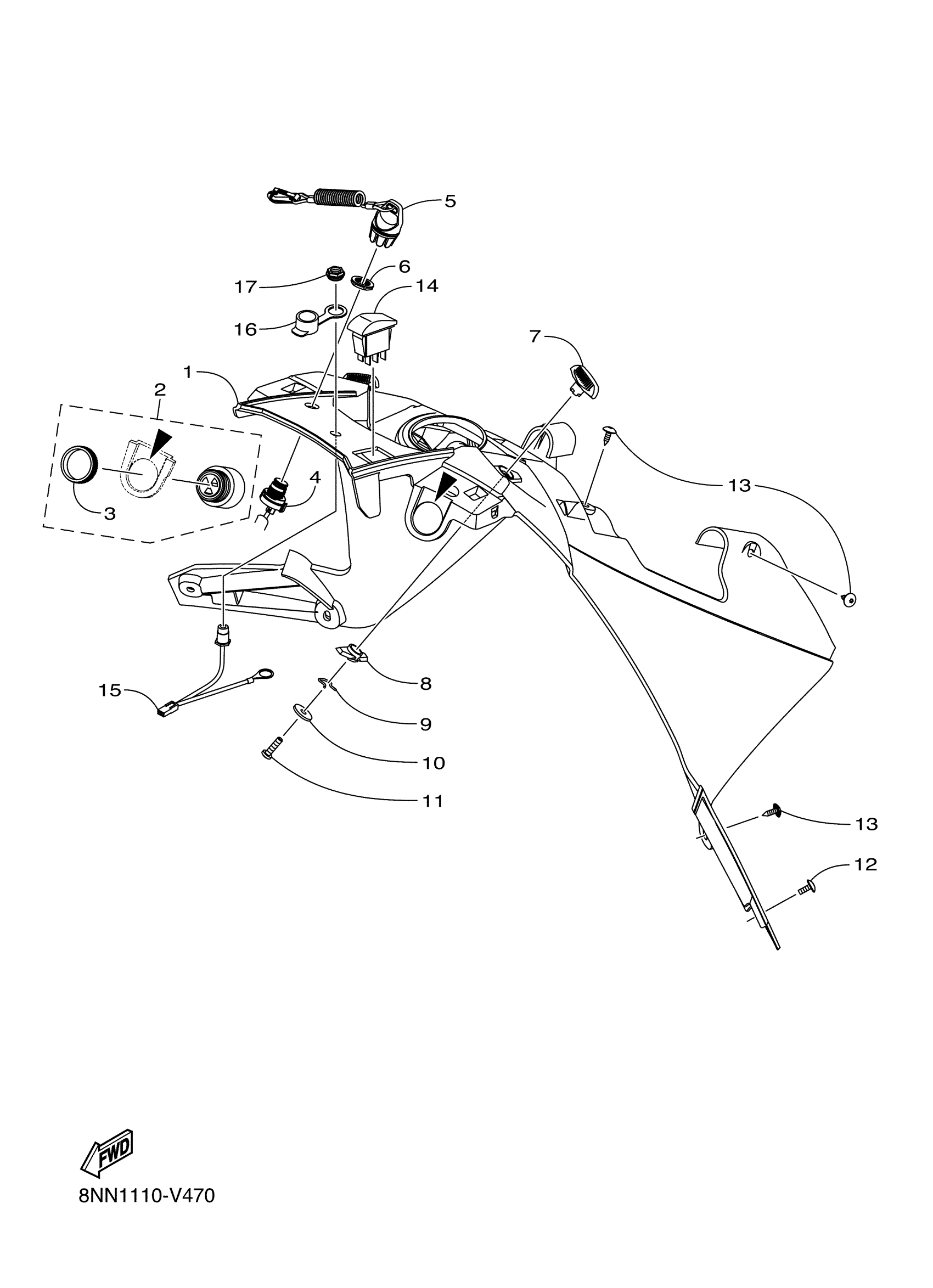

Yamaha SR1NLGLR (SRVIPER L-TX GT) 8NF1 2020 INSTRUMENT PANEL 2 Diagram

#

Description
Price

1

PANEL, INSTRUMENT

8NJ-K7711-00-00

Unavailable

2

ALARM UNIT

8JP-H2564-00-00

$97.99

3

RING, RETAINING

8JP-H4395-00-00

$15.99

4

STOP SWITCH

8MS-H6284-00-00

$69.99

5

CAP, SWITCH

8MS-H2552-00-00

$45.99

6

RING, RETAINING

8MS-H4395-00-00

$2.12

7

KNOB

8KC-K7324-00-00

$1.86

8

PLATE, BACK UP 1

8KC-K7153-00-00

Unavailable

9

CLIP, 6

8JP-RAC15-00-00

$9.49

10

WASHER

8JP-RA429-00-00

$1.16

11

SCREW, 4

8KC-RA238-00-00

Unavailable

12

SCREW, TAPPING 1/4

8JP-RA202-00-00

$1.86

13

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

14

SWITCH

8JP-H2627-10-00

Unavailable

15

PLUG, HEATER

8LJ-H3619-00-00

$40.99

16

COVER, 3

8LJ-K7563-00-00

Unavailable

17

NUT

8LJ-K6169-00-00

Unavailable
