Description

Price

1

HOOD 4

8NF-F198H-00-00

Unavailable

2

NUT, CLIP 10

8JP-RA352-00-00

$1.64

3

DAMPER, NOISE 16

8KC-K7276-00-00

$25.99

4

DAMPER, NOISE 15

8KC-K7275-00-00

$15.99

5

WASHER,FLAT .194X.50X.048

8JM-RA411-00-00

$0.27

6

SEAL, EXT. 1

8ND-G1138-00-00

$42.99

7

PLATE 1

8ND-K8181-00-00

$12.49

8

RIVET, 14

8JP-RA523-00-00

$1.22

9

HOOD 3

8NJ-F197H-00-00

$131.99

10

DAMPER, NOISE 11

8KC-K7271-00-00

$18.99

11

DAMPER, NOISE 12

8KC-K7272-00-00

$16.99

12

DAMPER, NOISE 13

8KC-K7273-00-00

$18.99

13

PLATE, BACK UP 1

8KC-K7153-00-00

Unavailable

14

KNOB

8KC-K7324-00-00

$1.86

15

NUT, CLIP 1/4

8JP-RA350-00-00

$3.18

16

SCREW, 4

8KC-RA238-00-00

Unavailable

17

WASHER

8JP-RA429-00-00

Unavailable

18

CLIP, 6

8JP-RAC15-00-00

Unavailable

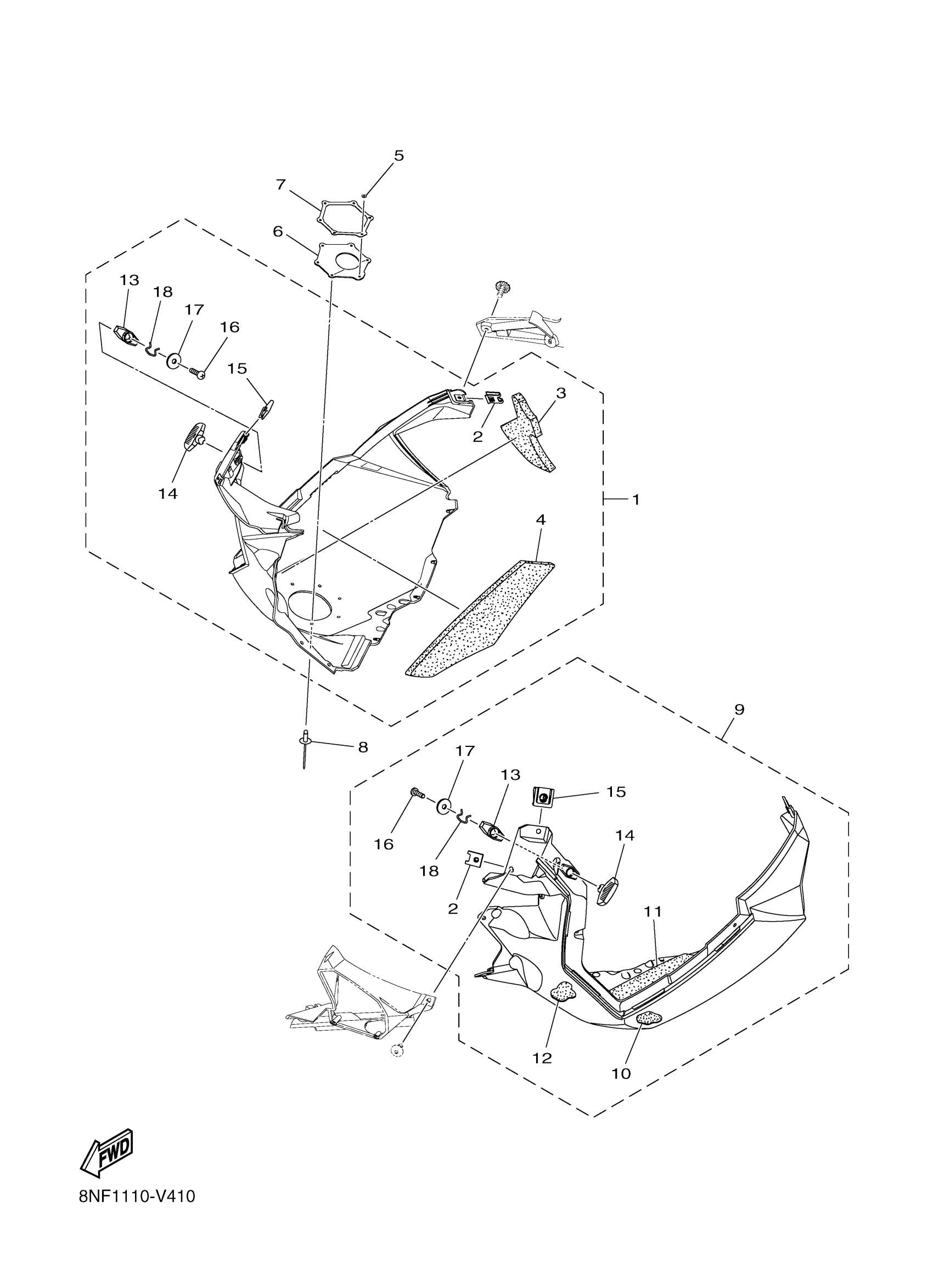

Yamaha SR1NLGLR (SRVIPER L-TX GT) 8NF1 2020 HOOD Diagram

HOOD 4

NUT, CLIP 10

DAMPER, NOISE 16

DAMPER, NOISE 15

WASHER,FLAT .194X.50X.048

SEAL, EXT. 1

PLATE 1

RIVET, 14

HOOD 3

DAMPER, NOISE 11

DAMPER, NOISE 12

DAMPER, NOISE 13

PLATE, BACK UP 1

KNOB

NUT, CLIP 1/4

SCREW, 4

WASHER

CLIP, 6
