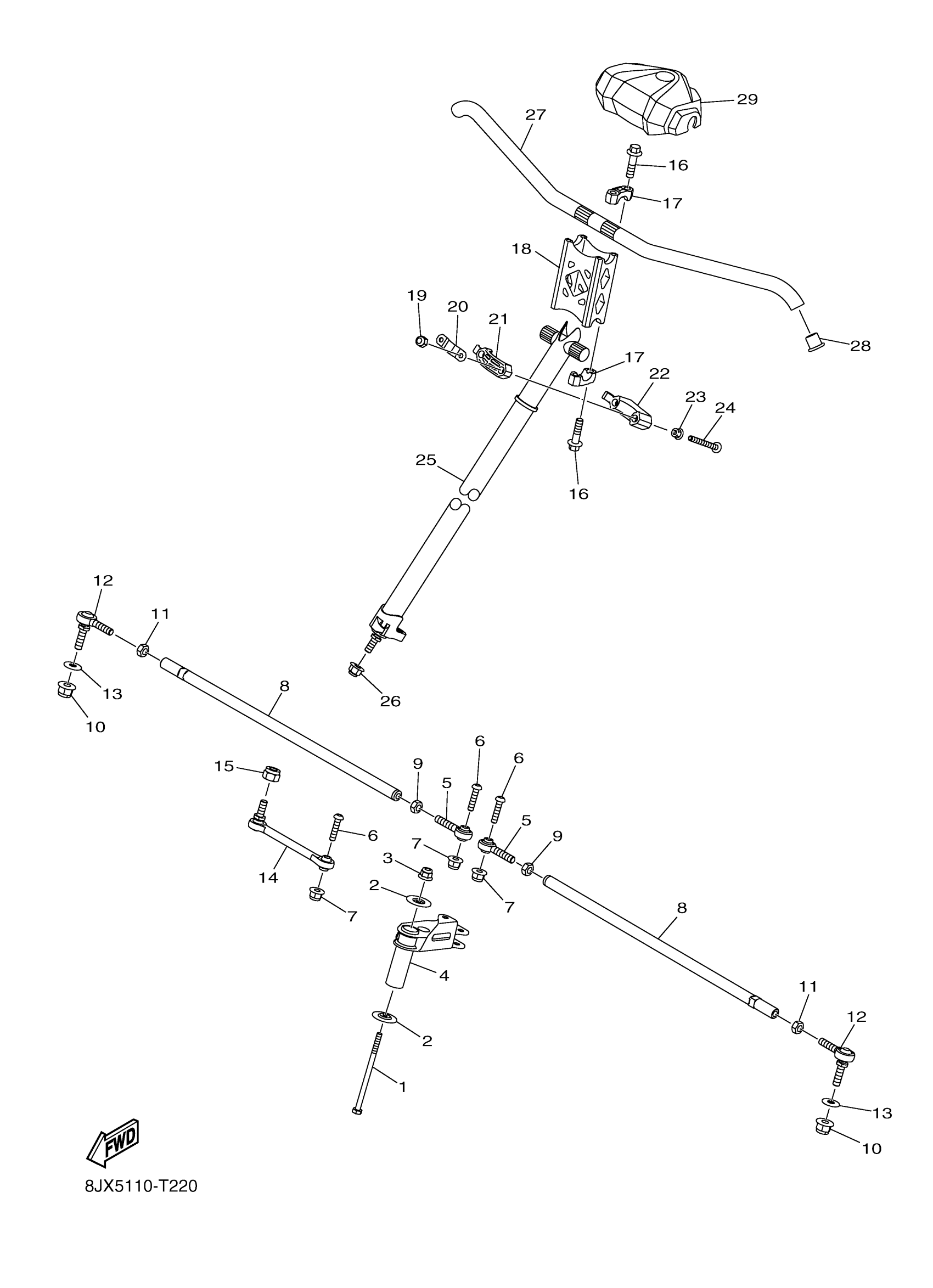

Yamaha SR1NLDJL (SRVIPER L TX DX) 8JX5 2018 STEERING Diagram
#
1
BOLT, HEX. M6X1X10
8JP-RA1B0-00-00
Unavailable
2
WASHER, 1
8JP-RA432-00-00
Unavailable
3
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
4
ARM, PIVOT
8JP-F389G-00-00
Unavailable
5
JOINT, UNIVERSAL 2
8JP-F3845-00-00
Unavailable
6
SCREW, M8X1.25X37
8JP-RA274-00-00
Unavailable
7
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
8
ROD, TIE
8JP-F3831-00-00
Unavailable
9
NUT, HEX. M10X1.25
8JP-RA369-00-00
$0.96
10
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
11
NUT, HEX. M10-1.25
8JP-RA368-00-00
Unavailable
12
JOINT, UNIVERSAL 3
8JP-F3847-00-00
$67.99
13
WASHER, PLANE M10X
8JP-RA454-00-00
$1.16
14
ROD, STEERING RELA
8JP-F3821-00-00
Unavailable
15
NUT, HEX. LOCKING
8JP-RA371-00-00
$1.16
16
BOLT, FLG. M8X1.25
8JP-RA188-00-00
Unavailable
17
HOLDER, HANDLE UPP
8JP-F3814-10-00
Unavailable
18
JOINT
8JP-F381B-10-00
Unavailable
19
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
20
HOLDER, BEARING
8JP-F3872-00-00
Unavailable
21
BEARING,STEERING
8KG-F3812-00-00
Unavailable
22
BEARING,STEERING
8KG-F3812-10-00
Unavailable
23
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
24
SCREW, 10
8JP-RA299-00-00
Unavailable
25
COLUMN, STEERING 2
8JP-F3813-01-00
Unavailable
26
LOCK NUT
8JP-RA378-01-00
Unavailable
27
HANDLEBAR
8LJ-F6111-00-00
Unavailable
28
NUT
8JR-F3856-10-00
Unavailable
29
PROTECTOR, HANDLEB
8JP-F6124-00-00
Unavailable
