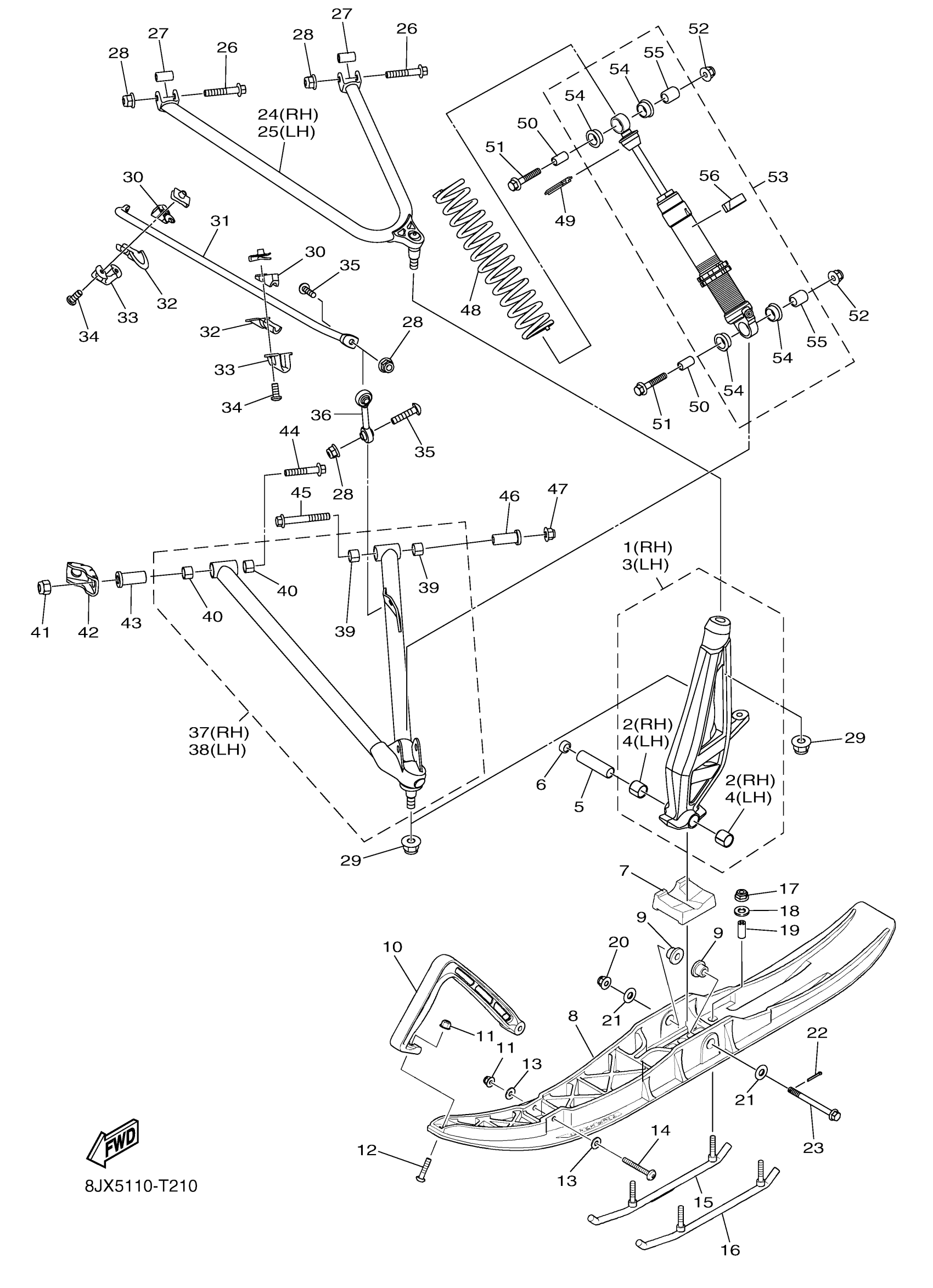

Yamaha SR1NLDJL (SRVIPER L TX DX) 8JX5 2018 SKI Diagram
#
1
KNUCKLE, STEERING
8JP-F3521-10-00
$346.99
2
BUSH, 12DU12
8JP-RA806-00-00
$10.49
3
KNUCKLE, STEERING
8JP-F3511-10-00
$346.99
4
BUSH, 12DU12
8JP-RA806-00-00
$10.49
5
COLLAR, 75
8JP-RA731-00-00
$31.99
6
COLLAR, 23
8KN-RA737-10-00
$0.37
7
STOPPER 1
8NS-F3743-00-00
$22.99
8
SKI,SRV TUNER GEN III BLACK
SMA-8HLDS-00-BK
Unavailable
9
. COLLAR 1
8EX-F3754-00-00
Unavailable
10
SKI HANDLE,TUNER GEN III BL
SMA-8LH89-00-BL
Unavailable
11
NUT
8LH-F3778-00-00
Unavailable
12
BOLT, REINFORCEMENT HEAD 1
8LH-F3755-00-00
Unavailable
13
WASHER 1
8LH-F3737-00-00
Unavailable
14
BOLT, REINFORCEMENT HEAD 2
8LH-F3756-00-00
Unavailable
15
RUNNER 1
8LH-F3731-00-00
Unavailable
16
RUNNER 2
8LH-F3732-00-00
Unavailable
17
NUT, NYLON
95717-08300-00
Unavailable
18
WASHER, PLATE
90201-08053-00
Unavailable
19
BUSH, SKI 1
8KN-F3751-00-00
Unavailable
20
NUT, S/L FLANGE
95602-10200-00
Unavailable
21
WASHER, PLATE
90201-10043-00
Unavailable
22
PIN, COTTER
91490-20025-00
Unavailable
23
BOLT, FLANGE
90105-10070-00
Unavailable
24
ARM, FRONT UPPER
8JP-F355A-30-00
Unavailable
25
ARM, FRONT UPPER
8JP-F354A-30-00
Unavailable
26
BOLT, FLG. M8X1.25
8JP-RA190-00-00
Unavailable
27
COLLAR, 8
8JP-RA720-00-00
Unavailable
28
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
29
NUT, FLG. LOCKING
8JP-RA362-00-00
Unavailable
30
HOLDER 2
8JP-F3867-00-00
Unavailable
31
BAR, STABILIZER FR
8JP-F386E-00-00
Unavailable
32
BUSH, STABILIZER F
8JP-F386G-00-00
Unavailable
33
HOLDER, STABILIZER
8JP-F386C-00-00
Unavailable
34
SCREW, 1
8JP-RA235-00-00
Unavailable
35
SCREW, 1
8JP-RA235-10-00
Unavailable
36
LINK, STABILIZER F
8JP-F386F-00-00
Unavailable
37
ARM,FR. LWR. RH.
8JP-F358A-30-00
Unavailable
38
ARM,FR. LWR. LH.
8JP-F357A-30-00
Unavailable
39
BUSH, 10DU10
8JP-RA807-00-00
Unavailable
40
BUSH, 1815DU
8JP-RA811-00-00
Unavailable
41
NUT, FLG. LOCKING
8JP-RA361-00-00
Unavailable
42
ARM, 1
8JP-F3543-00-00
Unavailable
43
COLLAR, 9
8JP-RA721-10-00
Unavailable
44
BOLT, FLG. M12X1.2
8JP-RA1A7-00-00
Unavailable
45
BOLT, FLG. M10-1.2
8JP-RA194-20-00
Unavailable
46
COLLAR, 7
8JP-RA719-00-00
Unavailable
47
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
48
SPRING
8LJ-F3351-00-00
Unavailable
49
GUIDE, SPRING 1
8JP-F2214-00-00
Unavailable
50
COLLAR, 12
8JP-RA724-00-00
Unavailable
51
BOLT, FLG. M10X1.2
8JP-RA1A3-00-00
Unavailable
52
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
53
DAMPER ASSY
8JP-F330E-10-00
Unavailable
54
BUSH, 3
8JP-RA804-00-00
Unavailable
55
COLLAR, 14.5
8JP-RA728-00-00
Unavailable
56
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
