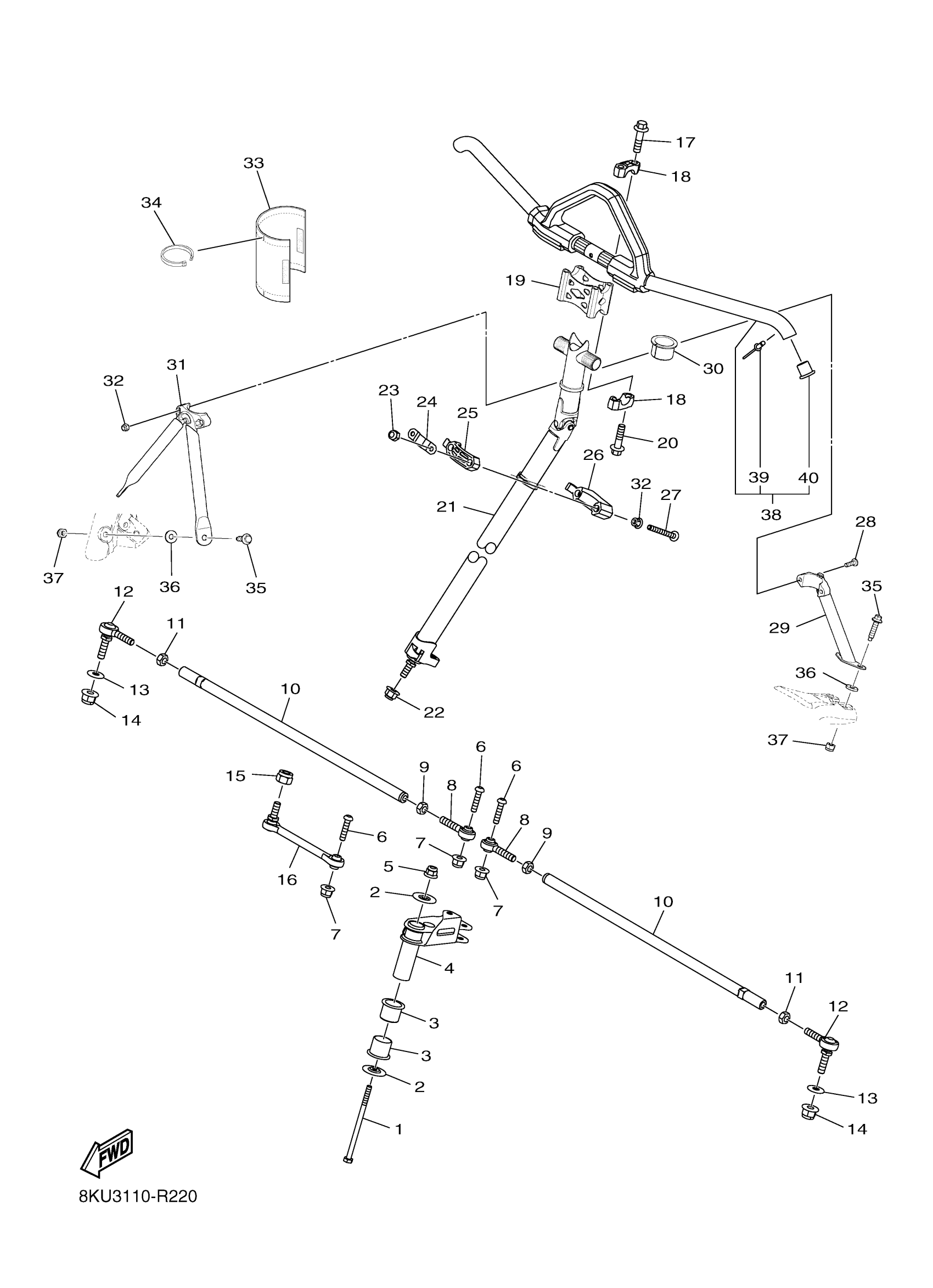

Yamaha SR1EML62GL (SRVIPER M TX 162 LE) 8KU6 2016 STEERING Diagram
#
1
BOLT, HEX. M6X1X10
8JP-RA1B0-00-00
Unavailable
2
WASHER, 1
8JP-RA432-00-00
Unavailable
3
BUSH, 7
8JP-RA816-00-00
Unavailable
4
ARM, PIVOT
8JP-F389G-00-00
Unavailable
5
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
6
SCREW, M8X1.25X37
8JP-RA274-00-00
Unavailable
7
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
8
JOINT, UNIVERSAL 2
8JP-F3845-00-00
Unavailable
9
NUT, HEX. M10X1.25
8JP-RA369-00-00
$0.96
10
ROD, TIE
8KU-F3831-00-00
Unavailable
11
NUT, HEX. M10-1.25
8JP-RA368-00-00
Unavailable
12
JOINT, UNIVERSAL 3
8JP-F3847-00-00
$67.99
13
WASHER, PLANE M10X
8JP-RA454-00-00
$1.16
14
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
15
NUT, HEX. LOCKING
8JP-RA371-00-00
$1.16
16
ROD, STEERING RELA
8JP-F3821-00-00
Unavailable
17
BOLT, FLG. M8X1.25
8JP-RA188-00-00
Unavailable
18
HOLDER, HANDLE UPP
8JP-F3814-10-00
Unavailable
19
JOINT
8KG-F381B-00-00
Unavailable
20
BOLT, FLG. M8X1.25
8JP-RA188-00-00
Unavailable
21
COLUMN,STEERING 2
8KG-F3813-10-00
Unavailable
22
LOCK NUT
8JP-RA378-01-00
Unavailable
23
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
24
HOLDER, BEARING
8JP-F3872-00-00
Unavailable
25
BEARING,STEERING
8KG-F3812-00-00
Unavailable
26
BEARING,STEERING
8KG-F3812-10-00
Unavailable
27
SCREW, 10
8JP-RA299-00-00
Unavailable
28
BOLT, FLANGE
8JP-RA1B4-10-00
Unavailable
29
BRACKET, STEERING
8KR-F1957-00-00
Unavailable
30
BUSH, 7
8KR-RA816-00-00
Unavailable
31
BRACKET, STEERING 1
8KR-F1947-00-00
Unavailable
32
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
33
COVER, STEERING
8KR-F3818-00-00
Unavailable
34
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
35
BOLT, FLG. M8X1.25
8KU-RA187-00-00
Unavailable
36
WASHER, 9
8KR-RA466-00-00
Unavailable
37
NUT, HEX. LOCKING
8JP-RA372-00-00
Unavailable
38
HANDLEBAR
8JR-F6111-10-00
Unavailable
39
RIVET, 8
8JP-RA517-00-00
Unavailable
40
BRKT, FR CUSHION 4
8JR-F3856-00-00
Unavailable
