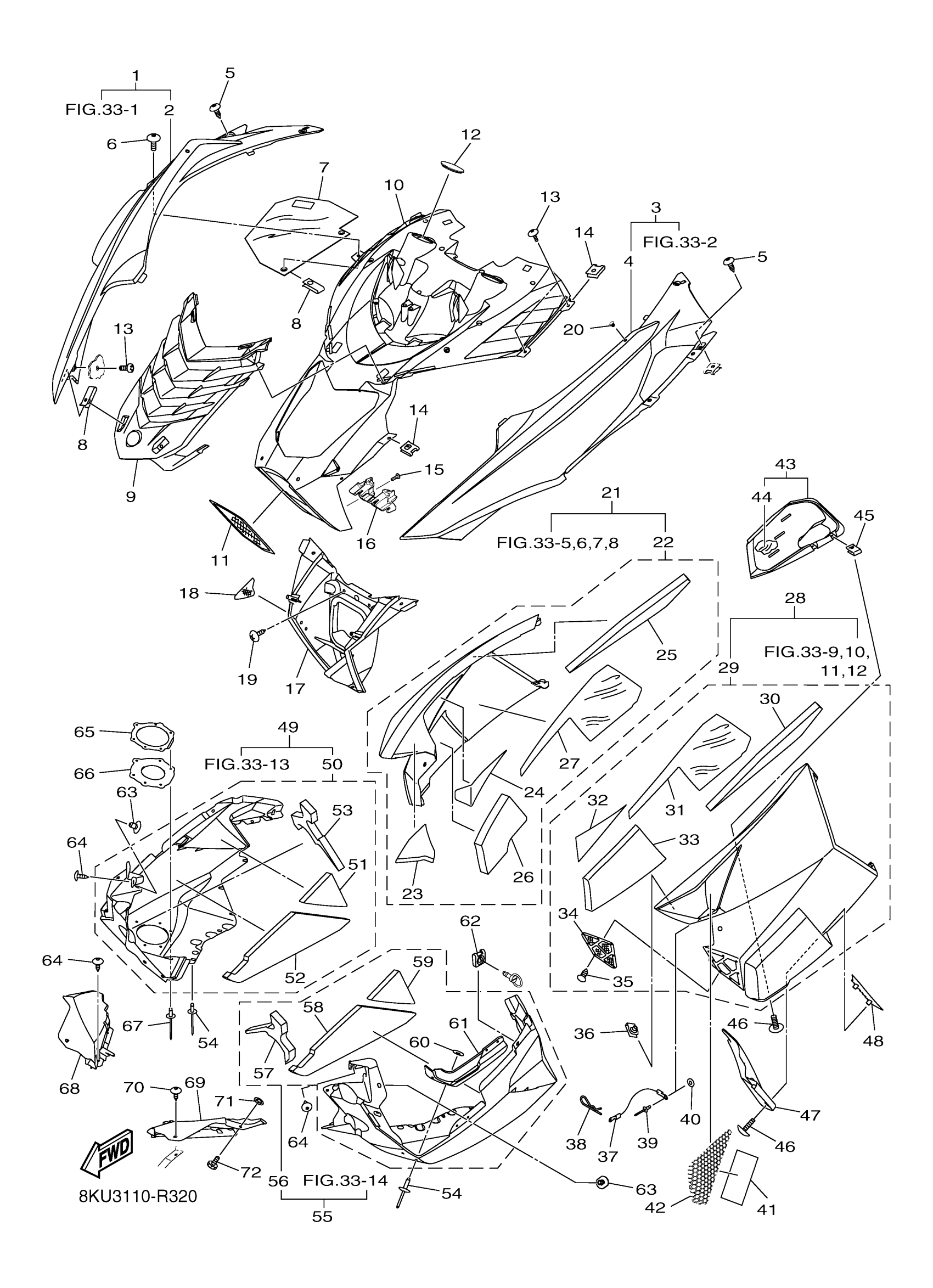

Yamaha SR1EML62GL (SRVIPER M TX 162 LE) 8KU6 2016 SHROUD Diagram
#
1
HOOD 4
8JW-K7122-20-00
$196.99
2
HOOD 4
8JW-K7122-20-00
$196.99
3
HOOD 3
8JW-K7121-20-00
$187.99
4
HOOD 3
8JW-K7121-20-00
$187.99
5
SCREW, TAPPING 1/4
8KC-RA202-00-00
$1.75
6
SCREW, 10-12X1.00
8KC-RA288-00-00
$4.29
7
SHIELD, HEAT
8JP-F199H-00-00
Unavailable
8
NUT, CLIP 10
8JP-RA351-00-00
Unavailable
9
PANEL, CONSOLE 1
8JP-F837L-00-00
Unavailable
10
SHROUD
8JP-K7111-00-00
Unavailable
11
GRILL, FRONT
8JP-K815R-00-00
$26.99
12
CAP, PLUG
8JP-H2371-00-00
$8.49
13
SCREW, TAPPING 1/4
8JP-RA202-00-00
$1.86
14
NUT, CLIP 10
8JP-RA352-00-00
$1.64
15
SCREW, 13
8JP-RA2A2-00-00
$0.43
16
BRACKET 1
8JP-F194X-00-00
Unavailable
17
DUCT, INTAKE
8JP-R1311-01-00
Unavailable
18
TAPE, REFLECTOR
8JP-H5133-00-00
Unavailable
19
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
20
RIVET, 1
8KG-RA506-00-00
Unavailable
21
SHELL SIDE PANEL A
8JW-K8140-30-00
Unavailable
22
SHELL SIDE PANEL A
8JW-K8140-30-00
Unavailable
23
.. DAMPER, NOISE 17
8JP-K7277-00-00
Unavailable
24
.. PROTECTOR 1
8JP-K7551-00-00
Unavailable
25
DAMPER, NOISE 19
8JP-K7279-00-00
Unavailable
26
DAMPER, NOISE 18
8JP-K7278-00-00
Unavailable
27
PROTECTOR 2
8JP-K7552-00-00
Unavailable
28
SHELL SIDE PANEL A
8JW-K8130-30-00
Unavailable
29
SHELL SIDE PANEL A
8JW-K8130-30-00
Unavailable
30
.. DAMPER, NOISE 13
8JP-K7273-00-00
Unavailable
31
.. DAMPER, NOISE 14
8JP-K7274-00-00
Unavailable
32
.. DAMPER, NOISE 15
8JP-K7275-00-00
Unavailable
33
.. DAMPER, NOISE 16
8JP-K7276-00-00
Unavailable
34
SCREEN
8JP-F6234-00-00
Unavailable
35
RIVET, 1
8JP-RA510-00-00
Unavailable
36
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
37
WIRE
8JP-F1654-00-00
Unavailable
38
CLIP, 5
8JP-RAC14-00-00
Unavailable
39
RIVET, 6
8JP-RA515-00-00
Unavailable
40
WASHER, 8X0.375X0.
8JP-RA451-00-00
Unavailable
41
TAPE,ALUM FOIL - 6" X 30 FT
8JM-F199H-00-00
Unavailable
42
TAPE,5
8JR-K717J-00-00
Unavailable
43
DUCT
8JP-K7194-00-00
Unavailable
44
. PROTECTOR 3
8JP-K7553-00-00
Unavailable
45
NUT, CLIP 10
8JP-RA351-00-00
Unavailable
46
SCREW, TAPPING 1/4
8JP-RA202-00-00
$1.86
47
DEFLECTOR 1
8JP-F4131-00-00
Unavailable
48
DEFLECTOR 2
8JP-F4132-00-00
Unavailable
49
HOOD 2
8KN-F1983-00-00
Unavailable
50
HOOD 4
8KN-F198H-00-00
Unavailable
51
.. PROTECTOR 4
8JP-K7554-00-00
Unavailable
52
.. PROTECTOR 5
8JP-K7555-00-00
Unavailable
53
PROTECTOR 6
8JP-K7556-00-00
Unavailable
54
RIVET, 14
8JP-RA523-00-00
Unavailable
55
HOOD 1
8KN-F1982-00-00
Unavailable
56
. HOOD 3
8KN-F197H-00-00
Unavailable
57
PROTECTOR 1
8JP-K811V-00-00
Unavailable
58
PROTECTOR 2
8JP-K811W-00-00
Unavailable
59
.. PROTECTOR 3
8JP-K811X-00-00
Unavailable
60
WASHER,FLAT .194X.50X.048
8JM-RA411-00-00
Unavailable
61
.. REINFORCEMENT 1
8JP-K8121-00-00
Unavailable
62
NUT, CLIP 1/4
8JP-RA350-00-00
Unavailable
63
RIVET, 4
8JP-RA513-00-00
Unavailable
64
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
65
PLATE 1
8JP-K8181-00-00
Unavailable
66
SEAL, EXT. 1
8JP-G1138-00-00
Unavailable
67
RIVET, BLIND-LF SS56 BLACK
8JM-RA502-00-00
Unavailable
68
PATCH 2
8JP-F1962-00-00
Unavailable
69
PATCH 1
8JP-F1961-00-00
Unavailable
70
SCREW, TAPPING 1/4
8KC-RA202-00-00
$1.75
71
NUT, 3/16
8JP-RA348-00-00
Unavailable
72
SCREW, THUMB M5X0.8X20
8JP-RA243-00-00
Unavailable
