Description

Price

1

SILENCER ASY

8JP-E4750-01-00

$684.99

2

PROTECTOR, MUFFLER

8JP-E4728-00-00

Unavailable

3

MAT 1

8JP-E4733-00-00

$25.99

4

. PROTECTOR, MUFFLER 1

8JP-E4718-00-00

Unavailable

5

RIVET, 3

8JP-RA512-00-00

$1.16

6

O2 SENSOR

8JP-H592A-01-00

$161.99

7

GROMMET, WATER SHU

8JP-E4664-00-00

Unavailable

8

GROMMET

8JP-E5357-00-00

$15.99

9

GROMMET

8JP-E5375-00-00

$9.49

10

BRACKET

8JP-E4744-00-00

Unavailable

11

RIVET, 12

8JP-RA521-00-00

$1.75

12

SPRING, 3

8JP-RAD14-00-00

$5.60

13

GASKET, EXHAUST PIPE

8GL-14613-00-00

$23.99

14

EXHAUST PIPE ASSY

8JP-E4610-10-00

Unavailable

15

NUT, FLG. LOCKING

8JP-RA365-00-00

$2.12

16

GASKET, EXHAUST PI

8JP-E4623-00-00

Unavailable

17

BOLT, FLG. M8X1.25

8JP-RA184-00-00

Unavailable

18

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

19

SCREW, M6X1.0X25

8JP-RA263-00-00

Unavailable

20

COVER, EXHAUST

8JP-E4627-00-00

Unavailable

21

SCREW, 11

8JP-RA2A0-00-00

Unavailable

22

WASHER, 1/4X0.625X

8JP-RA441-00-00

Unavailable

23

NUT, CLIP M5

8JP-RA353-00-00

Unavailable

24

PLATE, PROTECTOR 1

8JP-E465R-00-00

Unavailable

25

RIVET, 8

8JP-RA517-00-00

Unavailable

26

BRACKET, 1-1

8JP-E461L-00-00

Unavailable

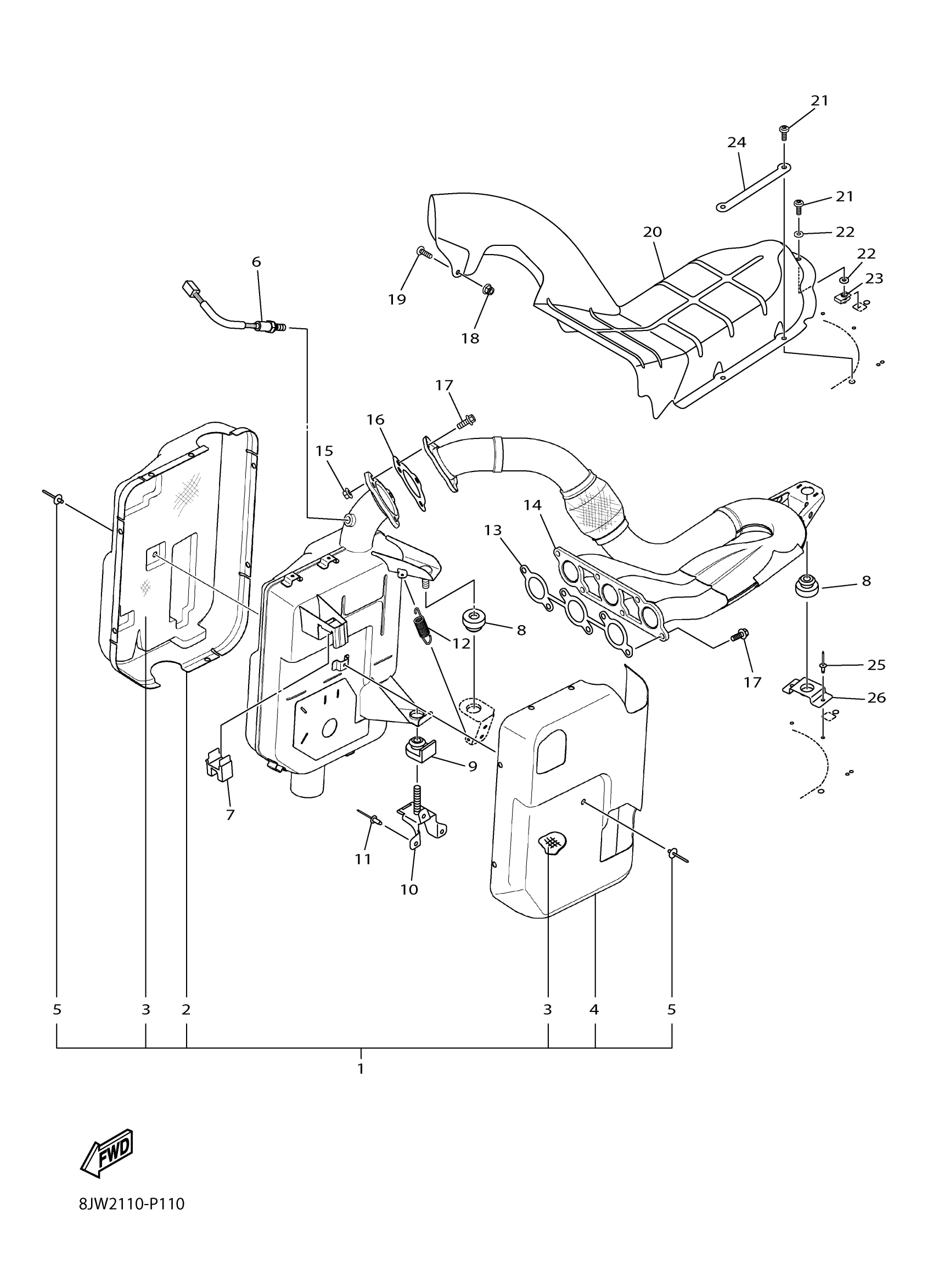

Yamaha SR1EML62GL (SRVIPER M TX 162 LE) 8KU6 2016 EXHAUST Diagram

SILENCER ASY

PROTECTOR, MUFFLER

MAT 1

. PROTECTOR, MUFFLER 1

RIVET, 3

O2 SENSOR

GROMMET, WATER SHU

GROMMET

GROMMET

BRACKET

RIVET, 12

SPRING, 3

GASKET, EXHAUST PIPE

EXHAUST PIPE ASSY

NUT, FLG. LOCKING

GASKET, EXHAUST PI

BOLT, FLG. M8X1.25

NUT,FLG. M6-1.0

SCREW, M6X1.0X25

COVER, EXHAUST

SCREW, 11

WASHER, 1/4X0.625X

NUT, CLIP M5

PLATE, PROTECTOR 1

RIVET, 8

BRACKET, 1-1
