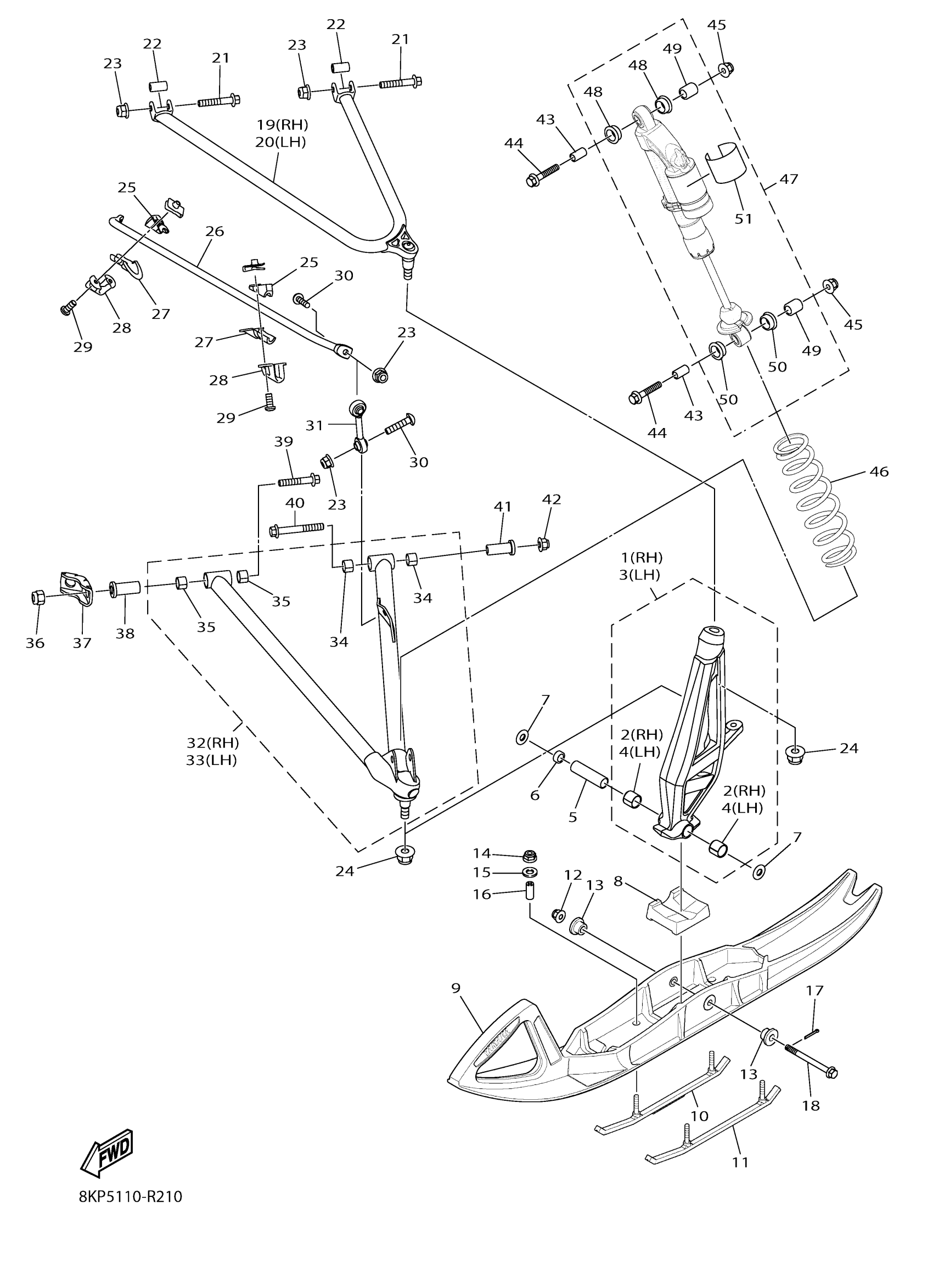

Yamaha SR1ELLGL (SRVIPER L TX LE) 8KP5 2016 SKI Diagram
#
1
KNUCKLE, STEERING
8JP-F3521-10-00
$346.99
2
BUSH, 12DU12
8JP-RA806-00-00
$10.49
3
KNUCKLE, STEERING
8JP-F3511-10-00
$346.99
4
BUSH, 12DU12
8JP-RA806-00-00
$10.49
5
COLLAR, 21
8KN-RA736-00-00
Unavailable
6
COLLAR, 23
8KN-RA737-00-00
Unavailable
7
WASHER, PLATE
90201-10043-00
$2.22
8
STOPPER 1
8NS-F3743-00-00
$22.99
9
SKI 1
8KN-F3711-00-00
Unavailable
10
RUNNER 1
8LH-F3731-00-00
Unavailable
11
RUNNER 2
8LH-F3732-00-00
Unavailable
12
NUT, S/L FLANGE
95602-10200-00
$4.82
13
. COLLAR 1
8EX-F3754-00-00
Unavailable
14
NUT, NYLON
95717-08300-00
$2.70
15
WASHER, PLATE
90201-08053-00
$5.60
16
BUSH, SKI 1
8KN-F3751-00-00
Unavailable
17
PIN, COTTER
91490-20025-00
Unavailable
18
BOLT, FLANGE
90105-10070-00
Unavailable
19
ARM, FRONT UPPER
8JP-F355A-20-00
Unavailable
20
ARM, FRONT UPPER
8JP-F354A-20-00
Unavailable
21
BOLT, FLG. M8X1.25
8JP-RA190-00-00
Unavailable
22
COLLAR, 8
8JP-RA720-00-00
Unavailable
23
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
24
NUT, FLG. LOCKING
8JP-RA362-00-00
Unavailable
25
HOLDER 2
8JP-F3867-00-00
Unavailable
26
BAR, STABILIZER FR
8JP-F386E-00-00
Unavailable
27
BUSH, STABILIZER F
8JP-F386G-00-00
Unavailable
28
HOLDER, STABILIZER
8JP-F386C-00-00
Unavailable
29
SCREW, 1
8JP-RA235-00-00
Unavailable
30
SCREW, M8X1.25X35
8JP-RA273-00-00
Unavailable
31
LINK, STABILIZER F
8JP-F386F-00-00
Unavailable
32
ARM,FR. LWR. RH.
8JP-F358A-20-00
Unavailable
33
ARM,FR. LWR. LH.
8JP-F357A-20-00
Unavailable
34
BUSH, 10DU10
8JP-RA807-00-00
Unavailable
35
BUSH, 1815DU
8JP-RA811-00-00
Unavailable
36
NUT, FLG. LOCKING
8JP-RA361-00-00
Unavailable
37
ARM, 1
8JP-F3543-00-00
Unavailable
38
COLLAR, 9
8JP-RA721-00-00
Unavailable
39
BOLT, FLG. M12X1.2
8JP-RA1A7-00-00
Unavailable
40
BOLT, FLG. M10X1.2
8JP-RA1A4-00-00
Unavailable
41
COLLAR, 7
8JP-RA719-00-00
Unavailable
42
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
43
COLLAR, 12
8JP-RA724-00-00
Unavailable
44
BOLT, FLG. M10X1.2
8JP-RA1A3-00-00
Unavailable
45
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
46
SPRING
8JW-F3351-00-00
Unavailable
47
DAMPER ASSY
8JW-F330E-30-00
Unavailable
48
BUSH, 8
8JP-RA817-00-00
Unavailable
49
COLLAR, 15
8JP-RA732-00-00
Unavailable
50
BUSH, 8
8JP-RA817-00-00
Unavailable
51
LABEL 6
8JW-F151J-00-00
Unavailable
