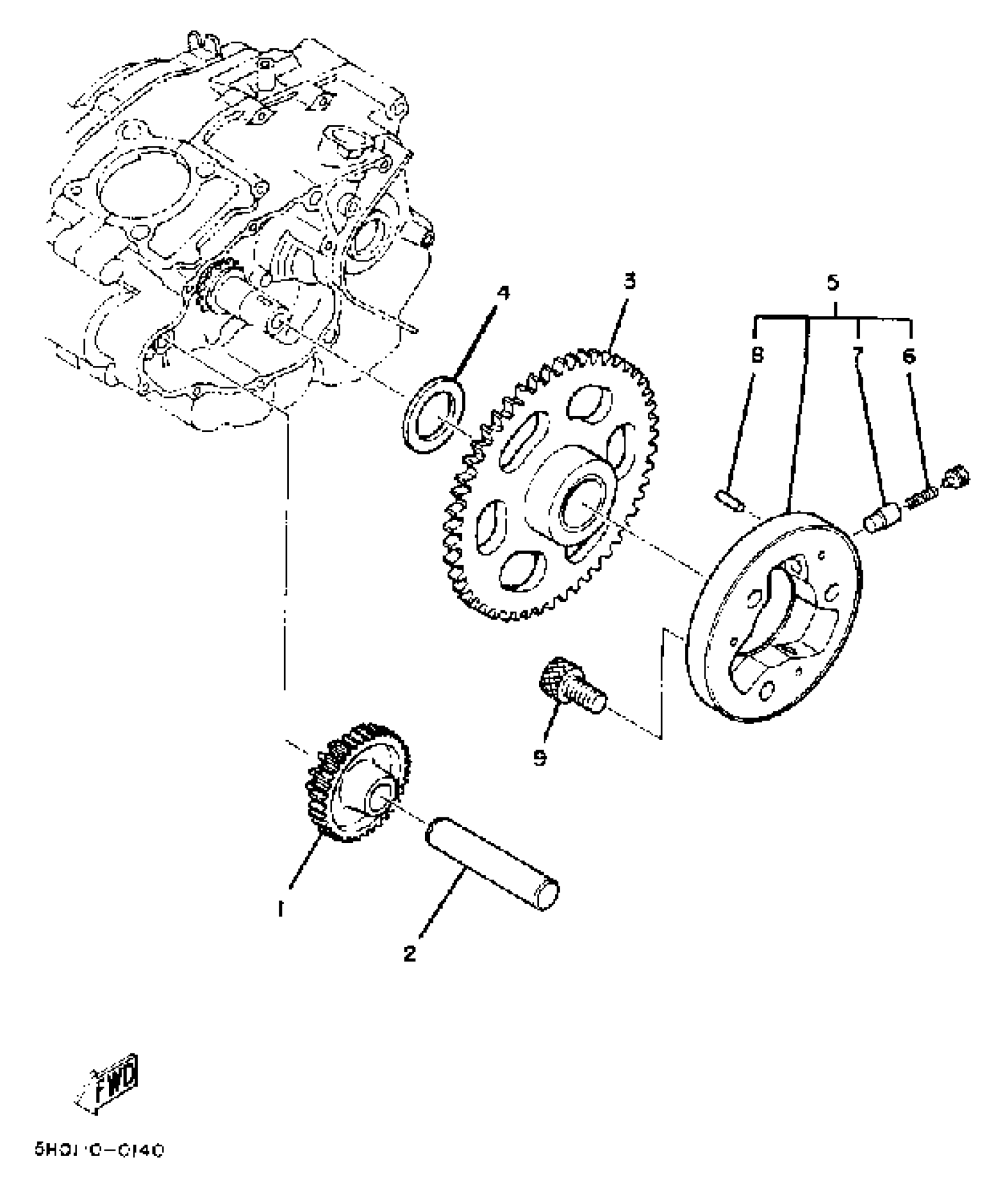

Yamaha SR185J (SR185J) 1982 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

5H0-15512-00-00

Unavailable

2

SHAFT 1

5H0-15521-00-00

Unavailable

3

GEAR, IDLER 2

5H0-15517-00-00

$145.61

4

WASHER, PLATE(1FK)

90201-256K6-00

$3.26

5

STARTER CLUTCH OUTER ASSY

4H7-15580-10-00

$151.15

6

SPRING, COMPRESSION (4H7)

90501-04596-00

$6.39

7

CAP, STARTER CLUTCH

1J7-15583-01-00

$15.49

8

PIN,DOWEL(341)

93615-12088-00

$5.25

9

BOLT, SOCKET

91317-08016-00

$5.75
