1982 Yamaha SR185J (SR185J) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1982 Yamaha SR185J (SR185J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

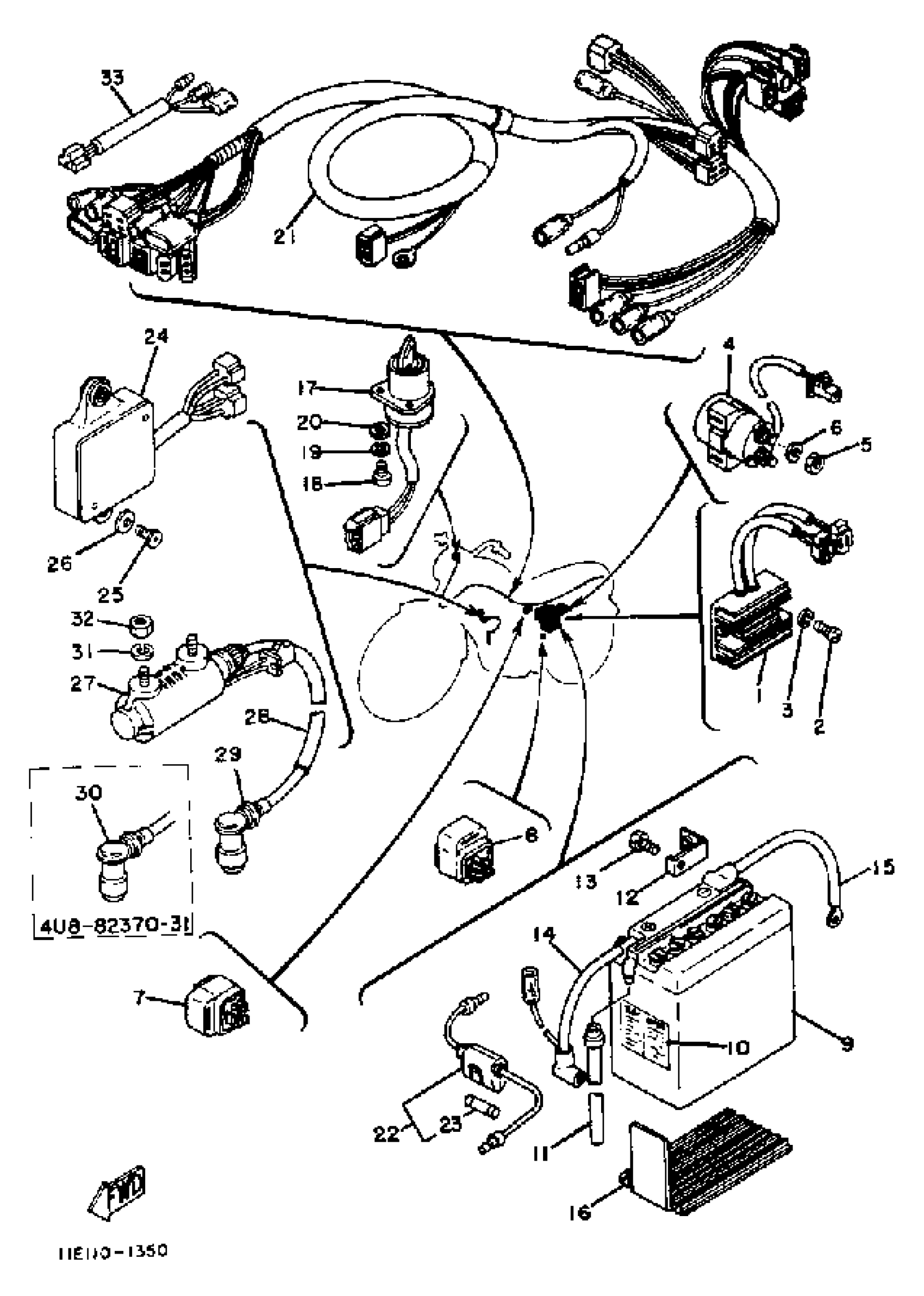

1982 Yamaha SR185J (SR185J) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RECTIFIER/REG ASSEMBLY

5H0-81960-A0-00

1
Out of stock

2

SCREW, PAN

98507-06014-00

1

$6.18

In stock

3

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

4

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

1
Out of stock

5

NUT(650)

95380-06700-00

1

$6.17

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

RELAY ASSY

12R-81950-02-00

1
Out of stock

8

RELAY ASSY

4U8-81950-03-00

—
Out of stock

9

YB7LB YUASA BATTERY

YB7-LB000-00-00

1
Out of stock

10

LABEL, BATTERY

40A-82141-G0-00

1
Out of stock

11

HOSE

(90445-08045-00)

1
Out of stock

12

TERMINAL 1

5G2-82103-00-00

1
Out of stock

13

SCREW, HEXAGON (5G2)

90153-06032-00

1
Out of stock

14

WIRE, PLUS LEAD

5H0-82115-00-00

1
Out of stock

15

WIRE, MINUS LEAD

5H0-82116-00-00

1
Out of stock

16

SEAT, BATTERY

5H0-82122-00-00

—
Out of stock

17

MAIN SWITCH ASY

5H0-82510-01-00

1
Out of stock

18

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

19

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

20

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

21

WIRE HARNESS ASSEMBLY

(5H0-82590-51-00)

1
Out of stock

22

FUSE HOLDER ASSY

2UJ-82150-02-00

—
Out of stock

23

FUSE

1A0-82161-00-00

—
Out of stock

24

IGNITOR UNIT ASSEMBLY 1

5H0-82305-M0-00

1
Out of stock

25

SCREW, BIND (J17)

98980-06020-00

—

$6.68

In stock

26

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

27

IGNITION COIL ASS''Y

3Y6-82310-60-00

1
Out of stock

28

CORD, HIGH TENSION 1

4X7-82341-00-00

—
Out of stock

29

PLUG CAP ASSY

4BP-82370-01-00

—

$30.96

In stock

30

PLUG CAP ASSEMBLY

(4U8-82370-31-00)

1
Out of stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

33

CORD, HEADLIGHT

(5H0-84359-01-00)

1
Out of stock
