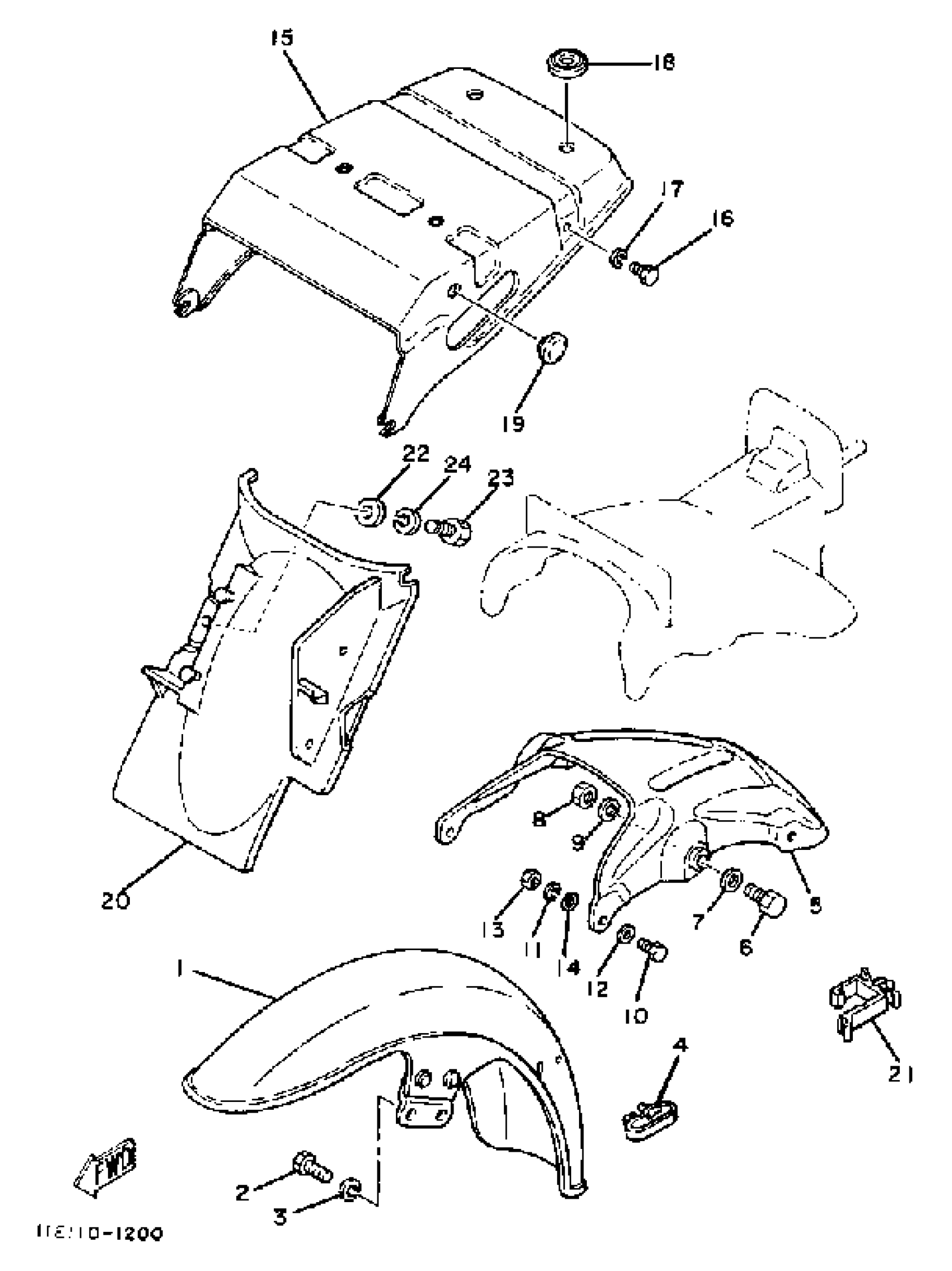

Yamaha SR185J (SR185J) 1982 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER,FRONT

5H0-21510-00-LG

Unavailable

1

FENDER, FRONT

5H0-21510-00-G6

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, CABLE

5H0-21518-01-00

Unavailable

5

REINFORCEMENT

(5H0-21670-00-00)

Unavailable

6

BOLT, HEXAGON

97017-08025-00

$10.49

7

WASHER(6TA)

92907-08600-00

$3.03

8

NUT(6L2)

95333-08600-00

$2.49

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

COVER, REAR FENDER

(11E-21651-00-00)

Unavailable

16

BOLT, HEXAGON

97013-08020-00

$1.16

17

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

18

PAD, BATTERY

371-82121-00-00

Unavailable

19

DAMPER 1

(4K9-21638-00-00)

Unavailable

20

GUARD, MUD

(5H0-21629-00-00)

Unavailable

21

CLAMP (1J7)

90464-16021-00

Unavailable

22

WASHER, PLATE

90201-06380-00

Unavailable

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable
