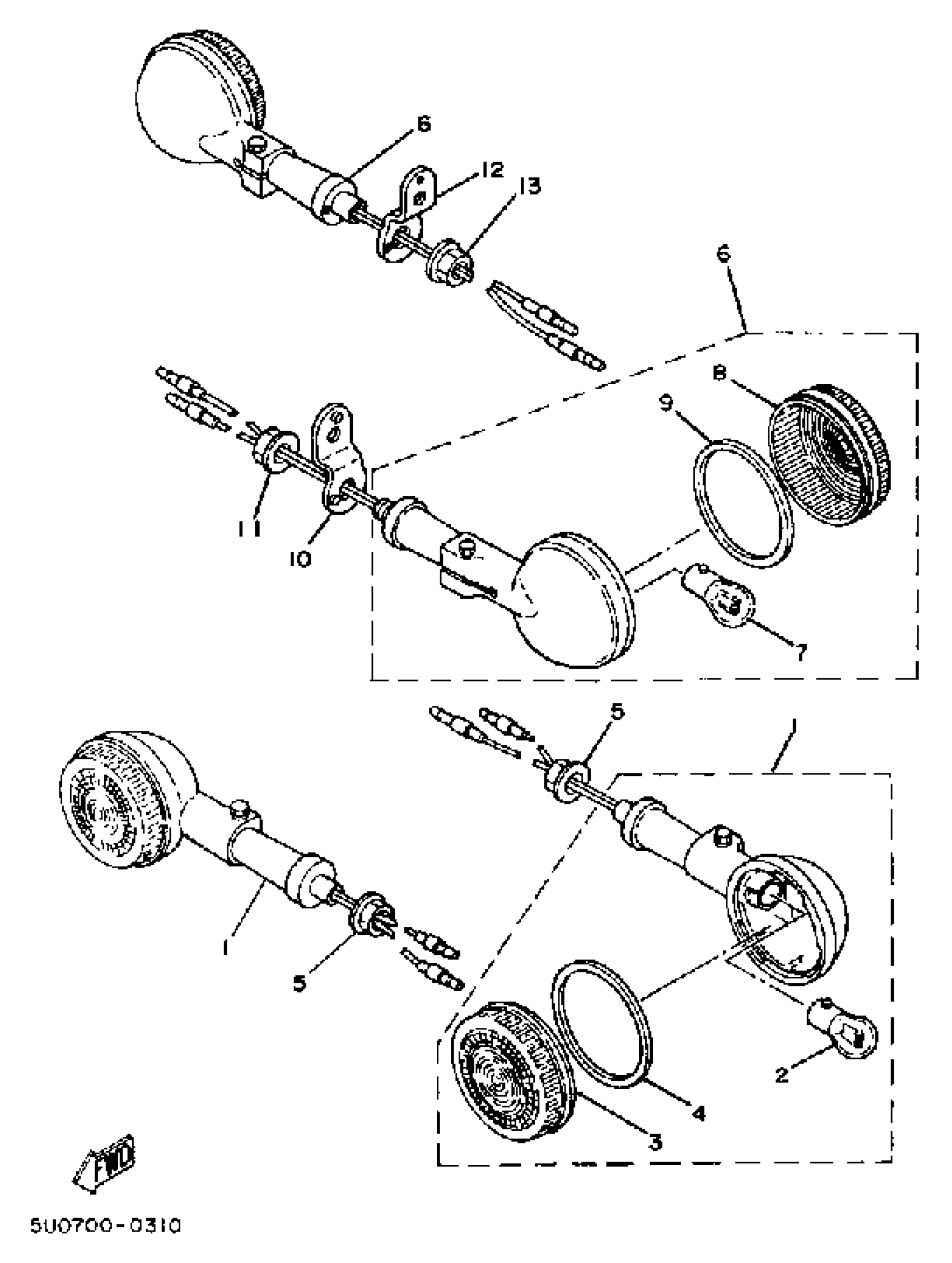

Yamaha SR185J (SR185J) 1982 FLASHER LIGHT Diagram

#

Description

Price

1

FRT FLSHR LITE ASSEMBLY

5H0-83310-70-00

Unavailable

2

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

3

LENS, FLASHER

3Y6-83312-00-00

$10.99

4

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

5

NUT(3GG)

90179-12588-00

$7.49

6

REAR FLASHER LIGHT ASSY 1

3Y6-83330-70-00

Unavailable

7

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

8

LENS, FLASHER

3Y6-83312-00-00

$10.99

9

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

10

STAY, FLASHER 1

5H0-83318-00-00

Unavailable

11

NUT(3GG)

90179-12588-00

$7.49

12

STAY, FLASHER 2

5H0-83328-00-00

Unavailable

13

NUT(3GG)

90179-12588-00

$7.49
