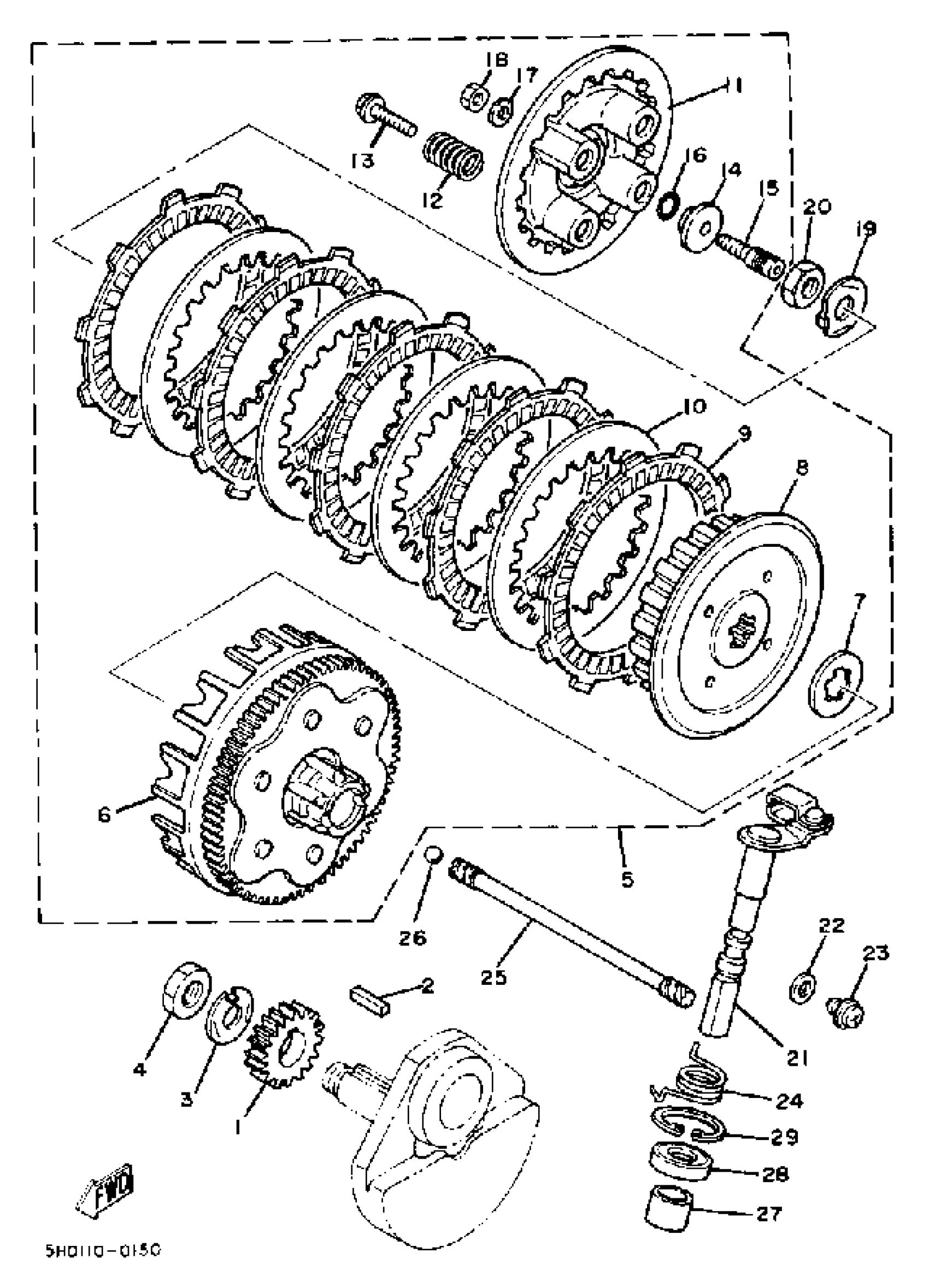

Yamaha SR185J (SR185J) 1982 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5H0-16111-00-00

Unavailable

2

KEY, STRAIGHT (5H0)

90282-05043-00

$9.49

3

WASHER, LOCK (15Y)

90215-14205-00

$8.49

4

NUT (5H0)

90170-14284-00

$9.49

5

CLUTCH ASSEMBLY

(5H0-16300-01-00)

Unavailable

6

PRI DRVN GEAR

(5H0-16150-01-00)

Unavailable

7

PLATE, THRUST 1

5H0-16154-00-00

Unavailable

8

BOSS, CLUTCH

36X-16371-00-00

Unavailable

9

PLATE, FRICTION

537-16321-00-00

$17.49

10

PLATE, CLUTCH 1

336-16324-10-00

$18.49

11

PLATE, PRESSURE 1

5H0-16351-00-00

$41.99

12

SPRING, COMPRESSION (5H0)

90501-23630-00

$12.49

13

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

14

PLATE, PUSH

1W1-16358-01-00

$23.99

15

ROD, PUSH 1

2JX-16356-00-00

Unavailable

16

O-RING (2H7)

93210-48364-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

WASHER, LOCK (25G)

90215-14186-00

Unavailable

20

NUT (5H0)

90170-14284-00

$9.49

21

PUSH LEVER ASSEMBLY

(5H0-16380-01-00)

Unavailable

22

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

23

SCREW 425163430000

90149-08067-00

Unavailable

24

SPRING, TORSION

90508-18495-00

Unavailable

25

ROD, PUSH 2

5H0-16357-00-00

Unavailable

26

BALL

93505-16006-00

Unavailable

27

BUSH (5H0)

90386-14103-00

Unavailable

28

OIL SEAL (3Y1)

93102-14209-00

Unavailable

29

CIRCLIP (3Y1)

93420-28055-00

Unavailable
