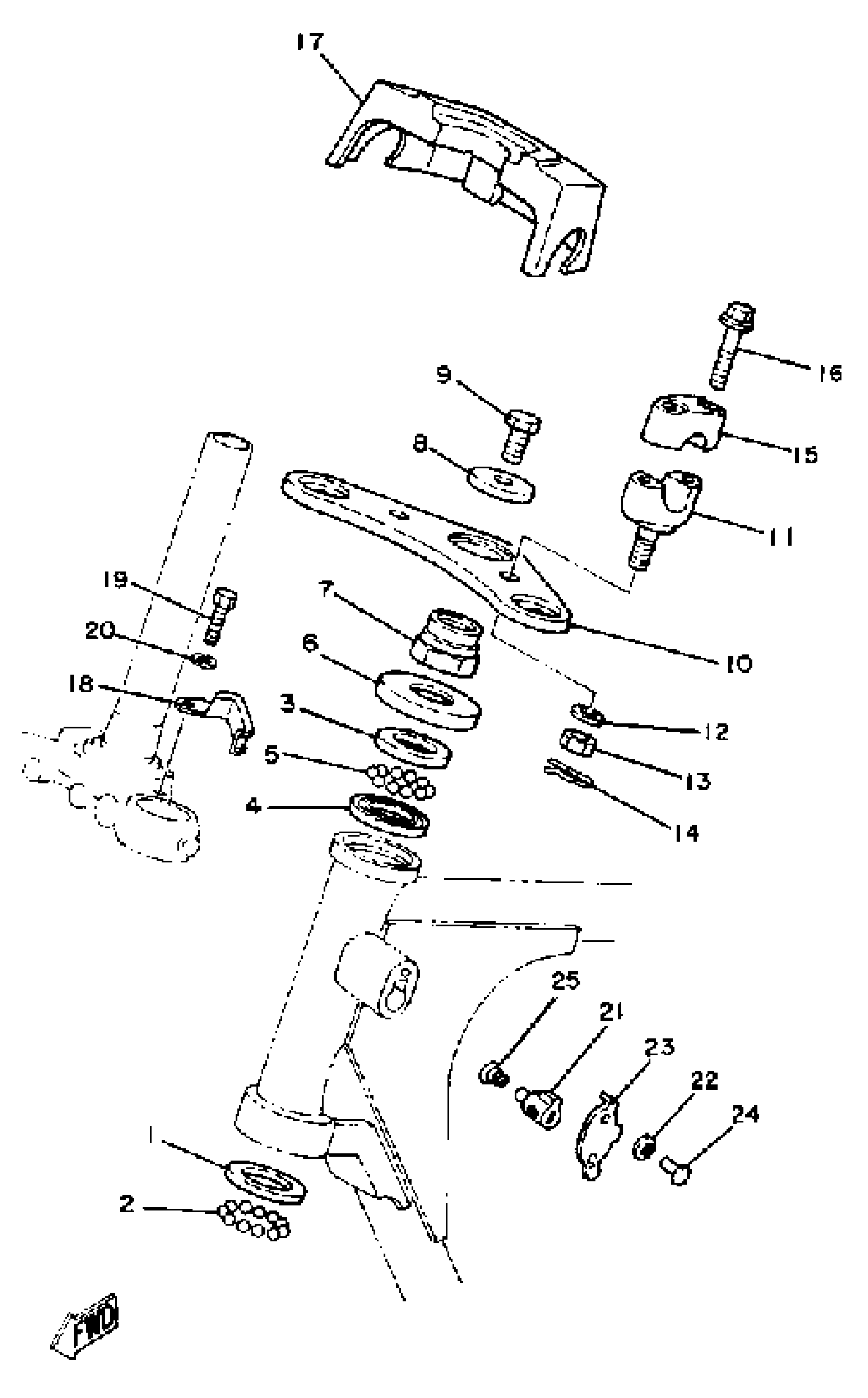

Yamaha SR185H (SR185H) 1981 STEERING Diagram

#

Description
Price

1

RACE, BALL 2

B6E-23412-00-00

$13.49

2

BALL

93501-04011-00

$8.49

3

RACE, BALL 1

BP2-23411-00-00

$11.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

BALL

93503-16003-00

$2.72

6

COVER, BALL RACE

122-23416-00-00

$7.99

7

NUT (122-23453-00)

90179-25051-00

$33.99

8

WASHER (1YJ)

90209-10160-00

$7.49

9

BOLT 1222345100

90105-10006-00

$11.49

10

CROWN, HANDLE

(5H0-23435-00-98)

Unavailable

11

HOLDER, HANDLE LOWER

5H0-23442-01-98

Unavailable

12

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

13

NUT (682)

95380-10700-00

Unavailable

14

CLIP 136253750000

90468-12006-00

$8.49

15

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

16

BOLT, FLANGE

95817-08035-00

Unavailable

17

COVER, UPPER

5H0-26213-00-00

Unavailable

18

HOLDER, CABLE

(5H0-23317-00-00)

Unavailable

19

BOLT(3JP)

97017-06010-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

STEERING LOCK ASSY

2A6-23408-00-00

Unavailable

22

WASHER, CONICAL SPRING (3J3)

90208-04029-00

Unavailable

23

CAP, HANDLE LOCK

3DM-23484-00-00

Unavailable

24

RIVET 214234830000

90269-04003-00

Unavailable

25

SPRING, CONICAL (1E6)

90502-09024-00

Unavailable
