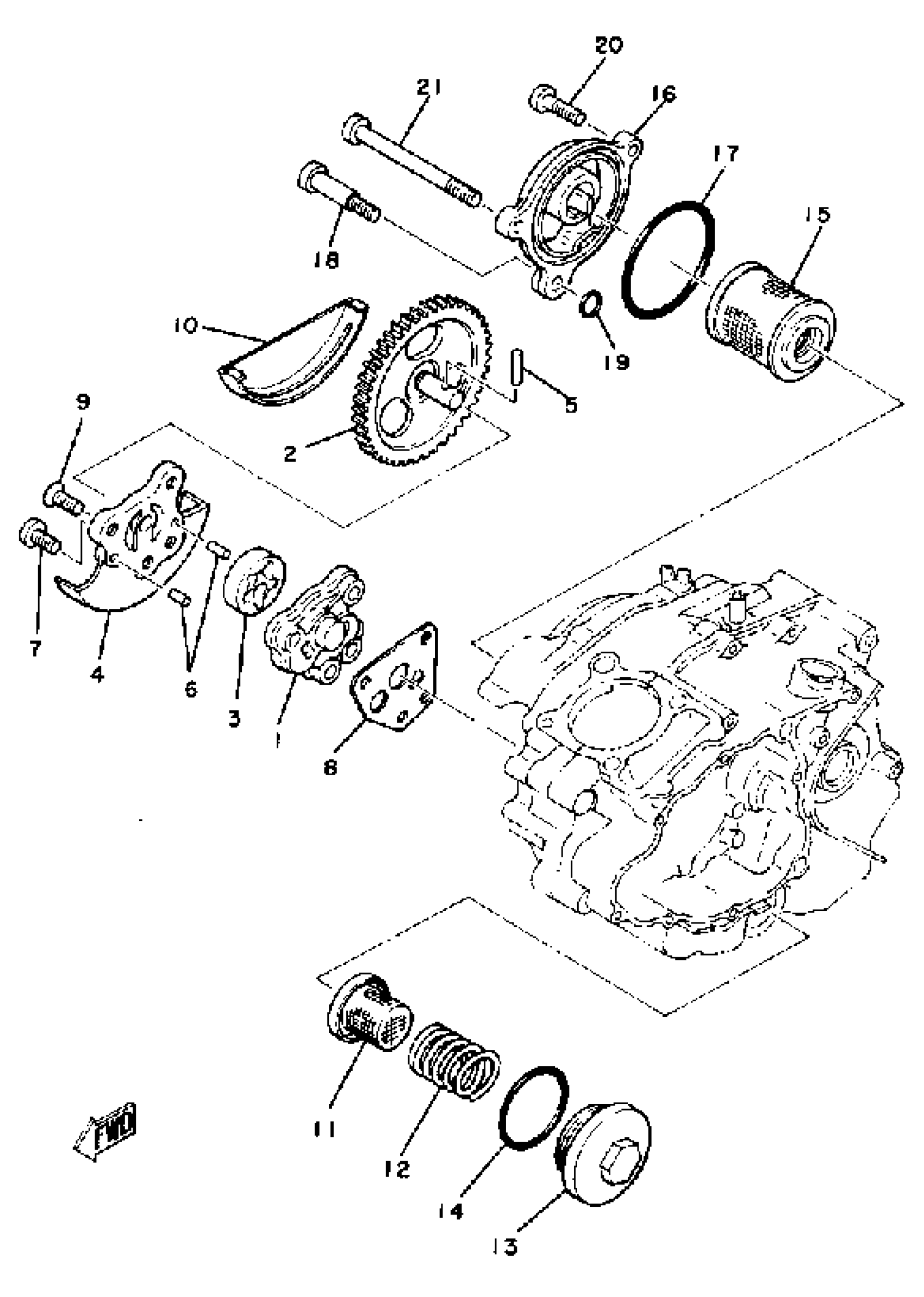

Yamaha SR185H (SR185H) 1981 OIL PUMP Diagram

#

Description
Price

1

HOUSING, ROTOR

5H0-13336-00-00

Unavailable

2

GEAR, PUMP DRIVEN 2

5H0-13326-01-00

$39.99

3

ROTOR ASSY 1

5H0-13310-00-00

Unavailable

4

COVER, PUMP

(5H0-13316-00-00)

Unavailable

5

PIN,DOWEL (137)

93603-12030-00

$2.07

6

PIN, DOWEL

93603-07073-00

$9.49

7

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

8

GASKET, PUMP COVER

3GD-13329-00-00

$7.99

9

SCREW, FLAT

98707-06030-00

$7.99

10

COVER, PUMP GEAR

5H0-13327-00-00

Unavailable

11

STRAINER, OIL

51Y-13411-00-00

$37.99

12

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

13

PLUG, DRAIN

5H0-15351-00-00

$31.99

14

O-RING

93210-347A1-00

$7.49

15

OIL CLEANER ASSY

5H0-13440-09-00

$10.99

16

COVER, OIL ELEMENT

5H0-13447-00-00

Unavailable

17

O-RING (341)

93210-54175-00

Unavailable

18

BOLT (583 OIL DRAIN)

90109-06419-00

Unavailable

19

O-RING

93210-07438-00

Unavailable

20

SCREW PAN HEAD

98580-06020-00

Unavailable

21

SCREW PAN HEAD

98580-06575-00

Unavailable
